Diaphragm Material Selection for Corrosive Service: PTFE, EPDM, FKM Explained

Introduction: Why Diaphragm Material Selection Fails in Corrosive Service

Selecting a diaphragm material for corrosive service is rarely a “compatibility chart” decision(see diaphragm valve definition on Wikipedia). Most field failures are predictable once you consider the full duty: corrosive mechanism + temperature peaks + pressure/ΔP + cycling + valve geometry and stress mode. A material can be chemically resistant yet fail early from loss of elastic recovery, contact-line damage, creep, fatigue cracking, or lining bond degradation.

This guide is written as an engineering decision framework. It focuses on the boundaries that actually control reliability, and it provides practical tools—failure mechanism mapping, a quick risk matrix, a weighted scoring template, lifecycle cost sanity checks, and an RFQ data pack—to prevent misapplication.

---

Corrosion Is Not the Only Failure Mechanism

In real corrosive duty, diaphragms fail through combined mechanisms:

• Chemical attack: swelling, hardening, embrittlement, permeability changes

• Mechanical degradation: flex fatigue, compression set, creep/cold flow, abrasion at contact line

• Thermal effects: aging acceleration, thermal cycling crack growth, bond weakening

• Operational misapplication: excessive stroke/over-travel, partial-stroke behavior that resembles throttling, unplanned cycling increases

The practical takeaway: a correct selection must satisfy chemical resistance and mechanical survivability in the valve’s actual stress mode.

---

Why Chemical Compatibility Charts Are Not Enough

Compatibility charts are useful as a first filter, but they often fail to represent:

• dynamic cycling and repeated bending

• contact-line loading (sealing line wear and recovery loss)

• temperature spikes and thermal cycling

• pressure/ΔP-driven deformation

• permeation/blistering risk (especially for layered/lined constructions)

Treat charts as “chemical screening,” then complete selection using real duty boundaries and verification planning.

Add this as a geometry-first filter: see our diaphragm valve type selection guide before locking material choices.

---

What Corrosive Media Actually Do to Diaphragm Materials

Chemical Attack vs Mechanical Degradation

Most failures are not purely chemical. Chemical exposure changes material properties; mechanical duty converts those property shifts into leaks and cracks. Typical coupled patterns include:

• swelling → sealing load drift → leakage at sealing line

• hardening/embrittlement → crack initiation → crack growth under cycling

• permeability increase → blistering → delamination (for layered/lined designs)

Swelling, Hardening, and Loss of Elastic Recovery

For valve reliability, elastic recovery is often the decisive property. When recovery drops, the diaphragm can no longer maintain stable contact stress at the sealing line, even if it looks “chemically compatible” on paper.

Field-visible symptoms often appear as:

• intermittent shut-off leakage

• increasing actuator demand / longer close time

• sealing drift after temperature swings or after extended exposure

Temperature and Pressure as Corrosion Accelerators

Temperature increases chemical reaction rates and aging speed. Pressure and ΔP increase diaphragm deformation and contact stress. When these factors stack, borderline choices fail fast.

Practical boundary definitions (use as screening triggers):

• Temperature peak: a recurring excursion ≥ +20°C above normal for ≥ 30 minutes

• High ΔP risk flag: ΔP that is repeatedly “near the top of the valve’s normal duty” or includes frequent spikes (treat as high risk when combined with cycling)

• High cycling risk flag: repeated actuation at “production cadence” (if it is not occasional isolation, treat it as cycling-driven selection)

Static Soak vs Dynamic Cycling Difference

Static soak exposure can look acceptable while dynamic service fails quickly. A diaphragm that survives immersion may still crack or lose recovery under repeated flexing and contact-line loading. Selection must be validated for the actual cycle duty and stress mode, not only chemistry.

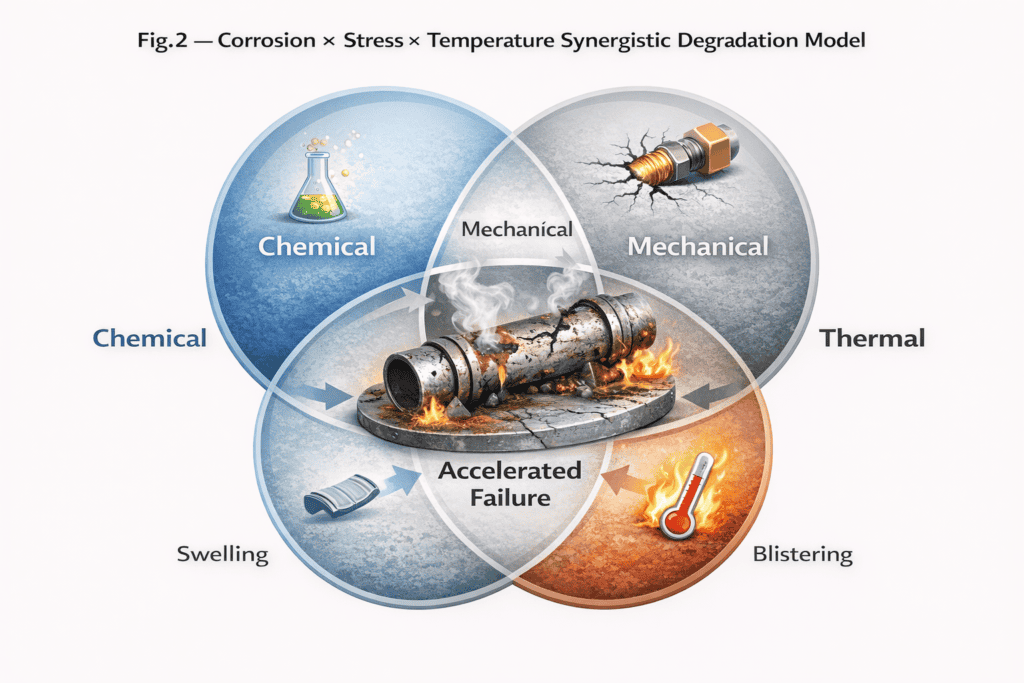

Corrosion–Stress–Temperature Synergistic Degradation (Why Failures Accelerate)

In corrosive valve service, degradation mechanisms amplify one another:

• cyclic stress opens micro-defects

• chemistry attacks defect tips and interfaces

• temperature accelerates both chemical damage and mechanical aging

• contact-line stress concentrates damage at the sealing interface

This is why “it worked during commissioning” failures are common when the selection ignored cycling, stroke setting, and geometry.

Quick 3×3 Risk Matrix (Use Before You Pick a Material)

Use this to predict the dominant failure mode before choosing PTFE/EPDM/FKM.

How to use it: locate your duty (chemical intensity × mechanical intensity). If you land in the strong chemistry + high stress corner, selection must shift toward boundary control (geometry/stroke/verification), not only “better material.”

---

Common Diaphragm Materials Used in Corrosive Media

Below, each material is presented in the same engineering structure: where it fits, what boundaries control it, and how it is misapplied

PTFE Diaphragms (Chemical Resistance First, Flexibility Trade-Off)

Where PTFE Performs Well

PTFE is often selected when chemical containment dominates and broad resistance is required. It is a common choice for aggressive chemical exposure and applications where low contamination and cleanability matter.

Engineering Limits: Flex Fatigue and Cold Flow

PTFE selection must address mechanical limitations:

• cold flow / creep under sustained sealing load

• fatigue risk under cycling, depending on valve geometry and stroke setting

• sensitivity to over-travel and excessive compression at the sealing line

Engineering note: PTFE reliability often depends as much on construction and stroke control as on chemistry. PTFE creep/cold-flow behavior is a known design consideration; refer to PTFE technical data for deformation tendencies under load and temperature.

Typical Misapplications in High Cycling Service

Common misapplications include:

• selecting PTFE by chemical chart alone in cycling duty without life planning

• using PTFE in partial-stroke behavior that resembles throttling without validated duty limits

• ignoring geometry/contact-line stress concentration (especially in weir-type designs)

Early warning signal: if actuator demand increases gradually over time and shut-off begins to drift after peaks, suspect cold flow / recovery loss, not “random corrosion.”

---

EPDM Diaphragms (Alkali and Water-Based Corrosive Media)

Chemical Compatibility Boundaries

EPDM is commonly used in many water-based and alkaline duties where elastomer resilience and sealing recovery are important. However, EPDM is not universal; it must be bounded by the actual chemistry, concentration, and temperature peaks.

Temperature and Steam Exposure Risks

EPDM performance depends strongly on temperature profile and exposure duration. Aging accelerates under heat, and thermal swings can drive hardening and recovery loss.

When EPDM Fails in Acid Service

EPDM is frequently misapplied in aggressive acidic duty. Typical outcomes:

• swelling or hardening → sealing drift → leakage at contact line

• accelerated aging under temperature peaks

• early loss of recovery in combined chemical + cycling duty

Early warning signal: “looks fine” visually but shut-off stability decreases first—recovery loss is often the leading indicator.

---

FKM (Viton®) Diaphragms (Solvents and Hydrocarbon Corrosion)

Strengths in Organic Chemicals

FKM is often selected for oils, hydrocarbons, and organic chemical environments where EPDM is unsuitable, and where temperature resistance is needed.

Limitations with Strong Acids and Alkalis

FKM selection must be bounded by the actual chemical family and concentration—strong acids/alkalis can be hard limits depending on duty.

Cost vs Service Life Trade-Off

FKM decisions should be made using lifecycle logic. In corrosive duty, the real cost driver is typically maintenance interval + downtime + consequence of leakage, not diaphragm price.

---

Rubber-Lined and Special Elastomer Options

When Lining Matters More Than Base Elastomer

Lined or layered constructions can reduce direct chemical exposure to the base material and improve performance in aggressive duty. They are often used to extend service life in harsh chemical environments and manage contamination risk.

Bonding Failure Risks in Corrosive Duty

Bond lines and interfaces can become the weak point. Typical failure signatures include:

• blistering

• delamination

• sudden loss of seal integrity after a period of stable operation

For corrosive duty, specify construction details and validation approach, not only “lined” as a generic label.

---

Advanced / Special Options (Use Only When the Boundary Demands It)

Use advanced options when standard choices fail your boundary checks:

• FFKM: for extreme chemistry and high consequence duty (typically high cost; last-resort class)

• filled/modified PTFE: to improve creep resistance and mechanical stability when cold flow is a dominant risk

• thin metal diaphragms: niche for extreme temperature/pressure or purity constraints; requires very specific design/sealing approach

---

Industry High-Risk Patterns (Quick Reference)

Use these as fast “misapplication traps” and as long-tail intent anchors.

Pharmaceutical CIP/SIP (Sanitary)

• Duty stack: caustic cleaning + steam + thermal shock + frequent cycling

• Trap: selecting EPDM for alkali but ignoring heat/thermal cycling → hardening and crack initiation

• Mitigation: define peak temperature profile and cooling behavior; verify recovery retention; tighten inspection interval

If your service is sanitary/pharma, align material choice with hygienic design and compliance requirements in our sanitary diaphragm valve guide.

Petrochemical / Refining

• Duty stack: hydrocarbons/solvents + potential sour service (H₂S) + consequence of release

• Trap: “FKM fits hydrocarbons, so it fits all petrochemical” → chemistry family and impurities drive limits

• Mitigation: request grade/compound suitability, verification records, and consequence-class decision (see Step 0)

Mining / Slurry / Abrasive Corrosive Media

• Duty stack: corrosive + solids + abrasion + sometimes cavitation/entrained gas

• Trap: focusing on corrosion only; wear exposes substrate and accelerates chemical attack

• Mitigation: define solids content/particle behavior; adopt preventive replacement cadence and inspection triggers

Microelectronics Wet Chemicals (High Purity)

• Duty stack: high-purity acids/solvents + “zero contamination” + long static closure periods

• Trap: focusing on PTFE purity but ignoring cold flow → micro-leak drift over time

• Mitigation: specify modified/filled PTFE and confirm seat/contact-line design and stroke control

---

How Valve Design Influences Diaphragm Material Choice

Material selection cannot be separated from valve design. In corrosive service, design defines stress mode, contact line behavior, and deformation ceilings.

Boundary #1: Body / Lining Must Survive First (Diaphragm Is Not the Primary Pressure Boundary)

If the body or lining fails, diaphragm selection becomes irrelevant. Treat diaphragm choice as part of the containment system, not a standalone fix.

Boundary #2: Actuator Force and Stroke Limits Set the Deformation Ceiling

Over-travel is one of the most repeatable failure accelerators:

• excessive compression at contact line → permanent set / recovery loss

• excessive stretch / bending amplitude → fatigue cracking

• mis-set stroke → shut-off instability and early leakage

Material choice must be compatible with actual stroke and load, not only catalog chemistry.

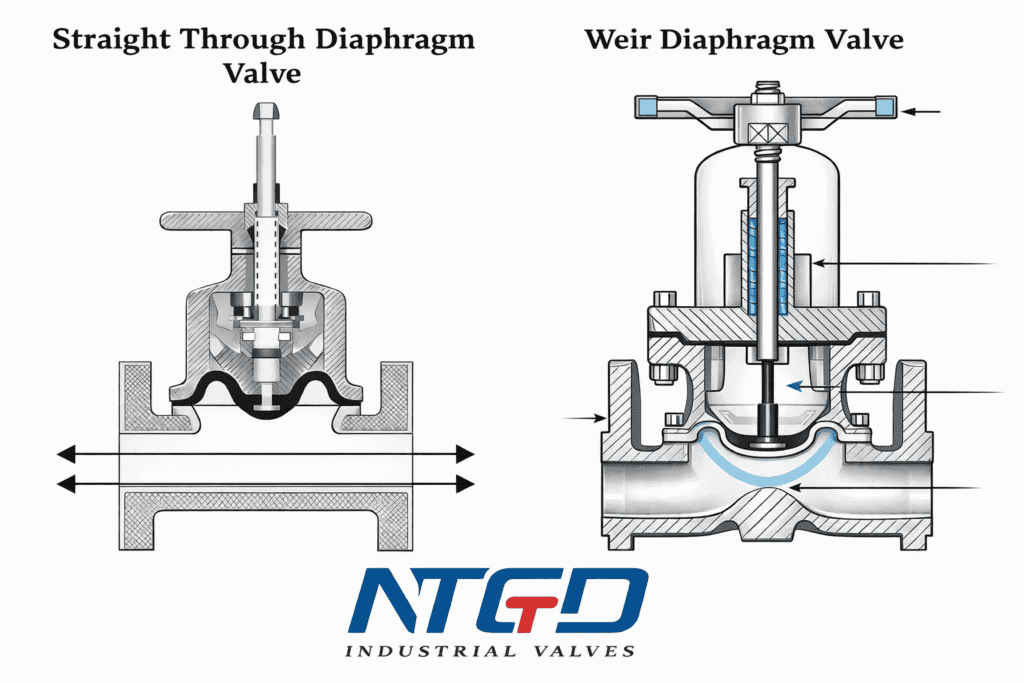

Weir vs Straight-Through Stress Mode Impact

• Weir-type: shorter stroke; stress concentrates near curvature and contact line over the weir crest (More weir-type design notes (flow pattern, sealing line behavior) are summarized in our weir diaphragm valve page).

• Straight-through: larger flex amplitude; cycle duty becomes critical; different contact stress distribution

The same material may have acceptable life in one geometry and fail early in the other.

For a practical weir vs straight-through breakdown (stress mode, stroke behavior, and typical use cases), refer to our pneumatic diaphragm valve overview.

Shut-Off Geometry and Contact Line Degradation

Contact line behavior governs leakage onset. Degradation drivers include:

• debris imprinting and fretting

• recovery loss and compression set

• local chemical attack amplified by stress concentration

When leakage appears, the root cause is often contact-line mechanics, not “mysterious corrosion.”

---

Typical Failure Scenarios Caused by Wrong Material Selection

Acid Swelling Leading to Leakage at Sealing Line

• Symptom: shut-off drift, intermittent leakage

• Mechanism: swelling + recovery loss reduces stable sealing load

• Correction: re-evaluate chemistry + concentration + temperature peaks; validate geometry stress mode and stroke limits

Embrittlement and Cracking Under Thermal Cycling

• Symptom: cracking after temperature swings, often near high-stress zones

• Mechanism: thermal cycling accelerates aging and crack growth under repeated flex

• Correction: limit thermal shocks where possible; upgrade construction/material; tighten maintenance interval

Blistering and Delamination in Lined Diaphragms

• Symptom: blisters, separation, sudden leakage

• Mechanism: permeation + interface degradation

• Correction: specify construction details, validation, and inspection triggers; do not rely on “lined” as a generic claim

Quick Failure Diagnosis Table (Copy/Paste)

---

Practical Diaphragm Material Selection Rules for Corrosive Media

Step 0: Define Failure Consequence Before You Choose Material

Selection conservatism should scale with consequence:

• minor internal seepage vs hazardous external release

• downtime cost and replacement accessibility

• regulatory/environmental consequences

High consequence duty requires tighter boundaries, verification, and monitoring.

Step 1: Define the Corrosive Mechanism (Not Just the Chemical Name)

Include:

• chemical family, concentration, impurities/contaminants

• oxidizing behavior and potential permeation risk

• presence of solids, fouling tendency, cleaning chemistry (CIP/SIP if applicable)

Step 2: Confirm Temperature, Pressure, and Cycling Together

Do not evaluate these separately. A “safe” chemical can become unsafe under temperature peaks + high cycling + high ΔP deformation.

Step 3: Match Material to Stress Mode, Not Catalog Rating

Decide based on:

• weir vs straight-through stress mode

• contact-line loading style

• actuator force and stroke control ability

• expected cycling frequency

Step 4: Use a Weighted Decision Matrix (Engineering Scoring)

Use a simple scoring model to make trade-offs explicit (weights reflect your duty). Output should be: best-fit option under your boundary conditions, not “best material.”

If you are choosing between diaphragm valves and isolation valves in corrosive, slurry, or clean service, a diaphragm valve vs gate valve performance comparison can help define the correct boundary conditions for material and geometry selection.

Engineer’s Practical Template (Copy/Paste)

Weights example (adjust by consequence):
Chemical mechanism fit 30% | Temp peaks margin 20% | Cycling/fatigue in geometry 15% | Creep/cold-flow risk 15% | Maintenance interval tolerance 10% | Cost 10%

Total score = Σ(score × weight).
If consequence is high, increase “chemical mechanism fit” and “temp peaks margin,” and reduce “cost.”

Step 5: Do a Lifecycle Cost (LCC) Sanity Check

Include:

• replacement frequency

• labor and downtime

• leak consequence costs

• inspection interval requirements

In corrosive service, LCC is usually dominated by downtime + risk, not diaphragm unit cost.

LCC Quick Template (Copy/Paste)

LCC (per year or per turnaround cycle) =
Diaphragm cost + Replacement labor + Downtime cost + Leak consequence/risk cost + Inspection cost

If you cannot quantify leak consequence, classify it (Low/Medium/High) and treat High as a hard constraint that pushes selection toward conservative boundaries + verification.

---

RFQ Checklist: What Suppliers Must Know Before Recommending a Diaphragm Material

Required Process Data

• chemical name and concentration (plus impurities if relevant)

• operating and maximum temperature (include peaks)

• pressure and ΔP (normal and worst-case)

• cycle frequency (cycles/hour or cycles/day)

Valve Design and Duty Information

• weir or straight-through (or other)

• isolation or partial-stroke behavior (if any)

• actuation type and stroke setting approach

• installation orientation and drain/cleaning expectations

Industry-Specific Mandatory Items (Add When Applicable)

• Pharma: CIP/SIP chemicals and temperatures, required sanitary compliance (FDA/USP/3A as applicable)

• Petrochemical: hydrocarbon family + impurities, sour service indicator (H₂S), fire-safe requirement (API 607 as applicable)

• Slurry/mining: solids content behavior, abrasion expectation, replacement accessibility window

Compliance & Documentation to Request (Avoid “Material-Name-Only” Selection)

Ask suppliers for documentation that matches your duty class, for example:

• traceable diaphragm construction/compound identification (batch traceability)

• validation records for lined/layered construction (interface/bond integrity evidence)

• regulated-duty compliance requirements where applicable (sanitary / fire-safe / sour service documentation requests)

Red Flags That Require Engineering Review

• unknown concentration or unknown temperature peaks

• high cycling + tight shut-off requirement without life planning

• throttling-like duty without validated limits

• lined construction without construction/validation detail

• high consequence media with incomplete data

• required compliance/certification not specified for regulated duty

---

Selection Validation and In-Service Monitoring

FAT / Commissioning Checks

• confirm stroke setting (avoid over-travel)

• baseline shut-off performance and actuator demand

• verify that actual duty matches RFQ assumptions

In-Service Indicators (Early Warning Signals)

• increasing actuator demand / longer close time

• micro-leak trend at shut-off

• visual swelling, blistering, cracking, surface roughness

• drift after temperature swings

If you need a repeatable screening test structure for elastomers in liquids, ASTM D471-type immersion testing is commonly used to quantify property change trends.

Quick Inspection Checklist (For Root Cause Feedback)

• surface changes: cracks, blistering, delamination

• recovery loss signatures: permanent set, contact-line imprinting

• dimensional change consistent with swelling/creep

• correlate findings with duty history (temperature peaks, cycling spikes)

Optional “Organization Asset” Add-On (Simple Failure Log Fields)

To prevent repeat mistakes, record each event with: fluid + concentration + temps/peaks + ΔP + cycling + valve geometry + diaphragm material/construction + time-to-failure + observed mode + corrective action + outcome.

---

Conclusion: Material Selection Is a System Decision, Not a Material Decision

Reliable diaphragm selection for corrosive service is defined by engineering boundaries: corrosive mechanism, temperature peaks, pressure/ΔP, cycling duty, valve geometry, stress mode, and failure consequence. Chemical compatibility charts can screen options, but they cannot substitute for duty-based validation.

The fastest way to reduce repeat failures is to match material + design + duty, then close the loop with commissioning checks and in-service monitoring. When duty sits near boundaries (high peaks, high cycling, high consequence, lined interfaces), treat selection as an engineering-controlled decision with documentation, verification planning, and early-warning monitoring—not as a material-name choice.

Explore more diaphragm valve engineering notes in our diaphragm valve blog hub.

---

FAQ: Diaphragm Materials for Corrosive Media (Traps & Models)

Is PTFE always the best diaphragm for corrosive chemicals?

Trap:
“PTFE is corrosion-resistant, so it is always the best choice for any corrosive service.”

Model:
PTFE is well suited for aggressive chemical environments, but it must be evaluated together with cold flow (creep), flex fatigue under cycling, stroke setting, and valve geometry–induced stress mode. Ignoring these factors often leads to sealing line drift and premature failure despite good chemical resistance.

Can EPDM handle acids in diaphragm valves?

Trap:
“EPDM is safe as long as the service is water-based.”

Model:
Acid type, concentration, and temperature peaks must be evaluated first, followed by cycling duty and sealing line load. In acid service, the most common EPDM failure mode is loss of elastic recovery, which results in internal leakage rather than immediate chemical destruction.

How does cycling affect diaphragm material life?

Trap:
“If chemical compatibility is acceptable, cycling only has a minor impact on service life.”

Model:
Cycling is a primary life-limiting factor. It must be evaluated together with stress mode, stroke limits, and deformation amplitude to define realistic maintenance intervals and spare part strategies.

What causes blistering in lined or PTFE diaphragms?

Trap:
“Blistering means poor material quality or a bad production batch.”

Model:
Blistering is commonly driven by permeation combined with temperature and pressure differentials, as well as degradation at structural layers or bonding interfaces. Root cause analysis should focus on construction design and validation methods, not just changing the material name.

When should diaphragm material be upgraded?

Trap:
“Upgrade only after failure occurs.”

Model:
When risk factors accumulate—such as high temperature, high cycling frequency, high consequence media, and boundary operating conditions—material upgrades should be implemented before failure, supported by appropriate validation and in-service monitoring strategies.
