Diaphragm Valve Body Materials Selection Guide for Corrosive and Industrial Service

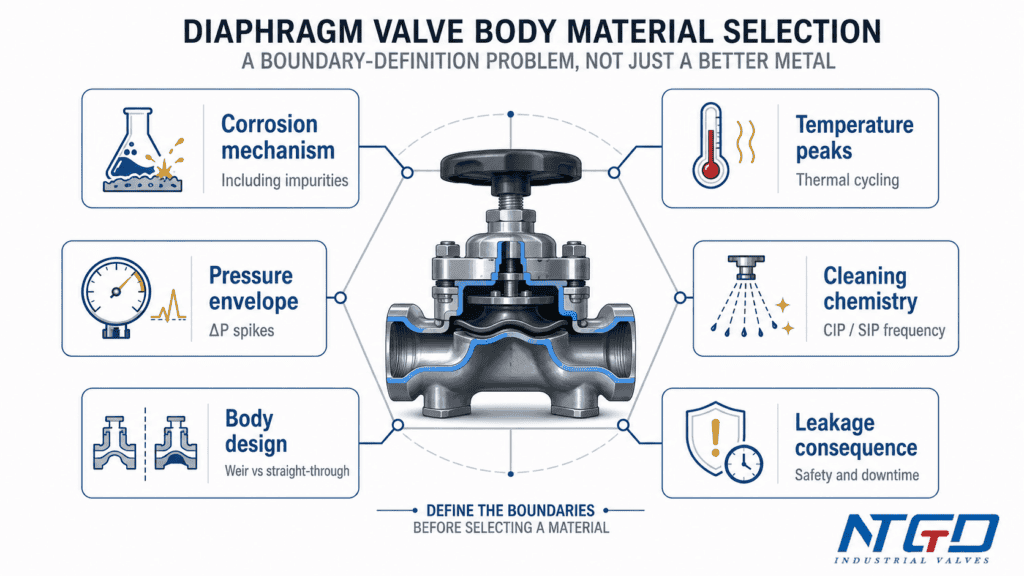

Selecting diaphragm valve body materials for corrosive and industrial service is not “pick a better metal.” It is a boundary-definition problem:

• corrosion mechanism (including impurities)

• temperature peaks and thermal cycling

• pressure envelope and ΔP spikes

• cleaning chemistry and frequency (CIP/SIP)

• body design (weir vs straight-through)

• consequence of leakage (safety, contamination, downtime)

Many repeat failures start with the wrong body or lining strategy, not the diaphragm compound itself. Body corrosion, lining delamination, or interface attack often triggers a coupled failure chain that ends in leakage, contamination, downtime, and uncontrolled TCO.

This guide provides a practical decision framework: failure mechanism mapping, a quick risk matrix, material boundary summaries, a five-step selection workflow, and an RFQ checklist designed for real procurement and validation.

---

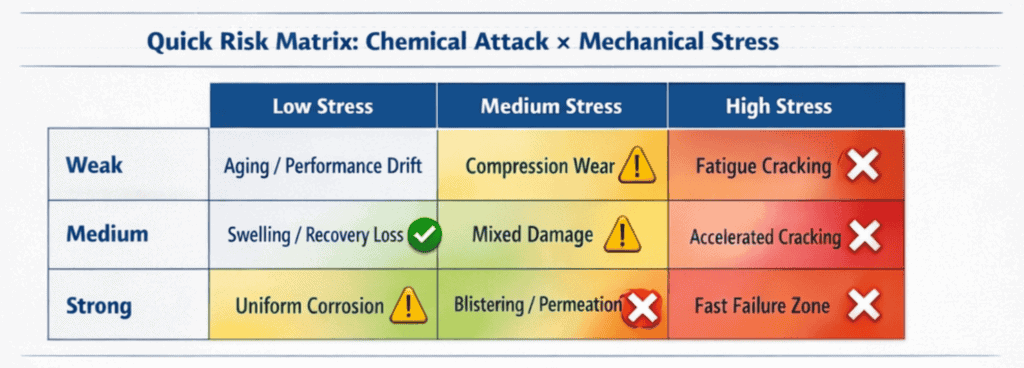

Quick Risk Matrix: Chemical Attack × Mechanical Stress (Screening Tool)

Use this matrix to predict dominant failure modes before you commit to a body material or lining strategy.

How to use (30 seconds):

1. Rate chemical attack based on media + impurities + cleaning chemistry (CIP/SIP).

2. Rate mechanical stress based on ΔP spikes, cycling frequency, solids/abrasion, and installation/piping loads.

3. Use the cell to identify the dominant body/lining failure mode and the verification focus.

Rule of thumb: if your duty lands in Strong chemistry + High stress, “better material” alone is not enough. You must control design stress mode, stroke limits, validation, and monitoring as part of selection.

---

What Engineers Use (Operational Rules)

• The body is a primary containment boundary, not a passive housing.

• Reduce repeat failures by controlling the failure chain:
  body/lining damage → interface attack → diaphragm damage → leakage

• Cleaning chemistry and cleaning frequency are design inputs, not “maintenance details.”

• Treat lined bodies as a construction system that must be validated (adhesion, permeation risk, thermal cycling), not as a material label.

• If any Red Flag is true (high consequence, extreme chemistry, frequent thermal cycling, high ΔP spikes, lined solution in critical duty), require engineering review + documentation + verification plan.

---

Why Diaphragm Valve Body Material Selection Matters

The Often-Ignored System Boundary

Engineers sometimes treat the valve body as a simple pressure vessel. In diaphragm valves, the body is part of the primary containment system: it isolates the process medium from the environment and provides the structural support and sealing geometry that the diaphragm relies on.

Body material directly affects:

• corrosion resistance of the containment boundary

• diaphragm service life (via contact-line and interface conditions)

• leakage/contamination risk

• inspection and maintenance interval

• total ownership cost (TCO): downtime + replacement + risk cost

Common Misassumptions (Root Cause of Repeat Failures)

• “If the diaphragm is chemically compatible, the valve is safe.”

• “A lining always protects the body.”

• “CIP/SIP only affects the diaphragm material.”

• “Higher-grade stainless is a universal fix.”

Core Engineering Principle

Body material selection is not a material upgrade decision—it is a system-level reliability and safety decision.

---

Failure Mechanisms Driven by Wrong Body Material Choice

Uniform Corrosion vs Localized Attack

Localized corrosion often causes surprises because it progresses invisibly until a sealing surface or wall thickness is compromised.

• Uniform corrosion: predictable thinning → loss of containment margin

• Pitting/crevice corrosion: localized deep attack → fast perforation risk

• Crevice corrosion near diaphragm interface: trapped chemistry + poor drainage → sealing surface damage

Practical implication: inspections must target interfaces, crevices, and sealing geometries, not only general body surface condition.

Stress Corrosion Cracking (SCC) as a Duty Envelope Problem

SCC is not “a stainless problem” in isolation. It emerges when three inputs align:

• susceptible metallurgy (grade-dependent)

• tensile stress (applied or residual)

• a specific chemical environment (often involving chlorides/oxidizers depending on service)

Engineering action: treat SCC as an RFQ data + boundary validation topic. If SCC risk is plausible, require:

• explicit chloride/halide and oxidizing condition disclosure

• temperature/pressure peaks and thermal cycling profile

• stress sources (assembly loads, piping loads, cyclic stress)

Lining Blistering, Delamination, and Secondary Contamination

Lined bodies fail through construction-level mechanisms:

• Permeation-driven blistering: chemistry migrates → bubbles/blisters → lining rupture

• Thermal cycling delamination: expansion mismatch → bond separation

• Secondary contamination: lining failure exposes metal → contamination/corrosion cascade

Rule: a lined solution must be specified and validated by construction details, not just “PTFE-lined” or “rubber-lined.”

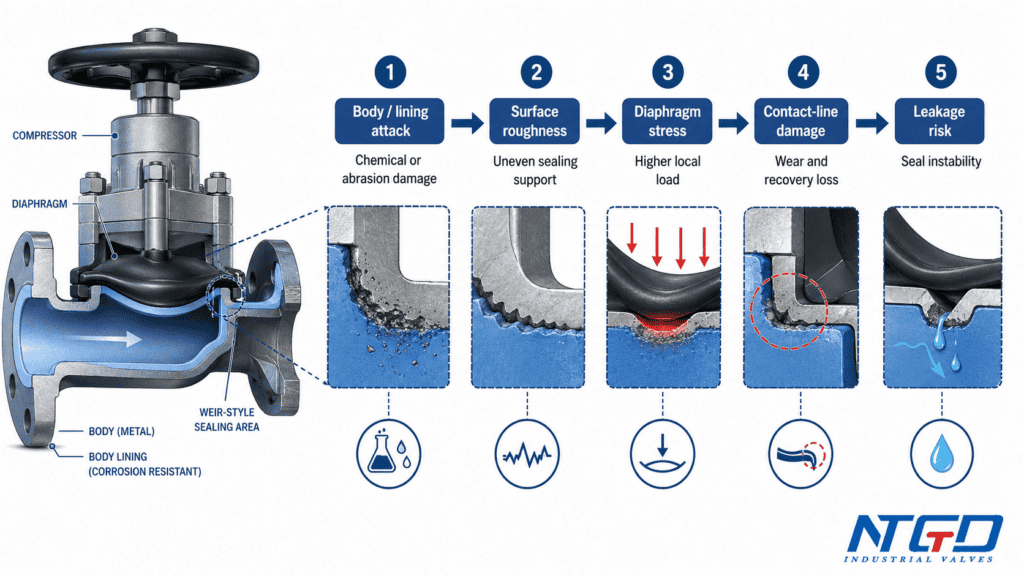

Valve Body–Diaphragm Coupled Failure Chain

Coupled failures explain why “diaphragm replacements” sometimes don’t solve leakage. To understand how diaphragm material interacts with body design and stress mode in corrosive service, see this diaphragm material selection discussion for corrosive applications.

Similar coupled failure patterns are frequently reported in industrial valve failure analyses, where misapplication and boundary violations dominate root causes.

Typical chain:

1. body corrosion / lining damage roughens sealing surface

2. contact-line stress rises → diaphragm abrasion + recovery loss

3. interface damage concentrates chemistry → accelerated attack

4. leakage appears and escalates (often after thermal peaks or cycling spikes)

Interface risks to check:

• galvanic couples (dissimilar metals + electrolyte exposure)

• trapped chemistry near diaphragm-body interface

• thermal expansion mismatch under frequent cleaning cycles

---

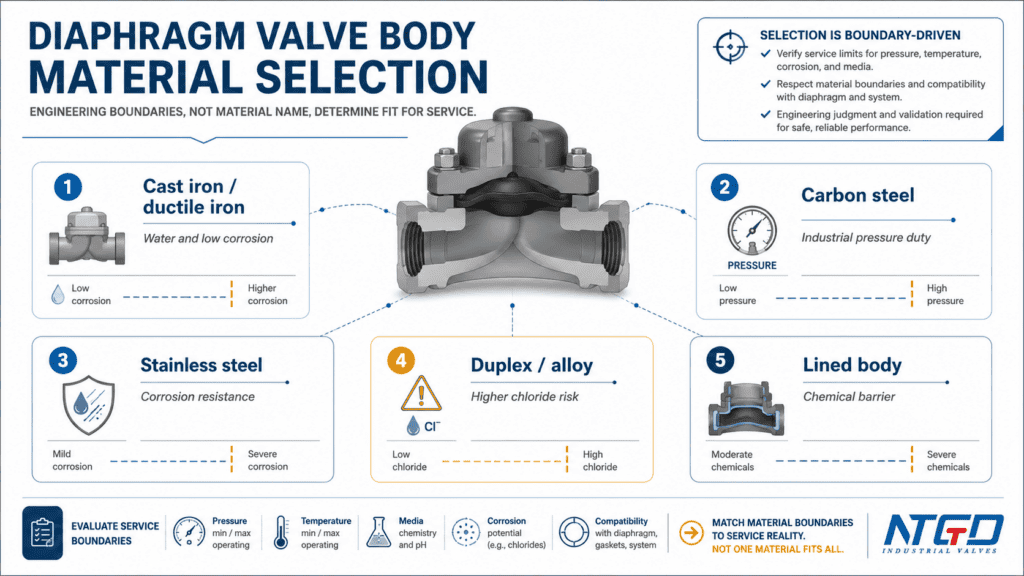

Common Diaphragm Valve Body Materials and Their Engineering Boundaries

Below format is designed for scan-reading and procurement decisions: ✅ Suitable / ❌ Avoid / Boundary drivers / TCO notes / Inspection focus.

Cast Iron & Ductile Iron

✅ Suitable: non-aggressive utilities; general service without strong cleaning chemistry
❌ Avoid: acidic/alkaline corrosive duty; hygiene-critical service; frequent CIP/SIP; significant thermal cycling
Boundary drivers: limited corrosion resistance; brittleness/thermal shock sensitivity; surface degradation under aggressive cleaners
TCO notes: low purchase cost, but poor fit in corrosive duty → replacement/downtime dominates
Inspection focus: thinning, coating breakdown, interface corrosion near crevices

Carbon Steel (WCB / LCB)

✅ Suitable: industrial pressure/temperature where chemistry is non-corrosive or reliably isolated (coating/lining/system)
❌ Avoid: direct exposure to aggressive acids/alkalis without validated protection strategy
Boundary drivers: strong mechanical envelope; chemical resistance depends on protection approach; risk escalates with temperature peaks
TCO notes: good mechanical value, but protection + maintenance cost can dominate in corrosive duty
Inspection focus: under-film corrosion, lining defects, weld/HAZ condition

Stainless Steel (304 / 316 / 316L)

✅ Suitable: many corrosive duties and hygiene-driven environments when matched to media + cleaning chemistry
❌ Avoid: “assume universal” services where localized corrosion or SCC risk is plausible without validation
Boundary drivers: passivation integrity, chlorides/halides, oxidizing chemistry, temperature peaks, stagnation/crevice conditions
TCO notes: higher initial cost can be justified by reduced downtime—if the duty envelope is validated
Inspection focus: pitting/crevice at interfaces, passivation breakdown signs, sealing surface integrity

Duplex / Super Duplex / Nickel Alloys (e.g., Hastelloy families)

✅ Suitable: boundary duty where stainless or lined solutions are risk-limited (aggressive chlorides, offshore, high consequence)
❌ Avoid: using alloys as a substitute for defining duty inputs; over-spec without consequence justification
Boundary drivers: targeted corrosion resistance; cost/lead time/traceability must be managed
TCO notes: often wins on TCO where downtime and risk dominate
Inspection focus: alloy grade traceability; monitor localized attack points rather than general corrosion

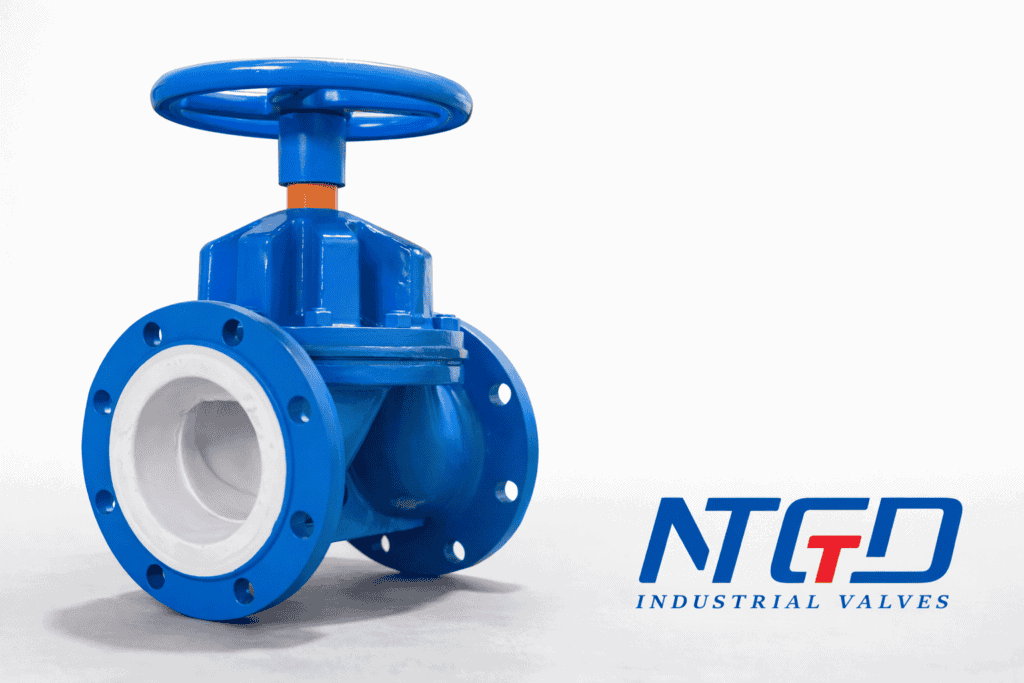

Rubber-Lined and PTFE/PFA-Lined Bodies

✅ Suitable: aggressive chemistry where lining is a proven containment strategy and inspection access is realistic
❌ Avoid: critical duty without lining validation; severe thermal cycling without construction proof; pressure/ΔP spikes without evidence
Boundary drivers: adhesion integrity, permeation/blistering risk, thermal cycling mismatch, mechanical stress at sealing line
TCO notes: cost-effective when validated; catastrophic when construction is unknown and duty sits near boundaries
Inspection focus: blistering, edge lifting, delamination near contact-line zones, permeation symptoms

A detailed overview of diaphragm valve body forms and material groupings is available in the diaphragm valve bodies introduction.

---

Core Inputs Interaction: Corrosive Media × Temperature × Cleaning Chemistry

Why Temperature and Pressure Accelerate Failure

• temperature accelerates reaction kinetics and material aging

• pressure/ΔP increases deformation and interface stress

• thermal cycling drives crack initiation and bond weakening in linings

CIP/SIP as a Design Input (Not a Maintenance Afterthought)

CIP/SIP introduces:

• chemical attack (acid/alkali/oxidizer)

• thermal shock

• frequency-driven fatigue

The impact of cleaning chemistry and hygienic design on equipment materials is addressed in hygienic engineering guidelines for clean-in-place systems.

Rule: treat cleaning frequency as a fatigue multiplier. A chemically compatible body/lining can still fail early if cleaning cycles are frequent and thermal swings are steep.

Expansion Mismatch: Body vs Lining vs Diaphragm

• mismatch drives delamination in lined bodies

• mismatch concentrates stress at diaphragm-body interface

• stagnation and poor drainage amplify localized attack

---

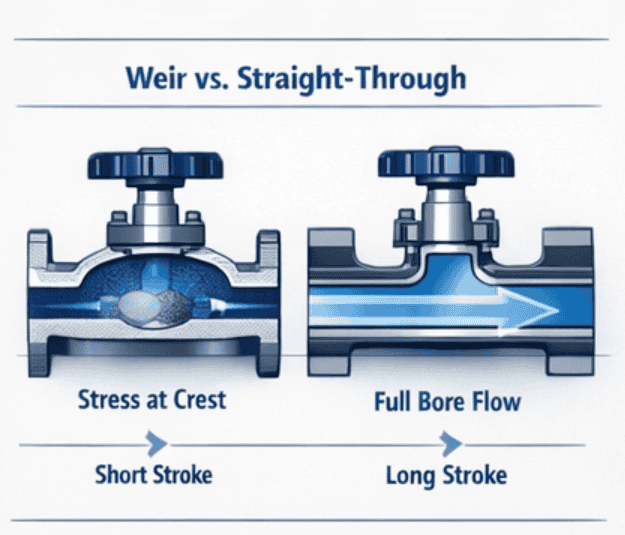

Valve Body Design Impact: Weir-Type vs Straight-Through

Stress Mode and Material Loading

• Weir-type: shorter diaphragm travel; stress concentration near weir crest and contact line

• Straight-through: larger flex amplitude; cycle duty and abrasion risk can dominate （Straight-through diaphragm valves are used where full bore flow and minimal retention pockets are required, offering specific performance benefits and risks in corrosive/abrasive service.）

Lining Integrity Risk by Structure

• weir-type often reduces wetted area but concentrates interface geometry stresses

• straight-through improves flow path but can increase lining exposure area and fatigue loading

Drainability and Cleanability

• straight-through generally drains better (useful for slurry/viscous/hygienic drainage)

• weir-type may retain small pockets → cleaning regime must be validated

For a full engineering comparison of weir, straight-through, and other diaphragm valve types that influence sealing line, flow path, and stress distribution, see the diaphragm valve types explained in this detailed guide.

---

Five-Step Practical Body Material Selection Rules

Step 1: Define the Corrosion Mechanism (Not Just Chemical Name)

Include: chemical family, concentration, impurities, oxidizing behavior, stagnation/crevice potential, solids presence.

Step 2: Confirm Temperature/Pressure/ΔP Envelope (Include Peaks)

Record normal + peak + cycling profile, including cleaning temperatures and ΔP spikes.

Step 3: Decide Lining vs Solid Alloy (Engineering Trade-off)

Evaluate: chemistry resistance, permeation/blistering risk, pressure/ΔP, thermal cycling, inspection accessibility.

Step 4: Maintenance Reality Check (Accessibility Drives TCO)

Define:

• replacement difficulty and shutdown window

• inspection method and frequency

• spares strategy (lead time, traceability)

Step 5: Validate with Standards + Documentation (Decision Confidence)

For boundary duty, require a multi-source confidence chain:

• applicable standards references (project-specific)

• supplier documentation (traceability + construction)

• comparable duty evidence or validation tests

• inspection/monitoring plan

---

RFQ Checklist for Diaphragm Valve Body Materials (Copy/Paste)

1) Mandatory Process Data

• Media composition + concentration + impurities/contaminants

• Operating temperature + peak temperature + thermal cycling description

• Pressure + ΔP (normal + spikes/surges)

• Flow behavior: velocity/turbulence; solids content; stagnation zones

2) Cleaning and Compliance Requirements

• CIP/SIP chemistry list (acid/alkali/oxidizer), temperature, frequency

• Hygiene/regulatory requirements: surface finish, traceability, compliance needs

• Any “no contamination” constraints (pharma/food/high purity)

3) Red Flags Requiring Engineering Review (If Any = Escalate)

• high consequence media (hazardous release / environmental / safety critical)

• extreme corrosive chemistry or unknown impurities

• frequent thermal cycling or high peak deltas

• high ΔP spikes + cycling duty

• lined solution proposed for critical duty without validation evidence

4) Supplier Collaboration Requirements

• material test reports (heat/batch traceability)

• lining construction details (bonding method, thickness, interface evidence if lined)

• comparable application references under similar duty class

• compliance certificates where applicable

5) Documentation & Traceability Requirements

• material grade certificates + batch traceability

• selection assumptions record (duty envelope + boundary rationale)

• validation records (tests, inspections, acceptance criteria)

6) TCO Inputs (Total Ownership Cost)

• expected maintenance interval

• replacement labor and downtime cost

• spares lead time risk

• consequence/risk classification cost (Low/Med/High)

7) Decision Confidence Requirement (Recommended for Boundary Duty)

Define what proof is required before approval:

• standards compliance + traceability

• construction validation (lined)

• comparable duty evidence

• monitoring/inspection plan at commissioning and in service

Action: If you send the RFQ data above, an engineering review can validate the boundary drivers (chemistry, cycling, ΔP spikes, design) and confirm whether a lined body or alloy body is the safer containment choice.

---

Conclusion: Body Material Selection Is a System-Level Decision

Diaphragm valve body material selection for corrosive and industrial service is defined by boundaries: corrosion mechanism, temperature peaks and cycling, pressure/ΔP deformation, cleaning chemistry and frequency, valve body design, and leakage consequence.

The most reliable outcome comes from matching material + design + duty, then closing the loop with documentation, validation, and monitoring. When duty sits near boundaries (extreme chemistry, frequent thermal cycling, high consequence, lined construction), treat the selection as an engineering-controlled decision—not a “material upgrade.”

---

FAQ (Engineer-grade)

1) Are diaphragm valve body materials selection decisions mainly about corrosion resistance?
No. Corrosion mechanism is only one input. ΔP spikes, thermal cycling, cleaning chemistry, and body design often decide whether the interface stays stable or becomes a coupled failure driver.

2) When is a lined body the right approach?
When isolation is the containment strategy and the lining construction is validated for adhesion, permeation/blistering risk, thermal cycling, and sealing-line stress.

3) Why does leakage sometimes continue after replacing only the diaphragm?
Because the driver may be upstream in the chain: body corrosion or lining damage roughens the sealing surface and concentrates chemistry at the interface, accelerating diaphragm damage again.

4) Weir type vs straight-through: which is better for CIP/SIP?
It depends on drainability, dead-legs, and cleaning profile. CIP/SIP frequency and thermal shock can dominate the interface risk regardless of valve type.

5) What RFQ inputs prevent wrong quotes the most?
Full media composition (including impurities), temperature peaks/thermal cycling, ΔP spikes/surges, CIP/SIP chemistry + frequency, and consequence classification.

6) Is “higher grade stainless” a universal fix?
No. Localized corrosion, SCC logic, crevice conditions, and interface design can defeat “better stainless” if the duty envelope isn’t defined and validated.

7) What should be verified before approving a lined solution for critical duty?
Construction details (bonding method, thickness), acceptance criteria, evidence/validation tests, and an inspection plan focused on blistering/delamination near the sealing line.
