Introduction
A diaphragm valve diagram is usually a sectional or cutaway drawing that shows three engineering-critical features at a glance: the flow geometry, the shut-off interface, and the force path from the actuator to the diaphragm. Unlike many other valve types, the diaphragm is the only moving sealing element in contact with the process media, so the diagram is often the fastest way to confirm what is wetted, what is isolated, and where sealing actually occurs.
For engineers, buyers, and maintenance staff, a good diaphragm valve drawing is more than a parts illustration. It helps answer practical questions before any detailed datasheet review:
-
where sealing occurs
-
where stress is likely to concentrate
-
how the body geometry affects flushing or solids retention
-
which parts are most likely to wear first
-
what should be checked before replacement, troubleshooting, or RFQ review
This guide is written to help you read a diaphragm valve diagram more efficiently, compare weir and straight-through designs, interpret typical labels and callouts, and use the drawing for selection, leakage diagnosis, replacement planning, and project communication.
Diaphragm Valve Diagram Basics
Diagram Overview: What You Are Actually Looking At
Most diaphragm valve diagrams are shown as sectional views, sometimes paired with a partial cutaway or an exploded assembly view. The purpose is not visual styling. It is to expose the internal arrangement so you can identify:
-
the flow path — where the fluid travels
-
the shut-off interface — where sealing occurs
-
the force path — how closing load reaches the diaphragm
-
the service interfaces — what must be loosened, inspected, or replaced during maintenance
A real sectional drawing should clearly show a “sliced” valve body, internal cavities, the diaphragm boundary, and the relationship between the body, bonnet, compressor, and stem. If the drawing does not make these relationships visible, it is not very useful for engineering review.
For a broader overview of design logic and function, see our guide to diaphragm valve working principle, construction, and applications
Key Components Shown: Map Before Details
Before reading each part individually, separate the diagram into three functional groups.
1) Pressure Boundary Components
-
valve body
-
bonnet / cover interface
-
bolting and clamping structure
These form the pressure-containing outer structure of the valve.
2) Sealing and Isolation Components
-
diaphragm
-
shut-off zone
-
weir crest or seat line
These determine where media is isolated and how shut-off is achieved.
3) Force-Transfer Components
-
stem
-
compressor / diaphragm plate
-
actuator interface
These show how actuator load becomes diaphragm compression.
Field reading tip: The fastest way to understand a diaphragm valve drawing is to trace three paths with your finger: pressure boundary → sealing line → force path. In actual troubleshooting, that usually reveals the likely problem area faster than starting with a long datasheet or parts list.
How to Read a Diaphragm Valve Diagram: Practical Cues
Identifying Flow Direction
Many drawings mark flow direction with arrows or labeled inlet and outlet ports. If arrows are absent, direction can still be inferred from port locations and flow passage geometry.
Reading cue: Confirm inlet and outlet by labels or callouts. Do not assume direction based only on how the drawing is rotated on the page.

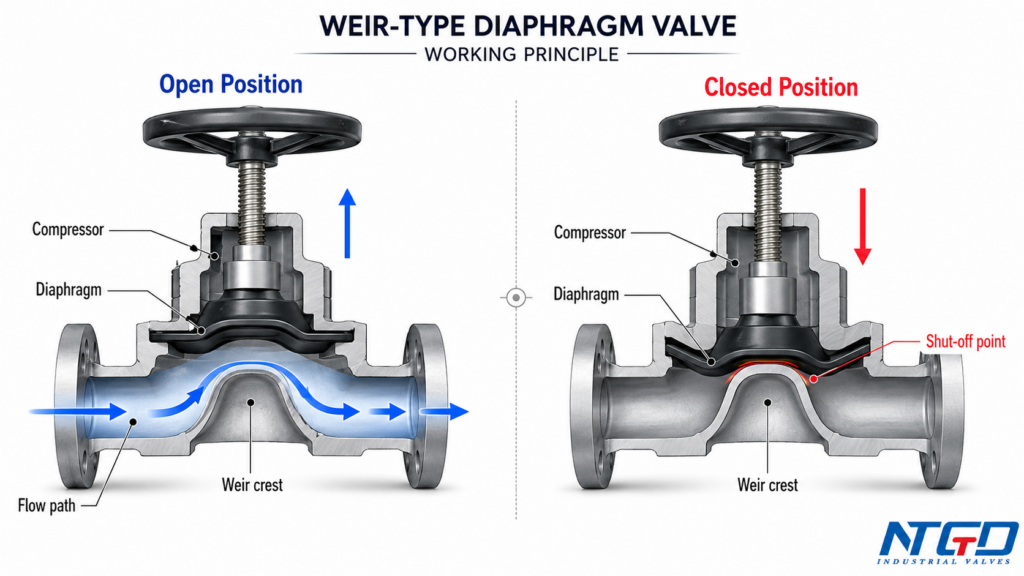

Recognizing Open vs Closed Positions
Some drawings show only one position. Others include both open and closed states.
-
Open: diaphragm lifted, flow passage unobstructed
-
Closed: diaphragm deformed against the weir crest or seat line, creating a sealing line
Engineering warning: In practice, many failures first described as “seat damage” turn out to be travel-setting, stroke calibration, or over-compression issues. The diagram helps separate what actually moves from what does not.

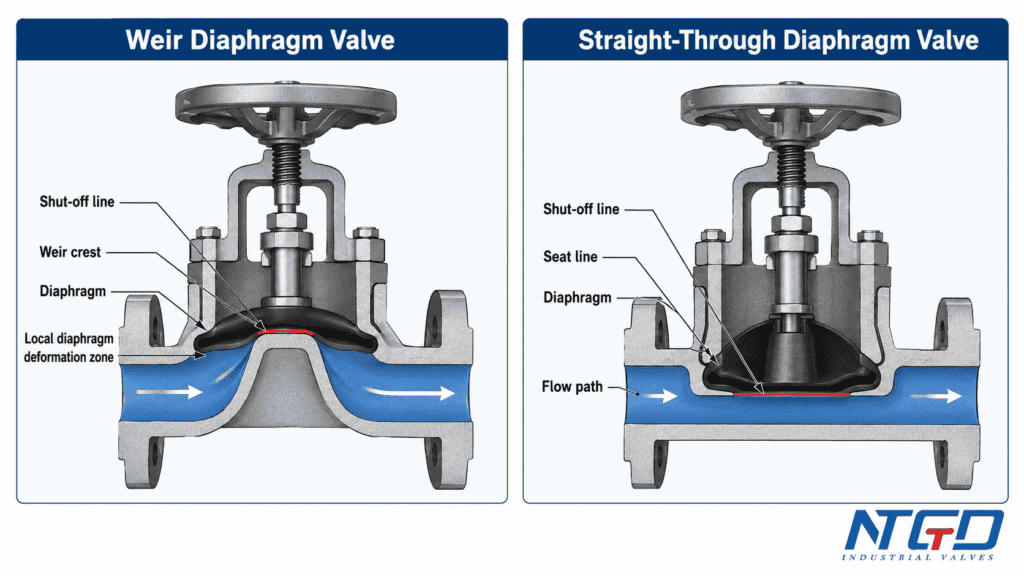

Locating the Shut-Off Interface
The shut-off interface is where sealing performance is won or lost.
-
Weir type → sealing at the weir crest
-

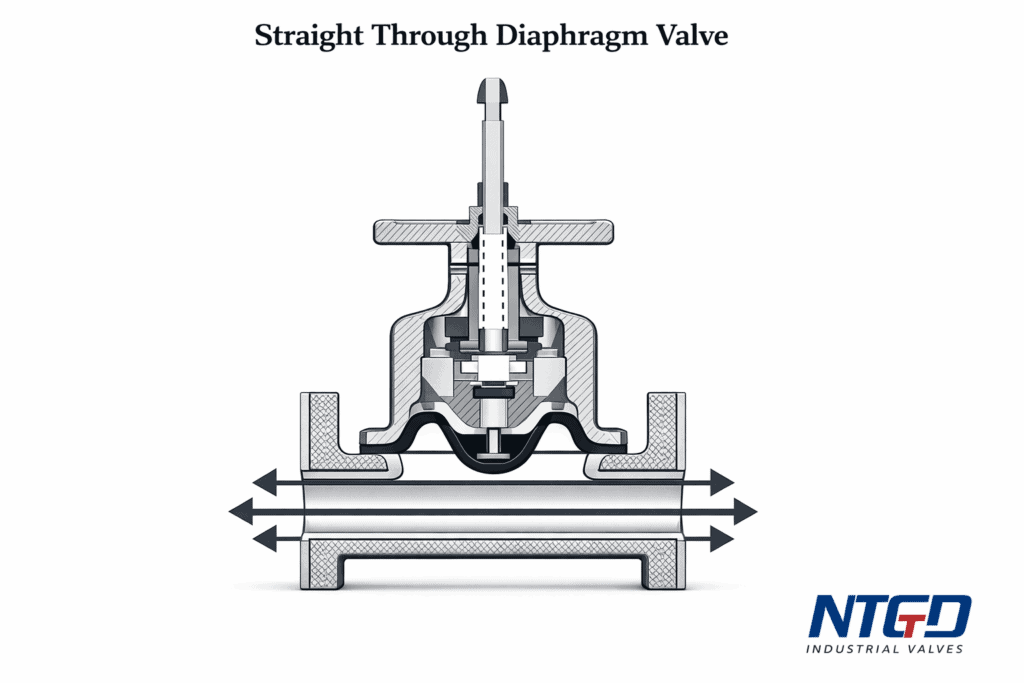

Straight-through type → sealing at the seat line in the lower flow channel
This contact line is the first inspection point when internal leakage is reported.
Diaphragm Valve P&ID Symbol and Drawing Context
A P&ID symbol and a sectional valve drawing do not serve the same purpose, especially when compared with broader process-diagram conventions published by organizations such as ISO.
-
A P&ID symbol shows the valve’s functional place in the line and control logic.
-
A sectional or cutaway drawing shows body geometry, diaphragm position, sealing location, and service interfaces.
That distinction matters. A project engineer may use a P&ID symbol to identify valve type in the process line, but a maintenance engineer or buyer needs the sectional drawing to understand clamping geometry, shut-off arrangement, and replacement logic.
Figure 2: Typical diaphragm valve P&ID symbol and its relationship to a sectional valve drawing
ALT: diaphragm valve P and ID symbol compared with sectional valve drawing
What to Check First When Comparing Two Diagrams
Start with two things:
-
flow path shape — does the body geometry create pockets or promote flushing?
-
shut-off geometry — where exactly does the diaphragm contact the body?
Those two features predict flushing behavior, diaphragm flex pattern, fatigue risk, and maintenance frequency.
Standards Compliance and What the Diagram Helps You Verify
A diaphragm valve diagram does not replace a certified drawing, pressure test record, material certificate, or project document package reviewed against standards such as MSS requirements. It does, however, help engineers check whether the basic construction logic and layout are consistent with the standards commonly reviewed during design and procurement.
| Standard | What It Helps Verify | Where to Check in the Diagram |
|---|---|---|
| MSS SP-88 | General diaphragm valve construction logic | diaphragm position, shut-off zone, body / bonnet relationship |
| ASME B16.34 | Pressure boundary review logic | body wall section, cover interface, structural outline |
| ASME B16.5 | Flanged connection interface, where applicable | flange area, bolting layout, end connection form |
| EN 558 | Face-to-face dimensional review, where applicable | end-to-end layout in dimensional drawings |
| Project / hygienic spec | Suitability for service-specific review | wetted boundary, isolated upper works, dead-space-sensitive zones |
A general diagram supports review. It does not replace certified compliance documentation.
For official standards reference, see the MSS organization for diaphragm valve standards and ASME codes and standards for pressure-boundary requirements.
Diagram Callouts and Labeling Conventions (Valve-Context Only)
Component Names and Item Numbers
Typical mapping:
| Item No. | Component | Function |
|---|---|---|
| 1 | Valve body | Pressure boundary / flow passage |
| 2 | Diaphragm | Sealing + isolation |
| 3 | Diaphragm plate / compressor | Load distribution |
| 4 | Stem | Force transmission |
| 5 | Bonnet / cover | Structural support |
| 6 | Actuator | Manual / pneumatic / electric drive |
Always match item numbers to the actual parts list before ordering replacements. Diaphragms that look similar at a glance may differ in clamping geometry, backing structure, insert design, or connection style.
Interpreting Diaphragm Material Notes
Some drawings specify materials such as EPDM, PTFE, or other elastomer / lining combinations.
A diagram may identify material, but it does not define compatibility, allowable temperature, cycle life, vacuum suitability, or chemical resistance by itself. Those must be confirmed by the product datasheet and service conditions.
For deeper material review, see our diaphragm valve material selection, construction, and service life guide.

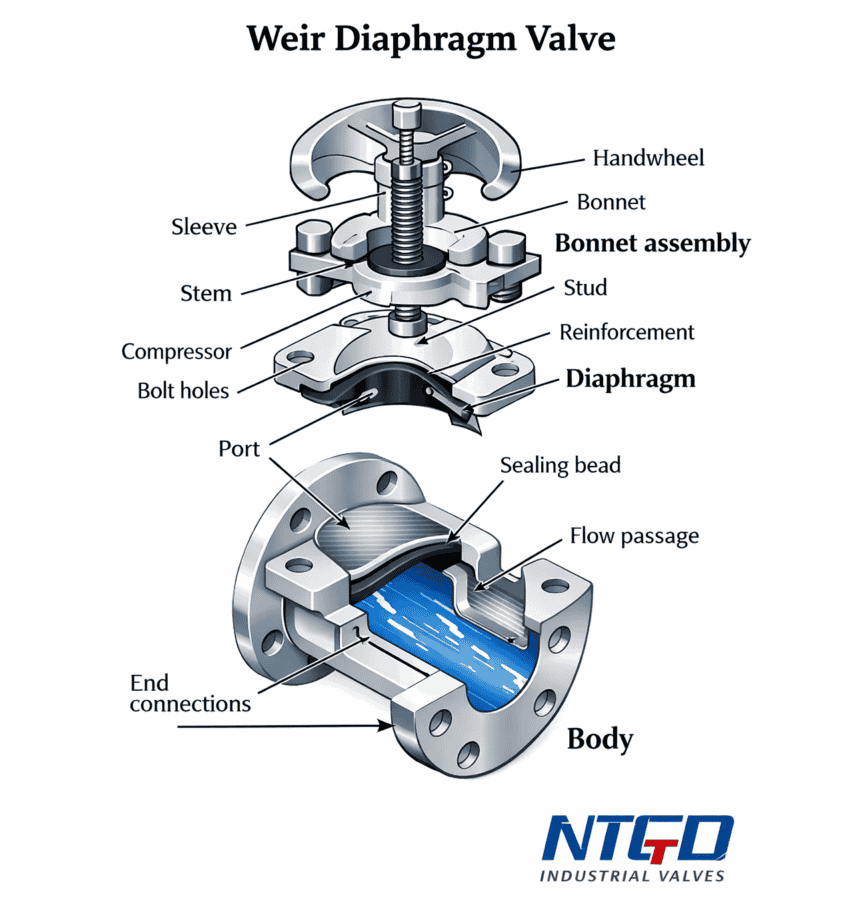

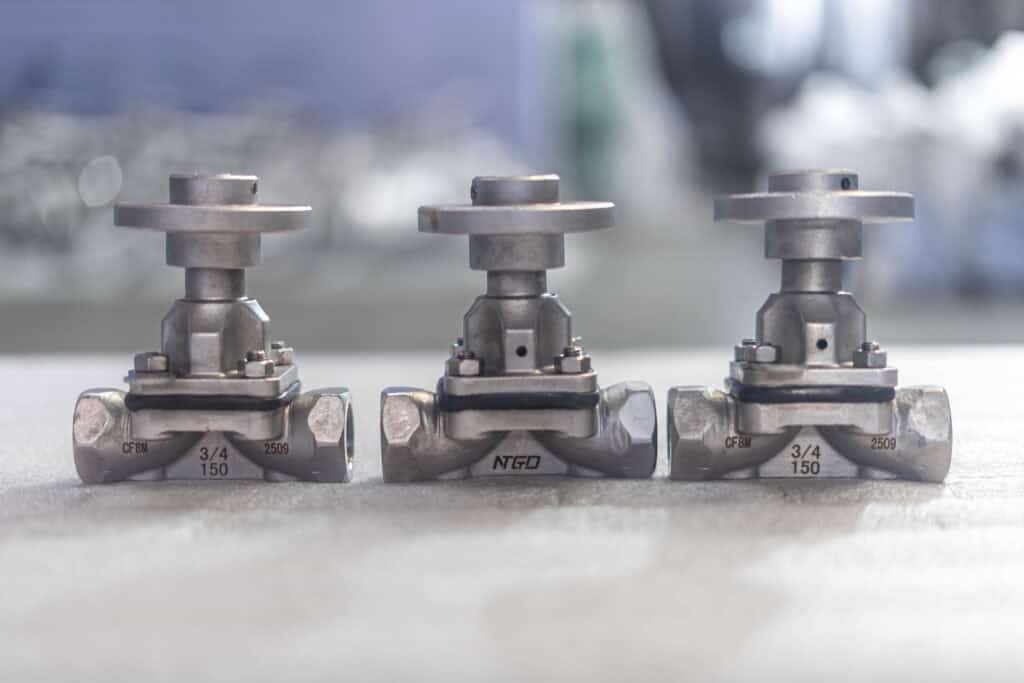

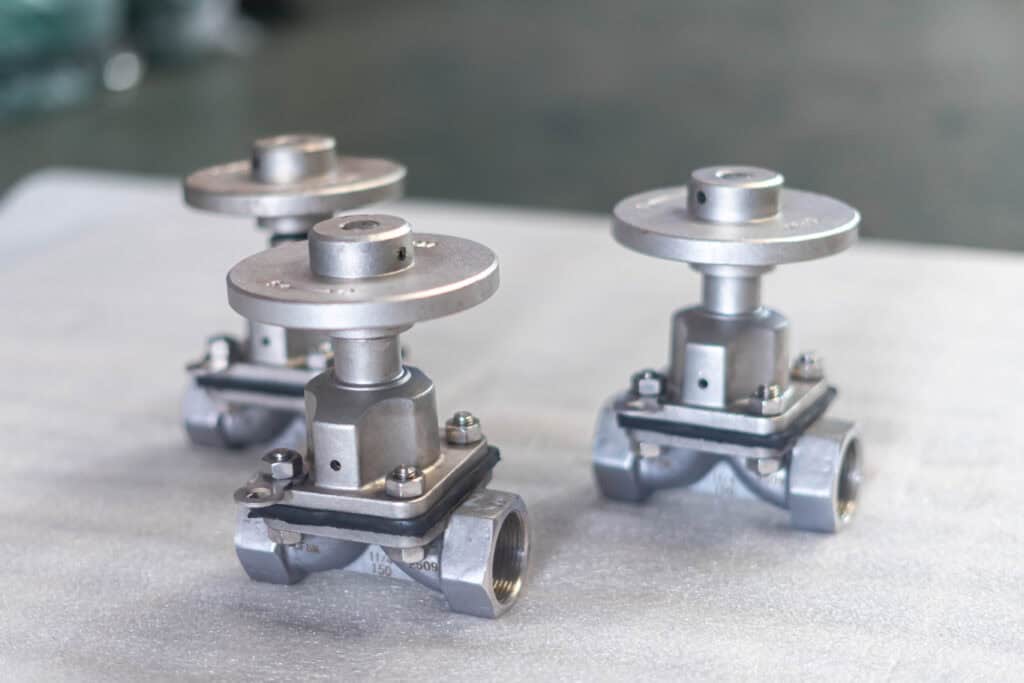

Diaphragm Valve Parts and Structure
Each part below is explained in the same way: function → diagram appearance → service implication.
Valve Body
Function: Forms the pressure boundary and defines the flow geometry.
Diagram cues: Thick outer boundary, visible internal passage, weir crest or open channel shape.
Service implication:
-
internal pockets can increase solids retention risk
-
sharp changes in direction can concentrate erosion
-
body geometry often tells you more about flushing behavior than a marketing description does
Diaphragm
Function: The only moving seal in direct contact with the media.
Diagram cues: Flexible membrane shape, clamp edge, sealing contact line.
Service implication:
-
high curvature zones are fatigue drivers
-
excessive deflection indicates over-travel risk
-
clamp-edge support strongly affects service life
Field service note: One of the most common reading mistakes is ignoring the clamp edge. In a proper design, the diaphragm edge should be fully supported by the body and bonnet interface. Poor support or incorrect fitment can shorten life dramatically in cyclic service.
→ See our diaphragm material selection guide for PTFE, EPDM, and FKM service.

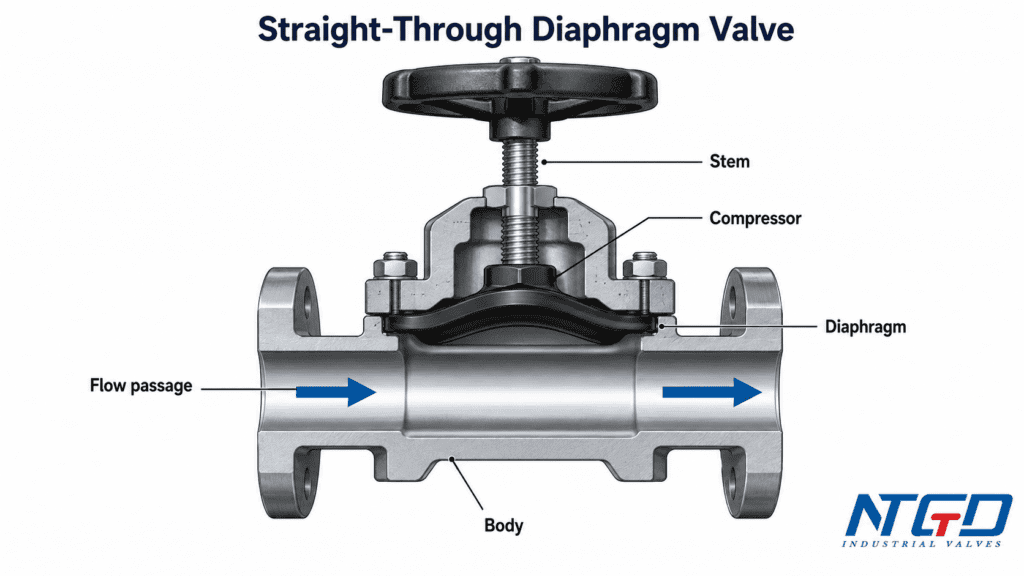

Weir / Straight-Through Passage (Shut-Off Geometry)
Function: Determines where sealing occurs and how flow is interrupted.
Diagram cues:
-
a weir crest vs an open channel
-
clear position of the contact line
Service implication:
-
weir type → shorter diaphragm travel, more defined shut-off geometry
-
straight-through type → improved flushing, but usually more diaphragm flex
For a broader selection framework, refer to our weir vs straight-through diaphragm valve selection guide.
Diaphragm Plate (Compressor)
Function: Distributes load from the stem to the diaphragm.
Diagram cues: Rigid plate above the diaphragm, usually centered under the stem connection.
Service implication: Uneven load distribution can create localized diaphragm damage even when the body and shut-off line look acceptable.
Stem and Connection Interface
Function: Transfers force and controls stroke.
Diagram cues: Stem alignment, movement path, connection to compressor, end-stop hints.
Service implication: Misalignment or excessive travel often shortens diaphragm life before the body or shut-off geometry becomes the problem.
Bonnet / Cover
Function: Provides structural support and service access.
Diagram cues: Clamp line, bolting pattern, interface surfaces.
Service implication: This is a primary inspection zone when external leakage is reported around the upper assembly.

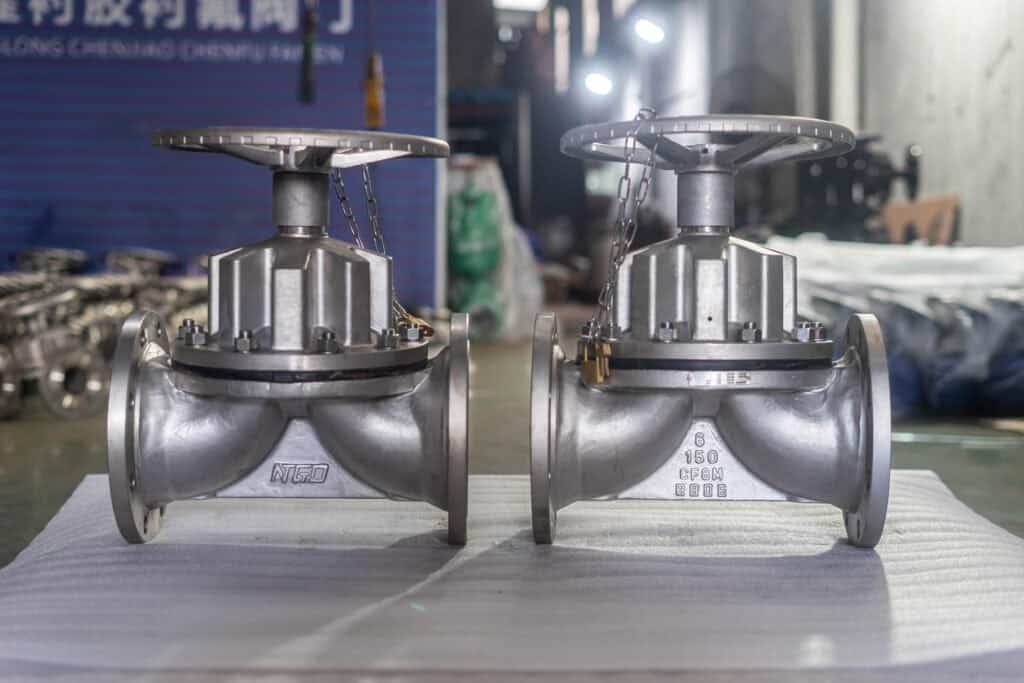

Actuator Types
-
Manual: sensitive to operator force and over-torque
-
Pneumatic: cycle frequency and stroke setting matter
-
Electric: calibration and end position control are critical
→ See pneumatic diaphragm valve actuator options and application guidance.
How the Parts Work Together: Diagram-Guided Sequence
Closing Sequence
Actuator → stem → plate → diaphragm → shut-off interface
Shut-off should occur at the intended sealing line, not through unintended distortion elsewhere in the diaphragm.
Opening Sequence
Stem retracts → diaphragm unloads → flow path re-opens
If the drawing suggests a clean force path but the valve feels sticky in service, look for buildup, alignment issues, or incorrect stroke setting.
Flow Control Boundary
Diaphragm valves are primarily isolation valves. Extended throttling concentrates bending stress and typically reduces diaphragm life.

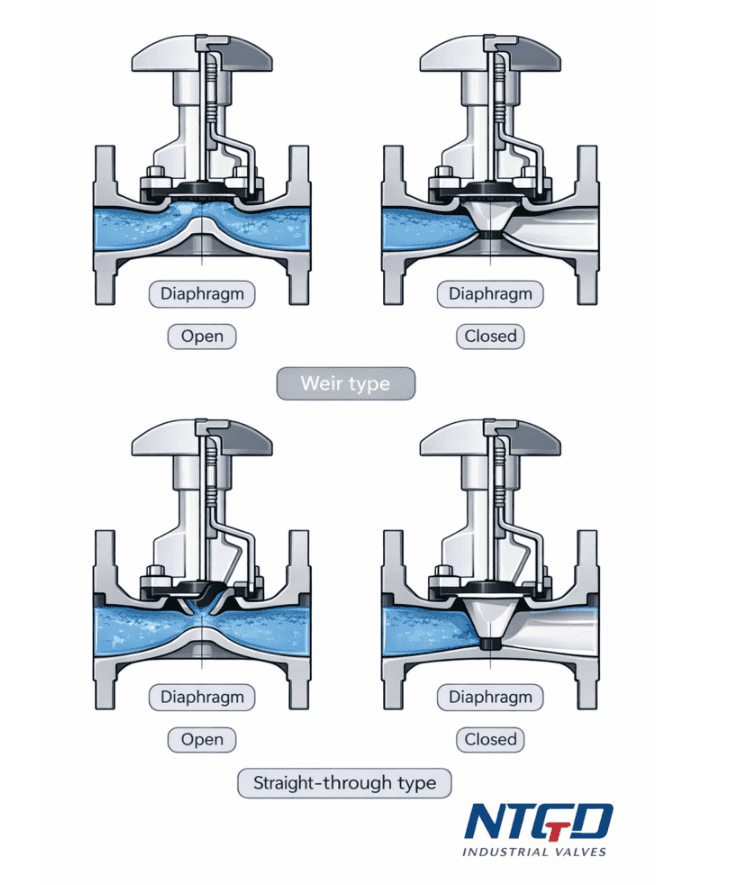

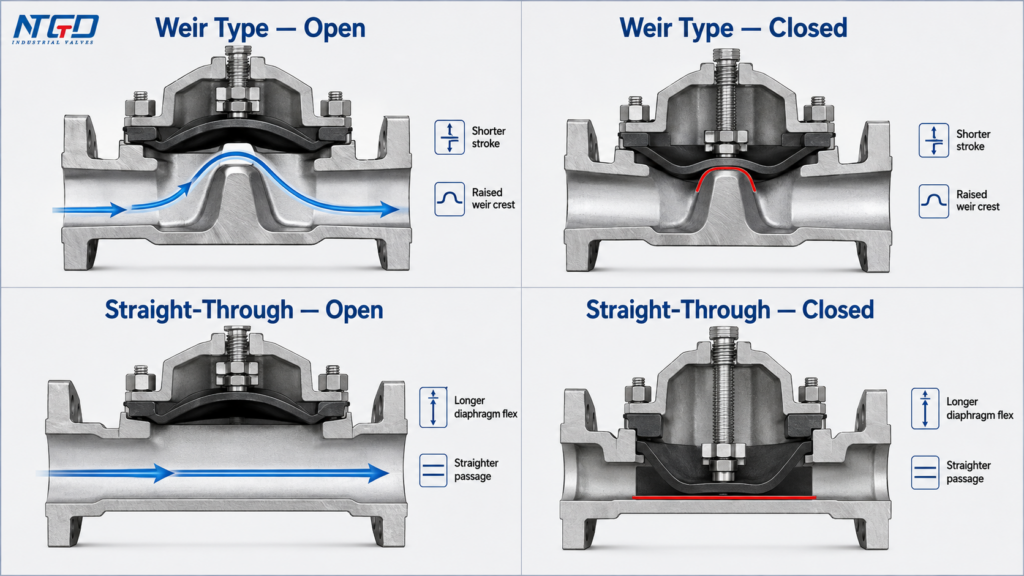

Weir Type vs Straight-Through: Diagram-Based Comparison
| Aspect | Weir Type | Straight-Through |
|---|---|---|
| Flow path | Defined crest | Continuous channel |
| Shut-off line | Crest contact | Seat line |
| Diaphragm flex | Lower | Higher |
| Solids handling | Media-dependent | Often preferred |
Selection reading note: If the diagram shows a distinct weir crest, the design generally favors more controlled shut-off geometry and lower diaphragm travel. If the diagram shows a more open straight-through channel, it may be better suited to flushing and solids-laden service, but diaphragm flex becomes a bigger life factor.
Design Limits and Performance Boundaries
Diaphragm material often sets limits before body rating. The diagram helps you understand geometry, but actual performance must always be confirmed against the relevant product datasheet and applicable engineering standards from bodies such as ASME.
-
extended partial stroke accelerates fatigue
-
vacuum or steam service requires explicit design confirmation
-
the drawing can show likely stress concentration zones, but it does not replace rated service data
Performance Limits the Diagram Can Help You Interpret
Performance figures such as Cv, pressure drop, and allowable operating range are size- and product-specific. Use the diagram to interpret geometry first, then confirm exact values in the relevant datasheet.
| Parameter | Why It Matters | What the Diagram Helps You Check |
|---|---|---|
| Shut-off geometry | Affects sealing behavior and leak path | crest contact or seat-line location |
| Diaphragm flex path | Affects fatigue life | diaphragm curvature and movement direction |
| Actuator stroke path | Affects over-travel risk | stem alignment and movement relationship |
| Flow restriction | Affects pressure drop and flushability | body passage shape and interruptions |
| Cleanability / solids retention risk | Affects suitability for slurry or clean service | pockets, dead zones, open-channel layout |
What the Diagram Tells You About Real Applications
Corrosive Media
A diaphragm valve diagram helps confirm whether the stem and upper actuation components are isolated from the process media. In corrosive service, that is one of the first things engineers check, because the value of a diaphragm valve often lies in keeping the sealing and wetted boundary concentrated in the body and diaphragm rather than around a packed stem zone.
Slurries and Solids Handling
For slurry or solids-laden service, the body passage shape matters immediately. A more open straight-through geometry often indicates better flushing behavior and lower retention risk than a restrictive internal passage with pockets or abrupt turns.
Clean or Hygienic Systems
In clean-process applications, the diagram helps verify whether the wetted seal boundary is simple, whether dead-leg risk appears controlled, and whether the isolation logic matches hygienic design expectations.
→ See ASME BPE-oriented sanitary diaphragm valve design and application guidance.
Maintenance and Safety
Inspection Focus
| Diagram checkpoint | Risk |
|---|---|
| Shut-off line | Internal leakage |
| Clamp zone | External leakage |
| Stem / plate path | Stiff operation |
Replacement Planning
Use the diagram to plan disassembly, seating, and reassembly. The drawing is especially useful for confirming:
-
diaphragm orientation
-
clamp edge support
-
plate connection style
-
likely wear zones
-
intended shut-off line
Safety (Non-negotiable)
-
depressurize
-
isolate energy
-
assume trapped media
How to Plan Diaphragm Replacement Using the Diagram
A diaphragm valve diagram is valuable before maintenance because it reduces guesswork. It shows what must be loosened, where the diaphragm is clamped, how the compressor connects, and where sealing actually occurs.
Figure 4: Diaphragm replacement planning diagram showing clamp zone, bonnet fasteners, compressor connection, and shut-off line
ALT: diaphragm valve replacement planning diagram showing clamp zone bonnet fasteners compressor and shut off line
Step 1: Identify the Clamp Zone and Bonnet Fasteners
Use the sectional view to locate the body-to-bonnet interface and the clamped diaphragm edge. This tells you where disassembly begins.
Step 2: Confirm the Diaphragm Type and Clamping Geometry
Match the diaphragm shape, backing style, and connection arrangement shown in the drawing with the actual parts list. Similar-looking replacement diaphragms are not always interchangeable.
Step 3: Verify Stem / Compressor Connection Style
Check how the stem transfers load to the compressor or plate. Misconnection during reassembly can create uneven compression and early failure.
Step 4: Inspect the Shut-Off Line and Main Deformation Zone
Use the diagram to identify where the diaphragm contacts the weir crest or seat line and where bending is greatest. Those are the first areas to inspect for wear, distortion, or chemical attack.
Step 5: Reassemble Without Over-Compression
The drawing should help confirm intended geometry, not justify excessive tightening. Over-compression is one of the most common causes of shortened diaphragm life in cyclic service.
Diagnostic Guide
| Symptom | Likely Area to Check | What the Diagram Helps You Verify | Typical Next Action |
|---|---|---|---|
| Internal leakage | Shut-off line, diaphragm edge | where sealing should occur, whether the diaphragm is likely contacting correctly | inspect diaphragm condition, verify stroke / travel setting |
| External leakage | Clamp zone, body-to-bonnet interface | clamp edge position, bonnet interface, likely leakage boundary | reseat diaphragm, inspect surfaces, check bolting sequence |
| Stiff operation | Stem / plate path, buildup-prone zones | alignment, load path, possible interference points | clean deposits, check alignment, recalibrate travel |
Practical note: In service, the diagram is often enough to narrow the problem to one of three zones before disassembly: the shut-off line, the clamp interface, or the stroke path.
→ Use our diaphragm valve troubleshooting guide for leakage and stiff operation.
Engineering Q&A
Weir vs straight-through selection?
Use the diagram to assess flow pockets and shut-off geometry first. Those two features usually tell you more about flushing behavior and diaphragm flex than a short product description.
Can it throttle?
Only in limited service. Diaphragm valves are primarily isolation valves, and extended partial stroke shortens diaphragm life.
What wears first?
Usually the diaphragm, because it flexes during every cycle and forms the sealing line.
FAQ: Diaphragm Valve Diagram Questions Engineers and Buyers Actually Ask
What does a diaphragm valve diagram show?
It usually shows a sectional or cutaway view of the valve body, diaphragm, bonnet, stem, compressor, and shut-off interface so you can understand flow path, sealing location, and force transfer.
Where does sealing occur in a diaphragm valve?
In a weir diaphragm valve, sealing occurs at the crest of the weir. In a straight-through diaphragm valve, sealing occurs at the seat line in the lower channel.
What are the main parts of a diaphragm valve?
The main parts shown in most diagrams are the valve body, diaphragm, bonnet or cover, stem, diaphragm plate or compressor, and actuator.
What is the difference between weir and straight-through diaphragm valve diagrams?
The key visual difference is the body passage. Weir designs show a raised shut-off crest, while straight-through designs show a more open channel with sealing at the lower seat line.
How do you identify leakage points from a diaphragm valve diagram?
Start with the shut-off line for internal leakage, the clamp or bonnet zone for external leakage, and the stem or plate path for stiff or abnormal actuation.
Why does a diaphragm valve leak at the bonnet or clamp joint?
Common causes include improper diaphragm seating, clamp-edge damage, interface contamination, or assembly issues. The drawing helps identify where that sealing boundary sits before the valve is opened.
Which part usually wears first in a diaphragm valve?
The diaphragm usually wears first because it flexes repeatedly and directly forms the sealing interface.
How can a diagram help with diaphragm replacement planning?
It helps identify clamp geometry, plate connection style, shut-off line location, and likely deformation zones so replacement can be planned with fewer mistakes.
Can a diaphragm valve be throttled?
Only in limited service. Diaphragm valves are mainly isolation valves, and long-term throttling usually accelerates diaphragm fatigue.
What should buyers confirm from a diaphragm valve drawing before RFQ?
Buyers should confirm body type, shut-off geometry, diaphragm style, actuator arrangement, end connection, and whether the layout appears suitable for the intended media, pressure, temperature, and maintenance method.
What is the P&ID symbol for a diaphragm valve?
A P&ID symbol shows the functional valve type in the process line, not the internal shut-off geometry. Exact appearance may vary by project convention, but it is different from a sectional or cutaway drawing used for maintenance and engineering review.
Where can I get a diaphragm valve CAD drawing or labeled PDF for RFQ review?
You can request a labeled diaphragm valve PDF or project drawing review from NTGD. For RFQ support, provide the application, media, pressure, temperature, and preferred body type or actuation method.
Conclusion
Diaphragm valve diagrams reveal three decisive engineering features: the sealing line, the force path, and the flow geometry. Used together with datasheets and project requirements, they help engineers avoid misapplication, diagnose problems faster, and plan maintenance with fewer surprises, especially in corrosive, slurry, and high-isolation service.
For buyers and project engineers, the value of the drawing is practical. It helps confirm what is wetted, what is isolated, where sealing occurs, and which body geometry is more likely to suit the intended service before deeper specification review begins.
The diagrams shown in this article correspond to typical diaphragm valve configurations. Product specifications and available options can be found on our straight-through diaphragm valve product page and related diaphragm valve technical resources.
Need Help with Diagram Review or Selection?
Need help selecting the correct diaphragm valve body type, diaphragm material, or actuator arrangement?
Send NTGD your:
-
media
-
pressure
-
temperature
-
valve type or body preference
-
drawing / photo / part reference, if available
We can help with:
-
labeled diaphragm valve drawing PDF
-
specification sheet support
-
diaphragm material review
-
project-oriented product recommendation
-
RFQ support based on service conditions
-
diagram-based engineering review for corrosive, slurry, hygienic, or general process applications
Author and Review Note
NTGD Valve Engineering Team
This article was prepared for engineers, buyers, and maintenance staff reviewing diaphragm valve structure, sealing logic, and drawing interpretation. It was reviewed internally for diaphragm valve applications involving corrosive media, solids handling, and clean-process service.
For technical support, drawing review, CAD / PDF request, or product selection assistance, contact the NTGD team through the site inquiry channel.
