A diaphragm valve drawing is useful for RFQ, GA drawing review, piping review, and specification confirmation, but it is not a complete purchasing specification by itself. Before ordering, the drawing must be checked against the latest revision, valve datasheet, valve tag, valve list, service conditions, and project specification.
The common mistake is to approve a valve because the drawing “looks right” while missing a specification conflict. A valve may appear to fit the drawing but still create face-to-face mismatch, material mismatch, actuator clearance conflict, or documentation problems during procurement, fabrication, shipment, or site installation.
This guide explains how to read diaphragm valve drawings for RFQ, piping review, GA drawing review, dimensional confirmation, drawing note review, and datasheet cross-check. It does not provide CAD downloads, full dimension tables, brand drawing libraries, supplier rankings, or a diaphragm valve parts / working principle explanation.
What Is a Diaphragm Valve Drawing?
Quick Answer for Buyers and Engineers
A diaphragm valve drawing is a technical drawing used to show the external arrangement, connection details, installation envelope, key dimensions, and specification references of a diaphragm valve. In an RFQ or piping review, the drawing helps buyers and engineers confirm whether the valve can fit the pipeline, match the project connection standard, clear nearby equipment, and align with the valve datasheet.
A diaphragm valve drawing alone is not enough for purchasing. It should be checked together with the valve datasheet, valve tag, valve list, service conditions, project specification, and drawing revision before RFQ or ordering. This cross-check helps prevent a drawing-based approval from becoming a project-level fit-up or specification problem.
In most B2B projects, a diaphragm valve drawing is useful for checking:
- valve size and end connection;
- face-to-face or overall length;
- actuator or handwheel envelope;
- overall height and clearance;
- body design, such as weir type or straight-through style;
- body material, lining, and diaphragm material references;
- drawing number, revision, approval status, and notes;
- consistency with the datasheet, valve tag, valve list, and RFQ documents.
A drawing supports specification review, but it should not replace the datasheet or the final project-approved document set.
What This Guide Covers
This guide focuses on practical drawing review before RFQ or ordering. It is written for project buyers, EPC teams, piping engineers, maintenance buyers, and technical procurement teams who need to understand what to check before sending a diaphragm valve inquiry to a supplier.
The main review areas are:
| Review Area | Why It Matters |
|---|---|
| GA drawing review | Confirms the general arrangement, external envelope, title block, drawing number, and revision |
| Dimensional drawing review | Helps check face-to-face dimension, overall height, actuator envelope, and clearance |
| RFQ drawing package | Clarifies what information should be sent to the supplier before quotation |
| Piping review | Checks whether the valve connection and topwork fit the project layout |
| Datasheet cross-check | Confirms that drawing information matches pressure class, materials, media, temperature, and tag data |
| Drawing limitations | Prevents buyers from treating a drawing as a complete specification |
What This Guide Does Not Cover
This guide does not replace a diaphragm valve diagram, parts guide, P&ID symbol guide, CAD library, or product catalog.
It does not provide:
- full diaphragm valve parts explanation;
- diaphragm valve structure diagrams or labeled parts drawings;
- working principle diagrams;
- P&ID symbol standards or drawing symbol libraries;
- CAD, DWG, STEP, or 3D model downloads;
- full dimension tables for every size and pressure class;
- competitor brand drawing libraries;
- supplier lists, pricing tables, or manufacturer rankings.
Those topics may need separate resources or existing technical pages. This page stays focused on how to read and review diaphragm valve drawings before RFQ, piping review, and specification confirmation.

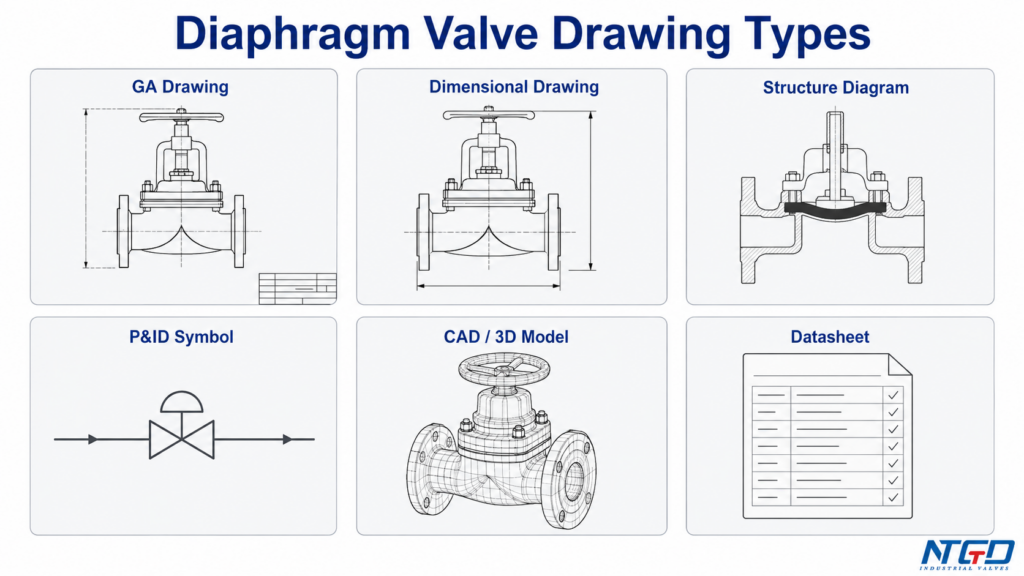

Diaphragm Valve Drawing Types: GA, Dimensional, Diagram, Symbol and CAD
Search results for “diaphragm valve drawing” often mix several different document types. A buyer may be looking for a GA drawing, a dimensional drawing, a structure diagram, a P&ID symbol, a CAD file, or a datasheet. These are not the same thing.
The first step is to identify what kind of document you are reviewing.
| Drawing / Document Type | What It Usually Shows | What It Does Not Fully Confirm | Correct Use in RFQ Review |
|---|---|---|---|
| GA drawing / general arrangement drawing | External arrangement, main dimensions, end connection, actuator or handwheel envelope, title block, revision | Full service compatibility, final material suitability, detailed test scope, or complete project specification | Core drawing for RFQ, piping review, and project arrangement confirmation |
| Dimensional drawing | Face-to-face, overall length, height, flange or connection envelope, actuator clearance | Complete purchasing specification, service selection, or final documentation scope | Used to reduce fit-up, pipe spool, layout, and actuator interference risk |
| Structure diagram / sectional drawing | Internal structure, diaphragm, body, compressor, bonnet, flow path, parts relationship | Project dimensions, connection details, actuator envelope, final RFQ data | Useful for understanding construction; a GA drawing is still needed for purchasing review |
| P&ID symbol / drawing symbol | A simplified symbol used in process drawings to identify valve type and location | Valve size, material, actuator envelope, end connection, face-to-face dimension | Useful for drawing identification, not for ordering or layout confirmation |
| CAD / DWG / 3D model | Digital geometry or layout reference | Final approved specification, material suitability, testing requirement, revision status | Useful after project requirements are defined; not a substitute for a confirmed drawing package |
| Datasheet / specification sheet | Size, class, material, lining, diaphragm, operation, standards, testing, service conditions | Exact layout envelope unless the drawing is attached or referenced | Must be cross-checked with the drawing |
GA Drawing vs Dimensional Drawing
A diaphragm valve GA drawing normally gives a broader general arrangement view. It may show the valve body, bonnet, handwheel or actuator, end connections, key dimensions, title block, revision, and notes. A dimensional drawing may focus more narrowly on the physical dimensions needed for layout or installation envelope review.
In practice, buyers often need both. The GA drawing helps confirm the assembly arrangement and document status, while the dimensional drawing helps confirm whether the valve fits the piping space. Checking both documents can reduce later layout changes, pipe spool adjustment, and repeated RFQ clarification.
Structure Diagram vs P&ID Symbol
A structure diagram explains the internal or semi-internal construction of a diaphragm valve. It may help the reader understand where the diaphragm sits, how the compressor or stem transfers force, and how the valve body form affects operation. However, it is not normally the document used to confirm face-to-face length, actuator clearance, flange drilling, or RFQ data. For internal structure, parts, and working principle review, the diaphragm valve diagram guide should carry that topic rather than this drawing review page.
For readers who need internal construction rather than RFQ drawing review, the related diaphragm valve diagram and parts guide explains labeled parts, structure, sealing lines, and working principle.
A P&ID symbol is even more simplified. It identifies that a diaphragm valve is required in the process line, but it does not confirm the physical valve design or purchase specification. For RFQ work, the symbol must be connected to the valve tag, valve list, datasheet, and project drawing. For symbol interpretation, the dedicated diaphragm valve symbol guide should carry that topic rather than this GA drawing review page.
For project symbol interpretation, use the diaphragm valve symbol guide to connect the P&ID symbol with the project legend, valve tag, valve list, and datasheet.
CAD, DWG and 3D Model Request Boundary
CAD, DWG, and 3D models are common digital deliverables in valve procurement, but their role in the initial RFQ stage is often misunderstood. A CAD model can help with layout coordination, but it should not be treated as a final purchasing specification.
A CAD or DWG file may show geometry, but it may not show the latest drawing revision, material selection, diaphragm material, lining requirement, test requirement, or project-specific notes. Before requesting a CAD or 3D model, confirm the valve size, pressure class, end connection, actuator type, body material, lining, diaphragm material, and service conditions.
How to Review a Diaphragm Valve GA Drawing
A diaphragm valve general arrangement drawing should be reviewed as a project document, not only as a product picture. The goal is to confirm whether the valve shown in the drawing matches the intended service, piping layout, and RFQ information.
Title Block, Drawing Number and Revision
Start with the title block. It normally tells you the drawing number, revision, scale, unit, issue date, approval status, and sometimes the project or product description. This area is easy to ignore, but it often controls whether the drawing is preliminary, revised, approved for review, or ready for final document control.
| Field to Check | Why It Matters | Where to Confirm | RFQ Risk if Missed |
|---|---|---|---|
| Drawing number | Identifies the exact document being reviewed | Title block, supplier document list | Buyer and supplier may review different drawings |
| Revision | Shows whether the drawing has been updated | Title block, revision table | Outdated dimensions, connection details, or actuator envelope may be used |
| Unit | Confirms metric or imperial dimension basis | Title block, notes | Wrong interpretation of size or envelope |
| Drawing status | Shows preliminary, approval, certified, or final status | Title block or document note | A preliminary drawing may be mistaken as a final purchasing document |
| Scale / do-not-scale note | Warns whether dimensions should be read from marked values only | Drawing notes | Buyer may estimate dimensions from graphics instead of using marked values |
| Project / tag reference | Connects drawing to the project valve list | Title block or document header | The wrong valve arrangement may be applied to the wrong tag |
For general engineering drawing context, McGill University’s guidance on engineering drawing title block and revision table guidance explains why drawing number, scale, notes, approval information, and revision records are part of technical drawing control.
A good RFQ review should state which drawing number and revision are being used. If several drawings are exchanged during a project, the revision becomes part of the purchasing risk control. A revision mismatch can cause the buyer to quote, approve, or fabricate around an actuator envelope or connection detail that is no longer current.
Valve Size, Body Design and End Connection
After the title block, review the valve size, body design, and end connection. For diaphragm valves, the drawing may refer to weir type, straight-through type, lined body, flanged connection, clamp connection, threaded connection, or weld-end connection depending on the design and application.
The drawing should be checked against the RFQ and datasheet to confirm:
- nominal size;
- pressure class or pressure rating;
- body design;
- end connection type;
- flange drilling or connection standard;
- face-to-face or overall length;
- flow direction or installation orientation note, if shown;
- whether the topwork is manual, pneumatic, electric, or otherwise actuated.
If the drawing lists weir, straight-through, 3-way, or block body design but the service duty is still unclear, compare the body option with the diaphragm valve types guide before finalizing the RFQ basis.
Do not assume that two diaphragm valves with the same nominal size have the same external dimensions. Body design, lining, actuator package, end connection, and manufacturer design can change the drawing envelope.
Body Material, Lining and Diaphragm Material References
Some drawings include material references, while others only show geometry. A diaphragm valve drawing may list body material, lining material, diaphragm material, bonnet material, or actuator information. These references should be treated as cross-check points, not as the only source of truth.
If the drawing only states a general note such as “lined body,” “PTFE lining,” or a broad diaphragm description without the detailed material basis, the RFQ should request written confirmation through the datasheet or supplier specification. A drawing note alone may not be enough to confirm chemical compatibility, cleaning suitability, abrasion resistance, or lifecycle expectation.
For corrosive, abrasive, slurry, wastewater, chemical, sanitary, or high-purity service, the material and diaphragm selection must be verified against the datasheet and service conditions. The exact medium, temperature, concentration, pressure, cleaning conditions, and operating cycle can affect the final selection. A mismatch in diaphragm or lining selection can lead to leakage risk, premature wear, cleaning problems, or early replacement even when the drawing dimensions are correct.

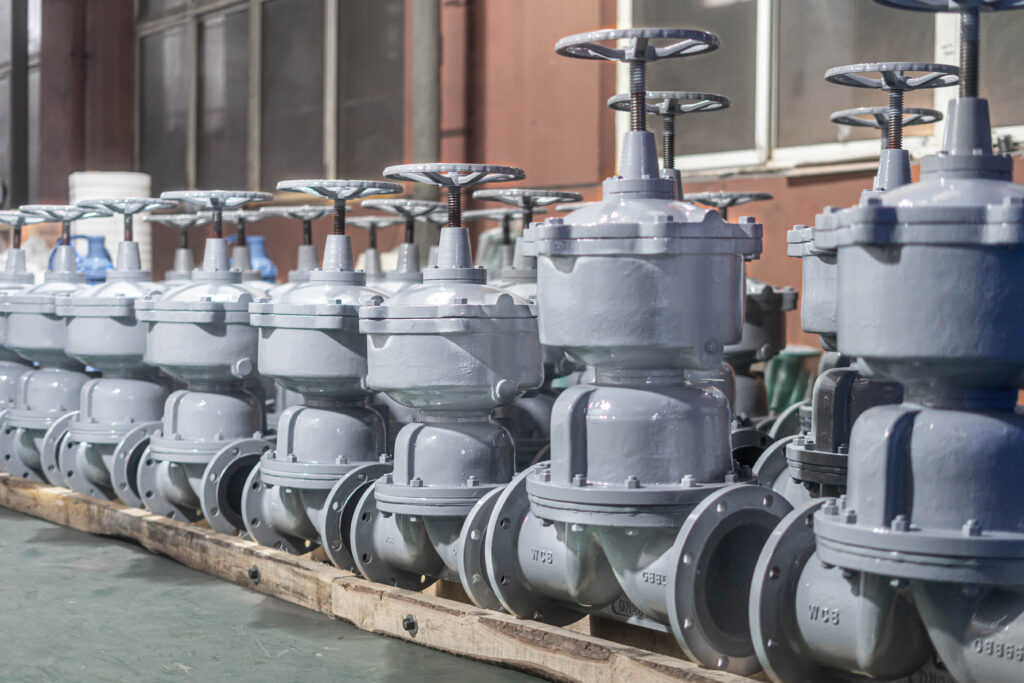

Manual, Pneumatic or Actuated Topwork Shown on the Drawing
The topwork shown on the drawing matters because it changes the space required around the valve. A manual diaphragm valve may show a handwheel or manual operator. A pneumatic diaphragm valve may show an actuator, air connection, position indicator, limit switch box, solenoid valve, or other accessories depending on the scope.
When reviewing the topwork, check:
- overall height from pipe centerline or valve bottom;
- maximum actuator diameter or width;
- handwheel turning clearance;
- air connection location;
- position indicator visibility;
- accessory clearance;
- maintenance access around the bonnet and actuator;
- whether the actuator package matches the RFQ.
The actuator envelope is one of the most important drawing review items because it affects piping layout, nearby equipment, platforms, pipe racks, insulation clearance, and future maintenance access. A basic actuator outline may not include every accessory required by the RFQ, so accessory scope should be confirmed before ordering.
RFQ Drawing Package: What Buyers Should Send and Confirm
A diaphragm valve drawing for RFQ should not be sent alone. A supplier may need the drawing, valve tag, datasheet, service condition, and piping requirements to confirm the correct valve configuration.
If the RFQ package is incomplete, the supplier may propose a valve that is technically valid as a product but incompatible with the project. The result can be material mismatch, connection mismatch, actuator clearance conflict, repeated technical clarification, or a revised drawing after the buyer expected the specification to be frozen.
Minimum RFQ Information to Send with the Drawing
A useful RFQ package should help the supplier identify both the physical valve envelope and the service requirements. The drawing shows the arrangement; the RFQ data explains what the valve must handle.
| RFQ Information | Example of What to Provide | Why Supplier Needs It | Check Source |
|---|---|---|---|
| Valve size | DN / NPS size | Determines body size and connection | Valve list, piping drawing, datasheet |
| Pressure class / rating | Project pressure rating or class | Affects body, connection, and documentation review | Datasheet, project specification |
| Medium | Chemical, water, slurry, air, CIP fluid, wastewater, etc. | Drives diaphragm, lining, and wetted material review | Process data, service description |
| Temperature | Normal and maximum operating temperature | Affects diaphragm, lining, and material suitability | Process datasheet |
| Body material | Cast iron, ductile iron, carbon steel, stainless steel, or project-specified material | Confirms pressure boundary and corrosion resistance direction | Datasheet, material specification |
| Lining material | Rubber, PTFE, PFA, or other lining if required | Confirms wetted surface suitability and service compatibility | Datasheet, service condition |
| Diaphragm material | EPDM, PTFE, rubber compound, or project-specified material | Critical for sealing, compatibility, and lifecycle risk | Datasheet, process condition |
| End connection | Flanged, clamp, threaded, weld-end | Prevents piping interface mismatch | Piping specification, drawing |
| Operation | Manual, pneumatic, electric, actuated | Affects topwork envelope, control interface, and clearance | RFQ, control philosophy |
| Valve tag | Project tag number | Connects drawing to the valve list and P&ID | P&ID, valve list |
| Drawing revision | Latest issue or approved drawing | Prevents outdated document review | Drawing title block |
| Testing / inspection request | Pressure test, material certificate, inspection record if required | Confirms documentation scope before quotation | Project specification |
This information should be consistent. If the drawing, datasheet, valve list, and RFQ email describe different materials, connections, actuator packages, or revision status, the supplier should not be forced to guess which one controls the order.
Project Drawing vs Supplier Drawing
A project drawing and a supplier drawing may serve different roles. A project drawing may show where the valve is located in a piping system. A supplier drawing may show the product arrangement, main dimensions, topwork envelope, and connection details.
For RFQ review, both may be necessary. The project drawing explains the piping context, while the supplier drawing helps confirm whether the selected diaphragm valve can meet that context.
A buyer should clarify whether the requested drawing is:
- preliminary drawing for review;
- GA drawing for quotation;
- dimensional drawing for layout check;
- approval drawing for project confirmation;
- certified drawing after order confirmation;
- CAD / 3D model for layout coordination.
If project drawings and supplier drawings show different dimensions, connections, or actuator envelopes, the conflict should be resolved before ordering. The final document basis should follow the project document control process and the approved supplier drawing status required by the project.

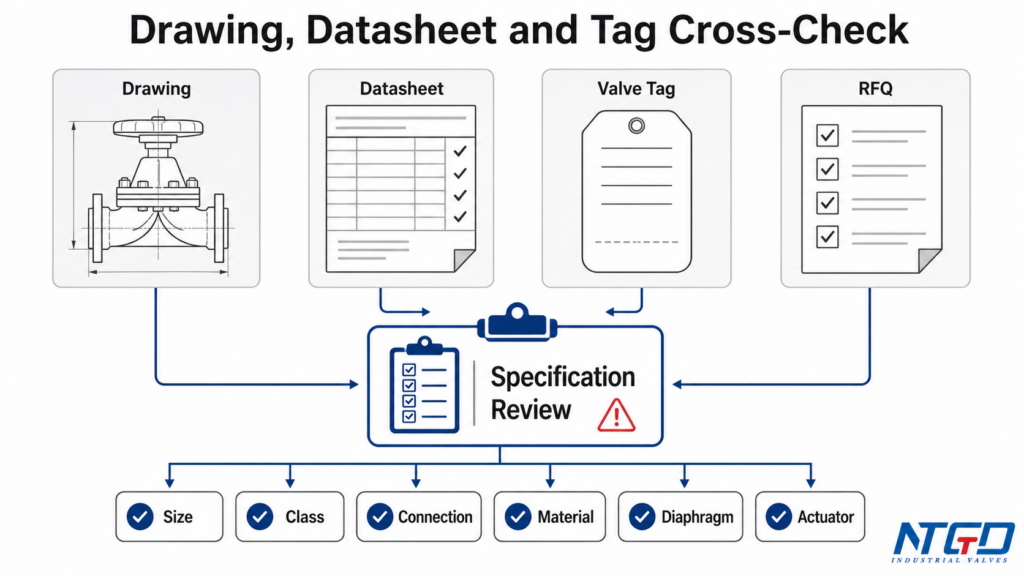

Drawing, Datasheet and Valve List Consistency
The safest approach is to check drawing information against the datasheet and valve list before sending the RFQ. The drawing may show a valve arrangement, but the datasheet should confirm service and specification information.
Before sending the RFQ, ask:
- Does the drawing size match the valve list?
- Does the end connection match the piping specification?
- Does the actuator shown match the RFQ?
- Does the lining or diaphragm material match the service?
- Does the pressure class match the datasheet?
- Does the drawing revision match the document list?
- Does the valve tag match the P&ID and valve list?
If any item is unclear, state the uncertainty in the RFQ instead of allowing the supplier to assume the missing detail. Clear uncertainty is easier to resolve than a wrong assumption after quotation, production, or shipment.
Dimensional Checks Before Ordering a Diaphragm Valve
A diaphragm valve dimensional drawing helps confirm whether the valve can physically fit the project. This section is not a full dimension table. Exact dimensions depend on valve size, pressure rating, body design, lining, end connection, actuator type, and manufacturer design.
Face-to-Face and Overall Length
Face-to-face dimension is one of the first items to check. It affects whether the valve fits between existing flanges or into a new piping layout. For replacement work, a small difference in face-to-face length may require pipe modification or spool adjustment.
For projects that reference valve dimensional standards, the ASME B16.10 valve dimensional standard is an example of a standard focused on face-to-face and end-to-end valve dimensions for installation interchangeability.
For new projects, face-to-face should be checked together with the piping specification, flange standard, gasket arrangement, and any required installation clearance. A similar valve size from another drawing or catalog should not be used as the final basis for pipe spool fabrication unless the supplier confirms the project drawing and revision.
Overall Height and Top Clearance
Overall height is especially important for diaphragm valves with manual handwheels or pneumatic actuators. If the valve is installed below a platform, pipe rack, ceiling, cable tray, insulation cover, or equipment frame, the top clearance must be checked before ordering.
A drawing may show the maximum height, but the reviewer must confirm whether that height includes:
- handwheel;
- pneumatic actuator;
- position indicator;
- limit switch box;
- solenoid valve;
- accessory bracket;
- open / closed travel position, where applicable.
Actuator Envelope, Weight and Support Considerations
An actuator can change the valve envelope more than the valve body itself. A pneumatic actuator, electric actuator, or control accessory may increase height, width, weight, and maintenance access requirements.
| Dimension / Envelope Field | Why It Matters | Confirm From Drawing or Datasheet | Risk if Missed |
|---|---|---|---|
| Face-to-face / overall length | Controls pipe fit-up | Drawing, datasheet, project piping spec | Valve may not fit the spool space or replacement location |
| Overall height | Controls vertical clearance | GA drawing, actuator drawing | Interference with platform, pipe rack, ceiling, or nearby equipment |
| Actuator width / diameter | Controls side clearance | Actuator envelope drawing | Nearby piping, insulation, or structures may block access |
| Handwheel clearance | Affects manual operation | GA drawing, layout review | Operator may not be able to turn the valve safely or fully |
| Air connection location | Affects tubing layout | Pneumatic actuator drawing | Air tubing may conflict with supports, trays, or adjacent piping |
| Weight | Affects handling and support | Datasheet, supplier document | Support, lifting, or maintenance planning may be incomplete |
| Maintenance access | Affects future diaphragm replacement or actuator service | Drawing and site layout | Maintenance may require unnecessary downtime or difficult access |
| Revision status | Confirms latest dimension basis | Title block | Outdated dimensions may be used for RFQ or fabrication review |
Why This Section Is Not a Full Dimension Table
A complete diaphragm valve dimension table belongs in a product catalog, datasheet, or dedicated dimensions resource. This article focuses on how to review dimensions, not on publishing fixed dimensions for every valve size.
A single dimension table cannot capture all variations between body designs, lining options, end connections, actuator packages, accessories, and manufacturer design practices. Weir type and straight-through bodies, lined and unlined designs, flanged and clamp connections, and manual or pneumatic topworks can all change the external envelope.
For RFQ or ordering, use the project-specific drawing and supplier-confirmed datasheet. Do not copy dimensions from a similar valve, old drawing, or generic catalog image without confirming the latest design and revision.
End Connection, Piping Layout and Actuator Envelope Checks
A diaphragm valve drawing is useful in piping review because it shows whether the valve body, end connection, and topwork can fit the intended installation space. The purpose is not to replace the installation procedure. The purpose is to identify connection and clearance risks before RFQ and ordering.
Flanged, Clamp, Weld-End and Threaded Connections
End connection affects how the valve is installed and what information the supplier needs. Common diaphragm valve connection types may include flanged, clamp, threaded, or weld-end designs, depending on the application and valve type.
For drawing review, check:
- end connection type;
- flange standard or drilling pattern;
- raised face, flat face, lined face, or other gasket face requirement where applicable;
- clamp ferrule or sanitary connection dimensions where applicable;
- weld-end preparation where applicable;
- thread type where applicable;
- face-to-face or end-to-end dimension;
- whether mating piping details are already defined.
Do not assume that “flanged diaphragm valve” is enough information. The flange standard, pressure rating, drilling pattern, gasket face, lining edge, and project piping specification must be confirmed.
Flange Drilling, Gasket Face and Piping Match
If the valve connection does not match the project piping, the valve may be technically correct as a product but still unusable on site. A drawing should be checked against the piping class or piping specification.
Typical review questions include:
- Does the flange drilling match the mating flange?
- Does the face type match the gasket requirement?
- Does the lined flange face or lining edge affect gasket contact?
- Does the clamp or sanitary connection align with the mating ferrule?
- Does the bolt hole orientation matter in this project?
- Is there enough clearance for bolts, nuts, and tools?
- Does the valve body or actuator interfere with nearby piping?
- Does insulation or cladding affect access?
These questions are part of diaphragm valve piping review, not product marketing. They help avoid fit-up issues before the valve is purchased.
Manual Handwheel and Pneumatic Actuator Clearance
Manual and pneumatic diaphragm valves create different layout risks. A manual handwheel requires operating clearance. A pneumatic actuator may require vertical and side clearance, air tubing access, signal device space, and maintenance access.
When reviewing a pneumatic diaphragm valve drawing, check whether the actuator shown is the same as the requested actuator package. A basic actuator outline may not show all control accessories. If the RFQ requires position feedback, solenoid valve, air filter regulator, switch box, or other accessories, confirm whether they are included in the drawing envelope.
For automated topwork review, the pneumatic diaphragm valve page can help separate actuator package questions from the GA drawing itself.
How Drawing Review Helps Prevent Piping Interference
A drawing review can identify connection and clearance risks before procurement, but it does not replace the project installation procedure. Installation orientation, bolting method, support, gasket installation, cleaning, pressure testing, and commissioning should still be verified against the project requirements and supplier instructions.
The drawing review should answer a narrower question: does the selected diaphragm valve arrangement appear compatible with the project layout, piping interface, actuator envelope, and RFQ information before ordering?
Drawing Notes, Revision and Certified Drawing Checks
A diaphragm valve drawing is more than the outline of a valve. The notes, revision table, approval status, and document control information can change how the drawing should be used.
Units, Tolerances and Do-Not-Scale Notes
Drawing notes may state units, tolerances, surface requirements, scope limitations, or whether the drawing should not be scaled. These notes are important because a user may be tempted to measure or estimate dimensions from a drawing image.
A “do not scale” note means the reviewer should rely on marked dimensions, not on the apparent size of the image. If a required dimension is not shown, it should be requested from the supplier instead of estimated.
Drawing Revision and Approval Status
Drawing revision is a practical procurement control point. A valve drawing may change because of actuator selection, material change, connection change, project comments, or supplier design update.
Before final ordering, check whether the drawing is:
- preliminary;
- for quotation;
- for approval;
- approved with comments;
- revised for construction;
- certified or final.
A preliminary drawing may be sufficient for early RFQ discussion, but it may not be sufficient for final purchasing or fabrication interface control. For tight piping layouts, an outdated revision can create a real layout problem even if the valve size and connection type appear correct.
When to Request a Certified Drawing
A certified drawing may be needed when the valve affects project layout, pipe spool fabrication, actuator clearance, documentation approval, or strict project submittal requirements. The exact need depends on the project specification.
An approval drawing is normally used for project review and confirmation before final release. A certified or final drawing is usually used for stricter procurement, fabrication interface, or delivery documentation control. The required document status should be stated in the RFQ and project specification.
Request a certified or project-approved drawing when:
- the valve is part of a tagged project package;
- the piping layout has tight space;
- the actuator or accessory envelope affects surrounding equipment;
- flange or connection details must be frozen before fabrication;
- the project requires formal document approval;
- the valve is being used in a critical service or regulated documentation process.
Do not treat a downloaded image or old catalog drawing as certified project information unless the supplier confirms the document status.
Datasheet, Valve Tag and Specification Cross-check
A diaphragm valve drawing should be reviewed together with the datasheet, valve tag, valve list, and RFQ information. Drawing geometry alone cannot confirm the full engineering suitability of the valve.
Drawing vs Datasheet vs Valve Tag
The drawing usually shows physical arrangement. The datasheet usually defines specification details. The valve tag connects the valve to the project system. These three sources should agree.
| Item to Confirm | Drawing | Datasheet | Valve Tag / Valve List | RFQ Confirmation |
|---|---|---|---|---|
| Valve size | Usually shown | Must match | Must match | State clearly |
| Pressure class / rating | May be shown | Must confirm | May be listed | Confirm required rating |
| End connection | Usually shown | Must match | May be listed | Confirm standard and type |
| Body material | May be shown | Must confirm | May be specified | Confirm material grade |
| Lining material | May be shown | Must confirm | May be specified for service | Confirm with medium |
| Diaphragm material | May be shown | Must confirm | May be specified for service | Confirm with medium and temperature |
| Actuator type | Usually shown if included | Must confirm | May be listed | Confirm manual / pneumatic / electric |
| Accessories | May not be fully shown | Must define if required | May be in instrument list | Confirm scope |
| Test / inspection | Usually not enough | Must confirm | Project dependent | State requirements |
| Drawing revision | Shown in title block | Document reference | Document list | Use latest revision |
Pressure Class, Temperature and Media Confirmation
A drawing may show pressure class or rating, but it does not always prove that the valve is suitable for the actual service. Pressure, temperature, medium, concentration, cleaning method, and operating cycle may affect material and diaphragm selection.
For example, two valves may have similar drawings but different wetted materials, diaphragm compounds, or lining options. The drawing helps identify the physical arrangement, but the datasheet and service condition determine whether the selected configuration is appropriate.
Material, Lining and Diaphragm Selection Check
Diaphragm valve performance depends heavily on wetted material compatibility. The diaphragm and lining are not just drawing labels; they are service selection items.
Before ordering, confirm:
- body material;
- lining material;
- diaphragm material;
- medium and concentration;
- operating temperature;
- pressure condition;
- cleaning or flushing conditions;
- abrasive or slurry content;
- vacuum or cycling requirements, if applicable;
- whether the valve is for corrosive, sanitary, wastewater, slurry, or other special service.
If the drawing and datasheet disagree, the discrepancy should be resolved before purchase. If the drawing is unclear, the RFQ should ask the supplier to confirm the correct wetted materials and diaphragm selection in writing.
Test, Inspection and Documentation Notes
A drawing may not show all testing and inspection requirements. Project documentation may require pressure test records, material certificates, inspection reports, traceability, or other documents. These requirements should be stated in the RFQ instead of assumed from the drawing.
What a Diaphragm Valve Drawing Cannot Confirm Alone
A diaphragm valve drawing is useful, but it is not complete by itself. Each item in the table below should be treated as a separate RFQ confirmation point when it affects the project. Do not assume that the drawing already contains every specification requirement.
| Item | Why the Drawing May Not Be Enough | What to Confirm Next |
|---|---|---|
| Media compatibility | A drawing shows geometry, not full chemical, slurry, cleaning, or process interaction | Datasheet, material selection, service data |
| Diaphragm suitability | A drawing may show a diaphragm label but not full temperature, media, cycling, or cleaning compatibility | Diaphragm material and application review |
| Lining suitability | A drawing may show lined construction but not service limits or lining grade detail | Lining material, temperature, medium |
| Pressure / temperature limits | A drawing may not show full rating conditions or derating context | Datasheet and project specification |
| Actuator performance | A drawing may show envelope but not control logic, air supply requirement, thrust, or accessory scope | Actuator datasheet and control requirements |
| Test requirements | A drawing may not show inspection, testing, or documentation scope | Project specification and RFQ notes |
| Certified approval status | Image, catalog, or preliminary drawing may not represent final document status | Drawing revision and document status |
| CAD / PDF accuracy | File may not reflect final project configuration or latest revision | Supplier-confirmed drawing and datasheet |
Service Compatibility and Lifecycle Risk
A valve can fit the pipe and still be wrong for the service. Chemical compatibility, diaphragm material, lining, temperature, pressure, cycling frequency, and process cleanliness may affect performance. This is why drawing review must be connected to application review.
Final Material and Diaphragm Suitability
The diaphragm is a critical wetted and sealing component. If the material is not suitable for the medium or temperature, the valve may face early wear, swelling, hardening, leakage, or operating problems. The drawing may help identify the intended diaphragm, but the final material must be confirmed against the service.
Testing, Inspection and Project-specific Requirements
Many project requirements live outside the drawing. These may include inspection hold points, documentation packages, test records, material traceability, cleaning requirements, or special packing requirements. These should be listed in the RFQ.
Why CAD or PDF Files Are Not Enough for Purchasing
A CAD file, PDF drawing, or downloaded image can help with layout, but it may not contain the latest specification, revision, test requirement, or project approval status. For purchasing, the buyer should request supplier-confirmed drawings and datasheets based on the actual RFQ conditions.
Final RFQ Checklist and NTGD Diaphragm Valve Support
Before sending a diaphragm valve RFQ, use the drawing as one part of a complete specification review. The final package should make it clear what valve is needed, where it will be installed, what service it will handle, and which document revision is being reviewed.
| RFQ Check Item | What to Send or Confirm |
|---|---|
| Valve size | DN / NPS size and quantity |
| Pressure class / rating | Required class, pressure rating, or project specification |
| Medium | Fluid, chemical, slurry, wastewater, air, or process media |
| Temperature | Normal and maximum operating temperature |
| Body material | Required material or project preference |
| Lining material | Rubber, PTFE, PFA, or other specified lining if needed |
| Diaphragm material | Required diaphragm material or service condition for selection |
| End connection | Flanged, clamp, threaded, weld-end, or other connection |
| Connection standard | Flange drilling, clamp type, thread type, or weld-end detail |
| Operation | Manual, pneumatic, electric, or actuated package |
| Actuator accessories | Positioner, limit switch, solenoid valve, air filter regulator, if required |
| Drawing | GA drawing, dimensional drawing, or project drawing revision |
| Datasheet | Valve datasheet or required specification sheet |
| Valve tag | Tag number, valve list reference, or P&ID reference |
| Documentation | Test, inspection, certificate, or approval document requirements |
A clear RFQ reduces the risk of wrong valve selection, wrong connection, wrong material, wrong actuator envelope, or outdated drawing review. A complete package also helps the supplier identify conflicts earlier and reduce repeated technical clarification before quotation or production.
FAQ About Diaphragm Valve Drawings
What is a diaphragm valve drawing?
A diaphragm valve drawing is a technical drawing used to show the arrangement, dimensions, connection details, and specification references of a diaphragm valve. It may support RFQ, piping review, GA drawing review, and dimensional confirmation, but it should be checked together with the datasheet, valve tag, and service conditions.
How do you read and review a diaphragm valve GA drawing for RFQ?
Start with the title block, drawing number, revision, unit, and approval status. Then check valve size, body design, end connection, main dimensions, actuator or handwheel envelope, drawing notes, and material references. Finally, compare the drawing with the datasheet, valve list, valve tag, and RFQ requirements.
Can a diaphragm valve drawing be used for RFQ?
Yes, but it should not be used alone. A diaphragm valve drawing is useful for RFQ when it is sent together with size, pressure class, medium, temperature, body material, lining, diaphragm material, actuator type, end connection, valve tag, datasheet, and any required test or inspection notes.
Can I order a diaphragm valve based only on a drawing?
Usually no. A drawing can show geometry and arrangement, but it may not fully confirm service compatibility, diaphragm material suitability, lining selection, pressure / temperature limits, test requirements, or project documentation scope. Purchasing should be based on a supplier-confirmed drawing, datasheet, and project specification.
What dimensions do I need to check on a diaphragm valve drawing before ordering?
Important dimensions include face-to-face or overall length, overall height, actuator envelope, handwheel clearance, flange or connection dimensions, air connection location, weight, and maintenance access. Exact values should be confirmed from the latest supplier drawing and datasheet.
What is the difference between a structure diagram and a GA drawing?
A structure diagram explains internal parts and how the diaphragm valve is built. A GA drawing shows the general arrangement, external dimensions, end connection, topwork envelope, title block, revision, and drawing notes needed for project review. A structure diagram helps understand construction, while a GA drawing is more useful for RFQ and piping review.
What is the difference between a P&ID symbol and a GA drawing?
A P&ID symbol identifies that a diaphragm valve exists in a process line for functional design. A GA drawing defines which physical valve fits the project by showing dimensions, end connections, actuator envelope, and arrangement information. The symbol is for the process diagram; the GA drawing is for the physical project.
Where can I get a diaphragm valve CAD or DWG drawing?
This page does not provide general CAD or DWG downloads. CAD or DWG drawings are usually requested from the valve supplier after the project conditions are defined. Before requesting CAD files, confirm valve size, pressure class, end connection, actuator type, material, lining, diaphragm material, and service conditions. A CAD file should not replace a supplier-confirmed datasheet or approved drawing.
Conclusion
A diaphragm valve drawing is most useful when it is treated as an engineering review document, not as a standalone purchasing specification. For RFQ and piping review, the drawing should be checked for GA arrangement, dimensions, end connection, actuator envelope, drawing notes, revision status, and consistency with the datasheet and valve tag.
The most important review principle is to connect the drawing to the real project conditions. A drawing may show how the valve looks and fits, but the datasheet, service conditions, material selection, diaphragm material, lining, pressure class, and documentation requirements determine whether the valve is suitable for purchase.
Before ordering, confirm the latest drawing revision, check the dimensional envelope, review the actuator and connection details, and make sure the RFQ package includes all required specification information.
Application / Specification Support
If your diaphragm valve drawing is incomplete, uses unclear material notes, or does not clearly match the project service conditions, NTGD Diaphragm Valve can help review the drawing, datasheet, and RFQ information before production or shipment.
For a broader product reference before sending the RFQ package, use the diaphragm valve product page as the product-level bridge, then confirm project-specific drawing, datasheet, and service details in the inquiry.
When sending an inquiry, include the drawing, valve tag, size, pressure class, medium, temperature, body material, lining, diaphragm material, actuator type, end connection, drawing revision, and any project documentation requirements.
A complete RFQ allows for a more thorough engineering review and helps identify potential fit-up, material, actuator envelope, or specification conflicts before they affect production, shipment, or site installation.
