Diaphragm Valve Flow Direction and Installation Orientation: Body Arrows, Drainability and Actuator Position

A diaphragm valve may pass fluid from either port, but that does not make both directions universally equivalent. The correct diaphragm valve flow direction can depend on the body geometry, manufacturer markings, differential pressure, isolation or throttling duty, drainability requirement, and actuator configuration.

The practical risk is not limited to whether the valve opens. Accepting a valve as “fully bidirectional” without checking its documented direction can overlook a preferred pressure side, a reverse-pressure limitation, a drainability requirement, or an accessory arrangement that later forces rework.

Start with the selected valve, not with a general rule. Check the body for a flow arrow, inlet or outlet designation, drain mark, or engraved orientation instruction. Match those markings to the GA drawing and datasheet, then confirm the applicable installation, operation, and maintenance manual. When the physical valve and the product documents do not resolve the question, obtain written clarification before installation acceptance or commissioning.

This guide separates process flow direction from preferred direction, pipeline position, valve-body rotation, drainability orientation, and actuator position. These decisions interact, but none can substitute for the others.

Quick Answer: Does a Diaphragm Valve Have a Flow Direction?

The Short Engineering Answer

There is no single flow-direction rule for every diaphragm valve.

Many two-way diaphragm valves can physically pass fluid from either port. A selected valve may still have a preferred or required installation direction because of its body shape, differential-pressure rating, shutoff behavior, throttling duty, port convention, drainability requirement, or approved assembly configuration.

Use this working rule:

Treat a diaphragm valve as direction-sensitive whenever the body marking, drawing, datasheet, IOM, or application requirement identifies a preferred inlet, outlet, flow arrow, orientation, reverse-pressure condition, throttling duty, or formal drainability requirement. Treat both directions as fully equivalent only when the applicable product data supports that conclusion for the intended service.

If any of those triggers exists, stop relying on the generic word “bidirectional.” Verify the direction before installation acceptance; otherwise, the project may approve an arrangement that conflicts with documented limits or fails the intended drainage requirement.

Why “Bidirectional” Does Not Mean “Equivalent in Both Directions”

“Bidirectional” can describe a basic physical capability: fluid can enter either port and pass through the open valve. It does not automatically confirm that both directions have identical:

• shutoff performance under the same differential pressure;
• allowable reverse-pressure condition;
• throttling stability;
• diaphragm and seat loading;
• drainability;
• actuator or accessory arrangement;
• manufacturer approval.

A valve may therefore pass reverse flow and still be installed contrary to the preferred direction for the project. The engineering question is not only, “Can flow pass through the valve?” It is, “Is this body and service approved for this direction?”

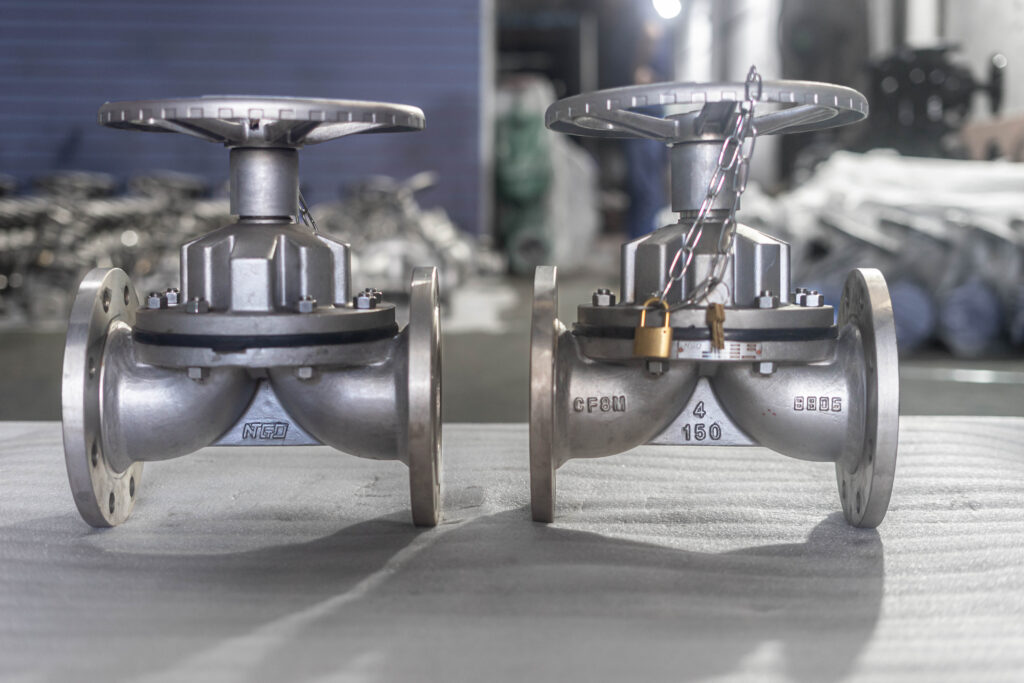

The First Three Checks: Body Marking, Model Data and IOM

Before deciding the diaphragm valve installation direction, complete three checks:

1. Body marking: Look for a flow arrow, I/O marking, drain mark, orientation mark, or engraved angle.
2. Model data: Match the valve tag, body style, size, and actuation to the GA drawing and datasheet.
3. IOM: Confirm the approved installation and operating instructions for the applicable series and configuration.

A body arrow is an important field clue, but its meaning must be read in context. It may identify process flow, a preferred pressure side, an inlet/outlet convention, or another product-specific instruction.

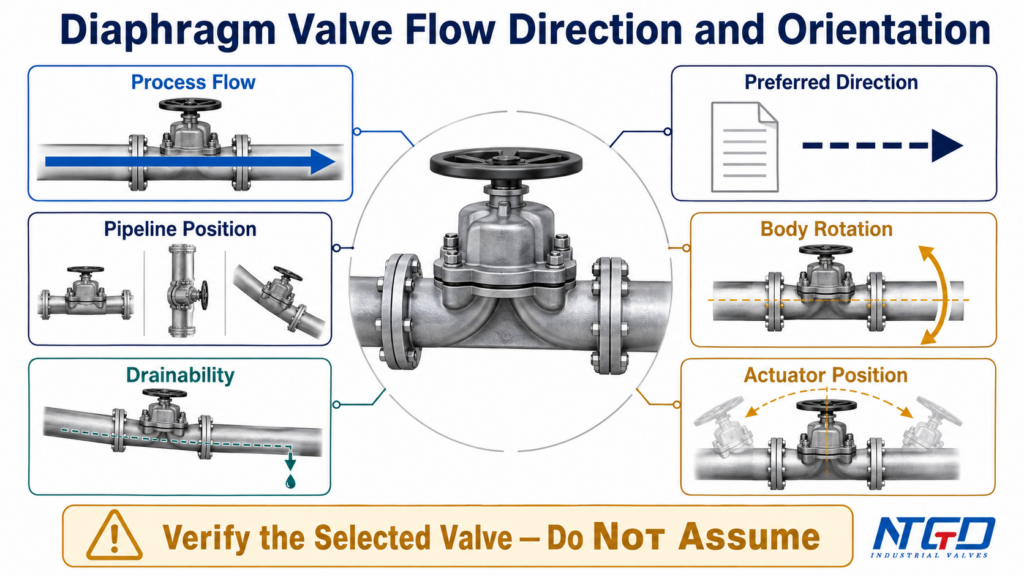

What “Flow Direction” and “Installation Orientation” Actually Mean

The phrase diaphragm valve orientation is often used for several different engineering decisions. Mixing them together is a common reason that a valve is installed correctly for one purpose but incorrectly for another.

Process Flow Direction

Process flow direction belongs to the piping system. It is established from the P&ID, line direction, upstream and downstream equipment, and operating sequence.

It tells the installer where the medium is intended to move. It does not, by itself, identify which valve port the manufacturer expects to be upstream.

Functional or Preferred Direction

The preferred direction belongs to the valve design and its approved service conditions. It may be shown by a body arrow, inlet/outlet marking, or a statement in the product documentation.

A preferred direction can exist even when the open flow path appears capable of reverse flow. It may be associated with rating, shutoff, throttling, port convention, or drainage. It does not, however, define the pipeline slope, body drain orientation, or actuator position by itself.

Pipeline Position: Horizontal, Vertical or Inclined

Pipeline position describes the direction of the pipe run. A diaphragm valve may be installed in a horizontal, vertical, or inclined line only when the selected design, support arrangement, drainage target, and applicable instructions permit it.

Pipeline position should never be used as a shortcut for deciding body rotation or actuator position.

Valve-Body Rotation Around the Pipe Axis

Two valves can be installed in the same horizontal pipeline and still have different body orientations. Rotating the body around the pipe axis changes the relationship between the internal low point, the weir, the outlet bore, and gravity.

This distinction becomes critical when the installation has a hygienic or low-hold-up requirement.

Drainability Orientation

Drainability orientation is the body rotation and piping relationship intended to allow liquid to leave the valve when the line is drained. It is a system-level requirement, not another name for the process-flow arrow.

A valve may operate normally in several positions yet require one approved orientation to meet the project’s drainage objective.

Actuator, Bonnet and Accessory Position

The actuator or handwheel position affects access, support, visibility, condensate behavior, tubing and cable routing, and the ability to remove the bonnet or service the diaphragm.

It is part of the installation-orientation review, but it does not automatically define the internal drain angle or process-flow direction.

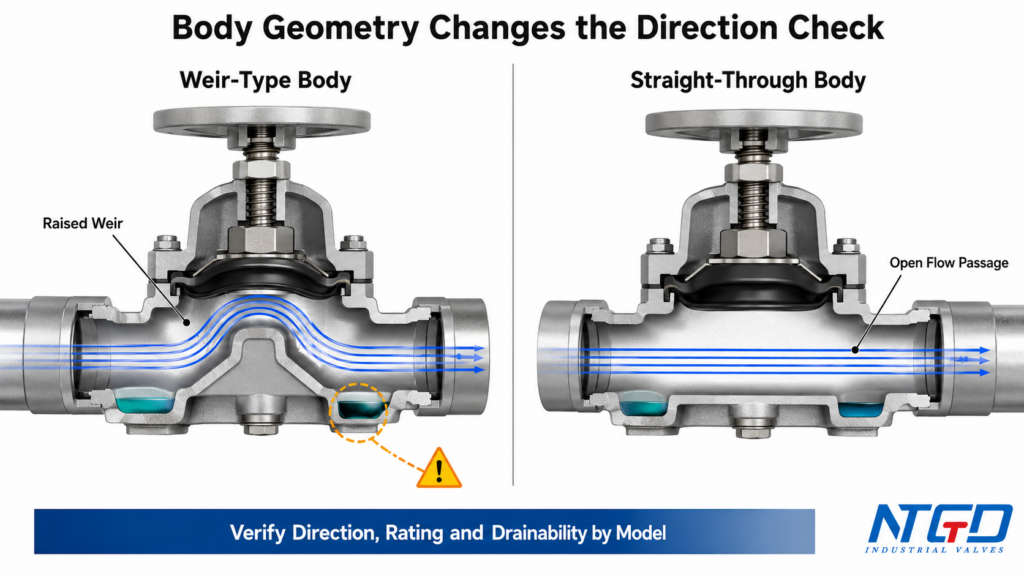

How Diaphragm Valve Body Geometry Changes the Direction Decision

The direction review must begin with the actual diaphragm-valve body. A weir-type valve and a straight-through valve do not have the same internal geometry, so a conclusion for one body style should not be transferred to another.

For a labeled view of the valve body, diaphragm, bonnet, compressor, stem, and actuator, see the diaphragm valve diagram and parts guide.

Weir-Type Flow Path and the Weir Low Point

A weir-type diaphragm valve closes by pressing the diaphragm against a raised weir in the body. The raised section redirects the flow path, and the open medium passes over the weir toward the opposite port.

For direction verification, the important points are:

• upstream and downstream pressure relationships may affect the applicable rating or operating guidance;
• the weir creates a defined internal high point and adjacent low regions;
• body rotation changes where liquid can remain when the line is drained;
• throttling duty can make preferred direction more significant than it is in simple on/off isolation.

The complete advantages and limitations of weir-type construction belong in a dedicated type or comparison guide. Here, the geometry matters because it changes the pressure-loading, throttling, and drainability questions that must be checked for the selected body. A direction rule for one weir design should not be treated as a rule for every diaphragm valve.

Straight-Through or Full-Bore Flow Path

A straight-through diaphragm valve has a more direct flow passage when open. That geometry may look more symmetrical from one port to the other, but visual symmetry does not prove that direction, rating, drainage, or approved mounting positions are equivalent.

The selected design can still include:

• defined inlet and outlet ports;
• a preferred pressure side;
• an actuator or bonnet orientation requirement;
• lining or body features that influence drainage;
• product-specific operating limits.

The product page and model datasheet should own the exact construction and performance details. For this decision, the key point is that a straight-through appearance does not remove the need to verify the applicable drawing, datasheet, and IOM.

For a deeper comparison of how raised-weir and open-channel body geometry affects pressure drop, solids handling, throttling, and drainability, see the weir type vs straight-through diaphragm valve guide.

Why Two-Way, Multiport and Block Bodies Need Model-by-Model Review

A standard two-way body has a simpler flow path than a multiport, tank-bottom, or block-body arrangement. Special bodies can include several inlets, outlets, branch connections, or internal paths that cannot be assigned from an external arrow alone.

For those configurations, port identification and orientation must be matched to the body drawing. General two-way guidance should not be used to assign ports on a special body.

For a broader map of two-way, 3-way, block, and other body arrangements, use the diaphragm valve types guide.

Once the body geometry is clear, the next question is whether “can flow both ways” means “should be installed either way.”

Bidirectional Flow vs Preferred Installation Direction

The central distinction is between flow capability and approved installation direction.

Misjudging any of these points can result in accepting a valve without confirming its reverse-direction rating, throttling condition, or drainability requirement. The table is therefore a screening tool, not permission to install the valve in either direction.

Can the Valve Pass Flow in Both Directions?

For many conventional two-way diaphragm valves, an open flow path can permit flow from either side. This is why broad references often call diaphragm valves bidirectional.

That statement is only an initial mechanical observation. Installation acceptance still depends on the body design, pressure condition, service duty, and applicable product data.

Why a Manufacturer May Still Specify a Preferred Direction

A preferred direction may be specified because:

• the valve was rated or tested with pressure applied from a particular side;
• diaphragm and seat loading may differ under reverse differential pressure;
• the product uses an inlet/outlet convention;
• throttling is approved or expected to be more stable in one direction;
• body or port geometry supports a particular drainage arrangement;
• the actuator or accessory configuration is tied to an approved assembly.

The reason should be taken from the applicable product documents rather than inferred from the outside shape of the valve.

Differential Pressure, Isolation and Throttling Considerations

Differential pressure is the pressure difference across the valve. Its direction determines which side of the diaphragm and seat sees the higher upstream pressure when the valve is closed or partially open.

For isolation service, verify whether the valve can shut off against the stated differential pressure and whether reverse pressure is permitted. For throttling service, the partially open diaphragm and flow path may be more sensitive to direction, pressure loading, and operating range.

This article does not replace a sizing or control analysis. Record the expected upstream pressure, downstream pressure, maximum differential pressure, and service duty, then compare them with the applicable product data.

When Reverse Direction May Change Rating or Performance

Reverse flow may be acceptable for one valve and restricted for another. Possible differences include:

• a lower allowable differential pressure in one direction;
• different shutoff or leakage behavior;
• reduced suitability for throttling;
• loss of the intended drainage arrangement;
• conflict with an approved port or actuator configuration.

These are model-by-model possible outcomes, not a universal failure mode. An already reversed valve must be evaluated against its documentation and actual service; the word “diaphragm” alone cannot establish whether the installation is acceptable or requires reorientation.

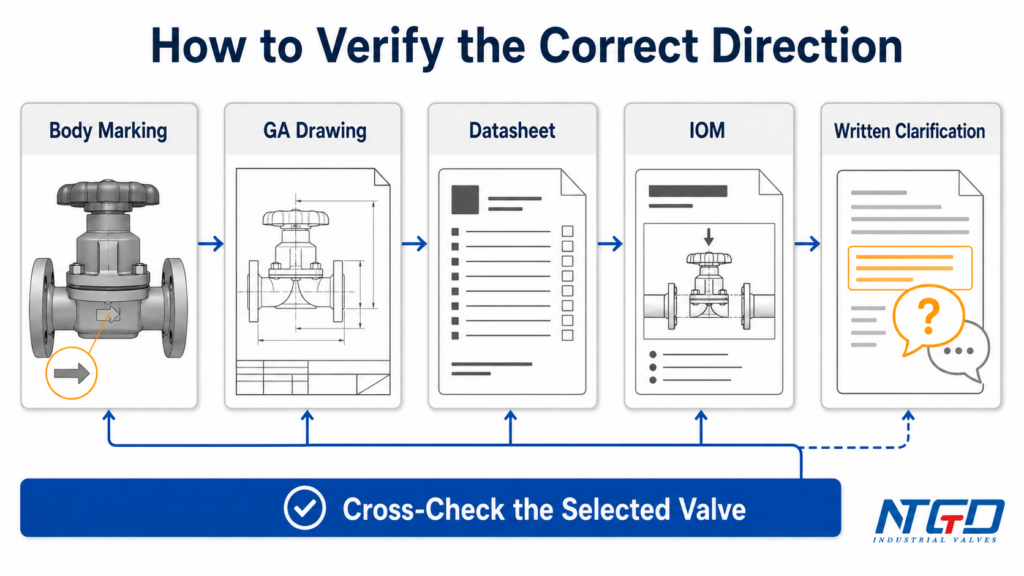

How to Verify the Correct Direction from Markings and Documents

Field verification is a cross-check, not a universal ranking in which one evidence source automatically cancels all others. Body markings provide the fastest physical clue; drawings and datasheets provide model context; the IOM states approved installation instructions; written clarification resolves remaining conflicts or ambiguity.

Flow Arrows and Preferred-Direction Arrows

A cast, stamped, etched, or labeled arrow may indicate required or preferred process flow. Treat it as an installation instruction until the applicable product documents establish its exact meaning.

Do not assume that an arrow is optional because the valve appears capable of reverse flow. The arrow may relate to pressure rating, throttling, port convention, or another design condition.

Inlet / Outlet and I / O Port Markings

Some diaphragm valves use I and O, inlet/outlet wording, or numbered ports instead of a conventional flow arrow. These markings can be especially important on compact, panel-mounted, high-purity, or special-port bodies.

Match the designation to the drawing. The external position of the actuator, handwheel, or accessory does not reliably identify the inlet.

Drain Marks, Orientation Marks and Engraved Angles

A drain mark or orientation mark is not necessarily a process-flow arrow. It may show how the body should be rotated for a specific drainage condition.

Some products include an engraved angle or reference mark that must be positioned according to the applicable product instructions. The location, meaning, and acceptable tolerance are not universal.

Handle or Position Indicators Are Not Process-Flow Arrows

A lever, handwheel, or actuator indicator normally shows valve position or actuator travel. It does not automatically show the direction of process flow.

Confusing an open/closed indicator with a body flow arrow can produce an incorrect piping decision even when the actuator operates normally.

GA Drawing, Datasheet, IOM and Manufacturer Clarification

For help separating a structure diagram from a GA drawing and checking the dimensions, notes, revision, and RFQ information that should accompany the valve, see the diaphragm valve drawing guide.

What to Do When the Valve Has No Clear Arrow

The absence of a visible arrow does not prove that any direction is acceptable.

1. Confirm the manufacturer, series, size, body type, and actuation.
2. Check for I/O, port numbers, drain marks, or cast references elsewhere on the body.
3. Review the GA drawing and datasheet for port identification.
4. Review the IOM for installation and reverse-pressure limitations.
5. Compare the arrangement with the P&ID and piping isometric.
6. Obtain written clarification when the direction remains unclear.
7. Record the accepted orientation before insulation, enclosure, or commissioning makes the markings difficult to inspect.

Without that record, the same uncertainty can reappear during maintenance or replacement, creating avoidable rework and document-control cost.

Markings and documents establish the direction rule. The next layer is how the valve physically sits in the pipeline.

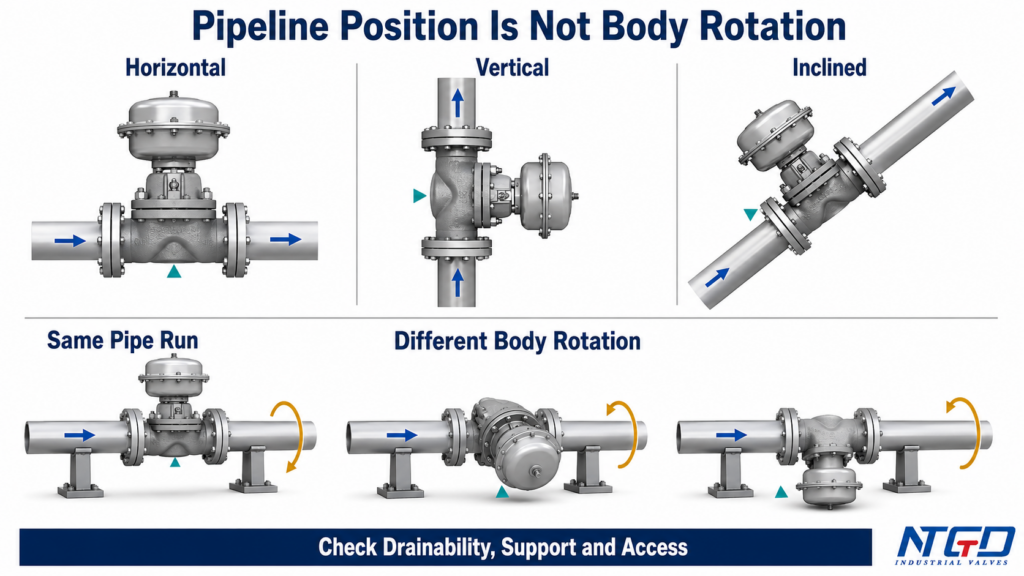

Pipeline Position, Valve-Body Rotation and Mounting Constraints

Pipeline position answers, “Which way does the pipe run?” It does not answer, “How should the valve body be rotated?” Treating those questions as identical can create a drainage, access, or support error even when the process-flow direction is correct.

Horizontal Pipelines

A horizontal pipeline does not define the diaphragm valve mounting orientation. The body can still be rotated through several positions around the pipe axis.

For ordinary industrial isolation, the priorities may be documented flow direction, support, and service access. For hygienic service, the relationship between the body low point, weir, outlet bore, and line slope can become an acceptance requirement.

Vertical Pipelines

A vertical line changes the gravity relationship but does not remove the need for product verification. Confirm that the valve, diaphragm, actuator, and accessories are permitted in that position.

A vertical pipeline may drain in the line direction while retaining liquid in part of the valve body. Internal geometry, not the pipe direction alone, determines the result.

Inclined Pipelines

An inclined pipeline combines line slope with valve-body rotation. Confirm which way the line is intended to drain and how the body is rotated relative to that slope.

Do not copy a drain angle from another body size, connection, or product series.

Why Pipeline Position Is Not the Same as Body Rotation

Pipeline position describes the line. Body rotation describes the valve’s orientation around that line.

A horizontal pipe can contain a correctly oriented valve, an under-rotated valve, or an over-rotated valve. The distinction becomes visible only after the body geometry and drainage target are defined.

Support, External Piping Load and Maintenance Clearance

The valve should not be used to correct misaligned piping or carry avoidable external loads. Large actuators and accessories may require support where their weight creates a significant bending moment on the valve body or pipeline.

The orientation review should also confirm:

• space to remove the bonnet or actuator;
• access to body bolts and service points;
• visibility of the valve tag and markings;
• safe access to the handwheel or actuator;
• room for tubing, cables, drains, vents, and accessory covers;
• the ability to document the final arrangement.

This guide only checks support, external load, and clearance as they affect direction and orientation. Detailed pipe-support design, flange alignment, gasket selection, bolting, testing, and commissioning belong in the project installation specification or a dedicated installation guide.

Drainability Orientation: Why There Is No Universal Angle

A diaphragm valve can be correctly installed for isolation and still fail a drainability requirement. Process flow, line slope, and body rotation must therefore be reviewed separately.

For hygienic and aseptic process valves, the EHEDG guideline on valve requirements identifies drainability as a general hygienic requirement and also notes that additional requirements vary by valve type.

Flow Direction Is Not Drain Direction

Process flow describes normal operation. Drain direction describes where liquid should move when the system is emptied.

They may be the same, opposite, or unrelated, depending on the process sequence and piping layout. A flow arrow does not automatically define a self-draining orientation, and a drain mark does not necessarily define normal process flow.

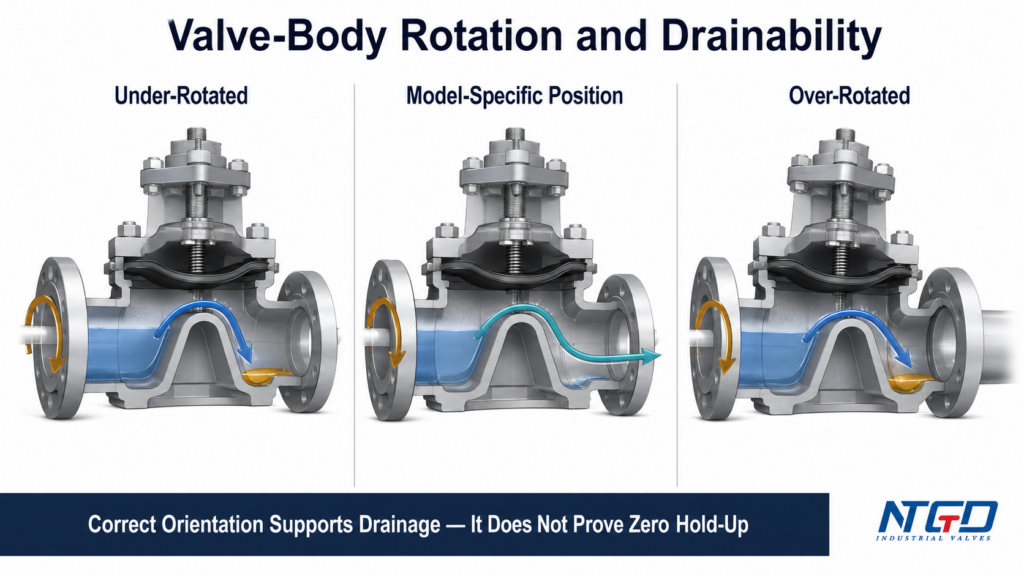

How Under-Rotation and Over-Rotation Can Create Pooling

In a weir-type body, the relationship between the weir, internal low point, and outlet bore changes as the valve rotates.

• Under-rotation can leave the weir or an adjacent body region acting as a barrier to gravity drainage.
• Correct product-specific rotation aligns the intended low path with the drain side.
• Over-rotation can create a different pocket where liquid remains near the weir or body wall.

Incorrect rotation can leave retained liquid, prevent the installation from meeting a stated drainability acceptance criterion, or create additional risk in hygienic and contamination-control service.

As a first field check, confirm whether the body low point and outlet bore face the intended drain side of the line. Final acceptance must still come from the applicable drain mark, drawing, or body-specific drain data—not from visual estimation of an angle.

Why Body Design, Size, Port ID and Connection Matter

The self-draining position can vary with:

• body construction and casting or forging geometry;
• diaphragm size;
• nominal valve size;
• port inside diameter;
• tube or pipe dimensions;
• end-connection standard;
• two-way, multiport, or block-body arrangement.

Two valves with the same nominal line size may not have the same internal bore or required rotation. Cross-brand drain-angle tables are therefore not reliable design tools.

Pipe Slope, Surface Finish, Viscosity and Adhesion

Drainability is a system result. Valve rotation is only one factor.

The 3-A sanitary design guidance likewise states that product-contact surfaces should be free-draining or properly sloped to prevent liquid pooling, reinforcing the need to evaluate line slope and installation together.

Body Marks and Product-Specific Drain-Angle Data

When a manufacturer provides a drain mark, hash mark, orientation line, or engraved angle, use it with the applicable drawing or drain data for the selected body.

Do not assume that a mark must always be positioned at twelve o’clock, that all marks are located on the same part of the body, or that one size uses the same angle as another.

Correct Orientation Does Not Guarantee Zero Residue

A correctly oriented valve can support drainage, but orientation alone does not prove zero hold-up. Residual liquid can also be affected by the medium, surface condition, pipe geometry, line slope, product tolerance, and cleaning sequence.

Orientation is one necessary condition, not the complete acceptance method. Where formal hold-up limits apply, use the selected product data together with the project’s stated acceptance method; detailed measurement and validation belong in a separate drainability study.

Where cleanability, contamination control, surface finish, and documentation are part of the acceptance criteria, the sanitary vs industrial diaphragm valve guide provides the wider application boundary without replacing the model-specific orientation check.

Drainability addresses the body and process side. Actuator orientation addresses the access, support, and accessory side.

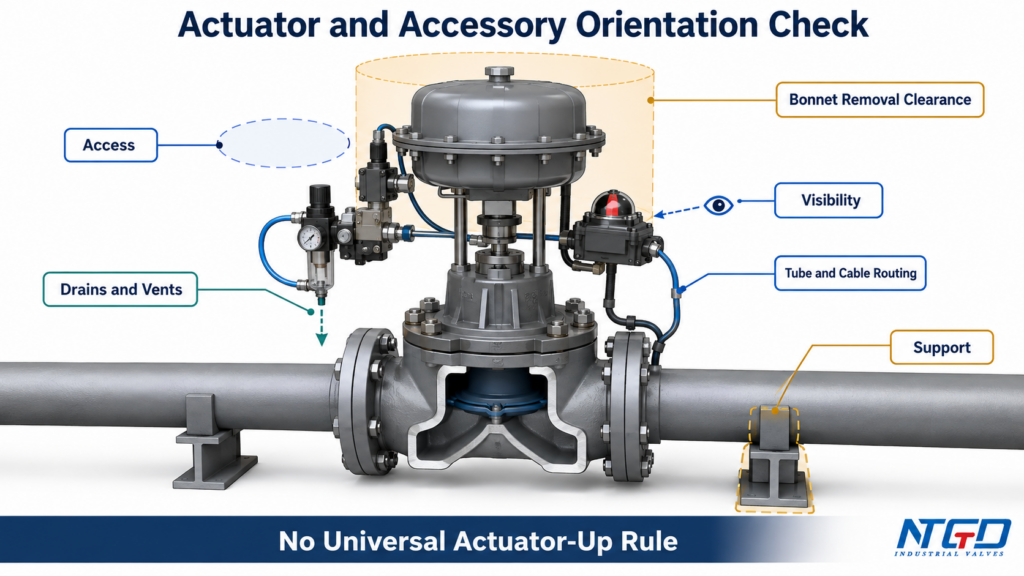

Actuator, Bonnet and Accessory Orientation

Actuator position is a practical part of diaphragm valve orientation, especially for automated valves. Review it after the process-flow, body, and drainage requirements are established.

Actuator or Handwheel Access

The handwheel or actuator should be accessible for operation, isolation, inspection, and emergency response. A position that is physically possible may still be unacceptable if the operator cannot reach it safely or verify valve position.

Bonnet Removal and Diaphragm-Service Clearance

Diaphragm replacement normally requires access to the bonnet or topworks. Confirm that nearby piping, insulation, structures, and equipment do not block removal.

This article does not provide the replacement procedure; it identifies clearance as an orientation requirement.

Actuator Weight, Support and External Loads

A pneumatic actuator can add weight and create an external moment on the valve and pipeline. The support arrangement should prevent that load from forcing the valve into an unintended position or overstressing the body and connections.

The support requirement depends on valve size, actuator design, piping layout, and project specification.

Solenoid, Switch Box, Positioner and Filter-Regulator Placement

Accessories should remain visible, serviceable, and protected from avoidable damage. Confirm that:

• the solenoid and air set can be inspected;
• the switch box can be opened and read;
• the positioner is accessible for verification;
• drains, vents, and exhaust paths are not obstructed;
• tubing and cables are not pulled tight or routed against hot or moving equipment.

Product-level actuator and topworks context is covered separately on the pneumatic diaphragm valve page; the current review remains focused on orientation, support, access, and accessory placement.

Condensate, Visibility and Tube / Cable Routing

An accessory position can create low points where moisture collects, especially in instrument-air components or enclosures. Follow the applicable accessory instructions and site environmental requirements.

Where practical, keep the valve tag, body marking, and actuator indication visible after installation. Installation photographs can preserve evidence before insulation or enclosure work.

Why There Is No Universal “Actuator-Up” Rule

An upright actuator is often convenient for access, condensate drainage, and bonnet-removal clearance, but it is not mandatory for every design.

The decision rests on four checks: whether the IOM permits topworks rotation; whether accessory drains, vents, and exhaust paths still function; whether support and external loads are acceptable; and whether operation, inspection, and service access remain practical. Do not rotate the topworks independently unless the design permits it.

What to Check If a Diaphragm Valve Is Installed Backwards

A reversed installation does not have one universal consequence. Work in this order: confirm valve identity → recheck markings and rating → review pressure and duty → verify drainability and actuator position → compare with actual operating evidence.

Confirm the Exact Valve Type and Model

Identify the manufacturer, series, size, body style, end connections, diaphragm, lining, and actuator. A weir-type two-way valve should not be assessed with guidance for a straight-through, multiport, or block-body valve.

Recheck the Arrow, I / O Marking and Manufacturer Rating

Confirm whether the visible marking is a process-flow arrow, preferred-direction arrow, inlet/outlet marking, or drain-orientation mark. Then check the applicable rating and reverse-pressure conditions.

Review Differential Pressure and Isolation or Throttling Duty

Record normal and maximum upstream and downstream pressures. Determine whether the valve is used for on/off isolation, frequent cycling, throttling, or a sequence with possible reverse pressure.

A direction that works at low differential pressure may still fall outside the approved maximum condition.

Check Drainability and Actuator / Accessory Orientation

A valve can be acceptable for basic isolation but unacceptable for hygienic drainage or service access. Review body rotation, line slope, actuator support, accessory position, and bonnet clearance as separate checks.

Inspect Actual Leakage, Control and Drainage Results

If the valve has already been commissioned, collect operating evidence rather than relying only on appearance. Relevant observations may include:

• whether the valve shuts off as required;
• whether leakage is within the project acceptance criteria;
• whether throttling is stable where applicable;
• whether the line and valve drain as intended;
• whether the actuator and accessories operate and remain serviceable.

Actual operation helps define immediate risk, but it does not cancel a clear restriction in the approved product documents.

Decide Whether Reorientation or Written Clarification Is Required

When the installation clearly conflicts with a required arrow, port designation, drain mark, or approved drawing, reorientation is the preferred corrective action before acceptance or commissioning. When the documents are unclear, submit complete valve identification and service data for written review before deciding.

Record the final disposition in the project file so the same question does not return during maintenance or replacement.

Field Verification and RFQ Checklist

Use this checklist before purchasing, installing, or accepting a diaphragm valve where direction or orientation may matter.

Verification status codes: D = confirmed by drawing / datasheet; F = field-verified; M = manufacturer clarification required; R = recorded in project file.

A complete RFQ should state the intended flow direction and any reverse-pressure condition rather than leaving them to be inferred. Where self-draining is required, define that requirement and request the applicable orientation data for the selected body, size, and connection.

FAQ

How do I know whether my diaphragm valve has a required flow direction?

Check the body for an arrow or I/O marking, match the valve to its drawing and datasheet, and then confirm the applicable IOM. Request written clarification when those sources do not agree.

Are diaphragm valves bidirectional?

Many two-way designs can pass flow in both directions. That does not prove equal shutoff, reverse-pressure rating, throttling, drainability, or approval in both directions.

What does the arrow on a diaphragm valve body mean?

It may indicate required process flow, preferred direction, an inlet/outlet convention, or another product-specific condition. Confirm its meaning in the drawing, datasheet, or IOM.

What should I do if no arrow is marked?

Identify the valve, check for I/O or port markings, then review the drawing, datasheet, and IOM. Do not assume that no arrow means any direction is acceptable.

Can a diaphragm valve be installed backwards?

It may still pass flow, but acceptability depends on the marking, rating, differential pressure, duty, and drainability requirement. Check the marking and product data first, then review pressure, service duty, and body orientation.

Is flow direction the same as drain direction?

No. Process flow describes normal operation; drain direction depends on gravity, pipe slope, body rotation, and the internal low point.

Can I mount a diaphragm valve in a vertical or horizontal pipe run?

Only when the selected valve, support arrangement, actuator, and drainage requirement permit it. The pipe-run direction does not by itself define the correct body rotation.

Is there one standard self-draining angle for diaphragm valves?

No universal angle applies to every diaphragm valve. The required orientation can vary with body design, size, port ID, connection, line slope, and applicable product data.

Conclusion

Diaphragm valve flow direction should be verified as a product- and service-specific engineering decision, not reduced to a universal “bidirectional” statement. The open valve may pass flow from either side, yet the selected product can still have a preferred direction, port convention, pressure limitation, throttling recommendation, or drainage requirement.

A reliable review separates six issues: process flow, preferred direction, pipeline position, body rotation, drainability, and actuator / accessory position. Start with the body marking, cross-check the drawing and datasheet, then confirm the IOM. When a valve is already installed in reverse, assess the body, differential pressure, duty, drainage target, and accessory arrangement before accepting the installation or requiring reorientation.

For hygienic or self-draining service, do not use a generic angle. Obtain the orientation information for the selected body, size, and connection, and verify the final installation against the project acceptance method.

Application / Specification Support

If the body marking, preferred direction, reversed installation, drainability setup, or actuator position remains unclear, NTGD Diaphragm Valve can support an application and documentation review before acceptance or RFQ completion.

Provide three groups of information:

• Valve identification: model or body style, size, end connection, materials, and actuation;
• Service data: medium, pressure, differential pressure, temperature, isolation or throttling duty, normal flow, and possible reverse flow;
• Installation evidence: pipeline position, body rotation, drainability requirement, accessory arrangement, and available drawing, datasheet, IOM, or site photographs.
