What Is Diaphragm Valve Position Feedback?
Diaphragm valve position feedback answers a practical control question: Did the valve move to the position that the control system expected?
In a typical automated on/off application, the actuator receives a command to open or close. A separate indicator, switch, or sensor follows the actuator or stem movement and provides evidence that a defined position has been reached. That evidence may be visible locally, available as an electrical signal, or both.
The key word is feedback. A command tells the actuator what to do. Feedback reports what the sensing device detected after the command was issued.
Discrete Open/Closed Feedback for Automated Diaphragm Valves
This guide focuses on discrete position feedback. The system normally reports one or more defined states rather than measuring every point of travel continuously.
Common states include:
- valve open;
- valve closed;
- neither open nor closed during travel;
- an optional intermediate or special verification point when the project requires it.
For a diaphragm valve limit switch arrangement, the open and closed points are established by the actuator stroke, the sensing target or linkage, and the switch adjustment. The control system then receives a binary status from a dry contact or powered sensor output.
Discrete feedback is especially useful when the valve status is required for batch sequencing, equipment permissives, remote operator indication, alarm generation, or process interlocking.
Local Visual Indication vs Remote Electrical Feedback
A local position indicator shows the valve state to a person standing near the valve. It may use a rising rod, flag, beacon, colored marker, or another mechanical display linked to actuator movement.
Remote electrical feedback performs a different task. It sends an electrical state to a PLC, DCS, control panel, relay circuit, or other equipment. A device may combine both functions, but the presence of a local indicator does not automatically mean that electrical feedback is available.
This distinction matters during specification review. A drawing that says “position indicator” may only require local visibility. A control narrative that requires an open or closed input needs an electrical output and a defined interface.
Position Feedback vs a Valve Positioner
A valve positioner is normally associated with continuous or modulating control. It compares a command with valve travel and adjusts actuator pressure or output to move the valve toward the requested position. It may also provide continuous position information or diagnostics.
A discrete limit switch or proximity sensor does not perform that continuous control function. It normally confirms one or more set positions, such as fully open and fully closed.
For that reason, the following functions should not be treated as interchangeable:
Local visual indication
≠
Remote discrete open/closed feedback
≠
Continuous position measurement or positioning control
This page therefore follows the discrete open/closed path. If the project needs continuous travel measurement or modulating control, the RFQ must move to a positioner or continuous-feedback specification; otherwise the selected device, output type, and control interface may not match the application.
Command Signal vs Feedback Signal
In a pneumatic automated diaphragm valve, a control output may energize or de-energize a solenoid valve, which changes the air signal to the actuator. That is the command path.
A diaphragm valve limit switch or sensor detects movement and returns a status signal. That is the feedback path.
For the upstream choice between manual, pneumatic, and electric operation, review the diaphragm valve actuation selection guide; this article begins after that choice, at the position-confirmation layer.
The system can therefore detect situations such as:
- an open command was issued but open feedback did not arrive;
- a close command was issued but closed feedback did not arrive;
- both feedback inputs appear active when the design expects only one;
- neither input is active after the permitted travel time;
- the local indicator disagrees with the control-room display.
These conditions are useful for diagnostics, but the response to them depends on the project’s control logic.
How Linear Diaphragm Valve Position Feedback Works
The core engineering difference between diaphragm valve feedback and many common ball or butterfly valve switchbox arrangements is the motion being monitored.
A pneumatic diaphragm valve usually operates through linear actuator and stem travel. The feedback device must therefore detect a linear movement or use a linkage that accurately converts that movement into a switch or sensor action.
Actuator and Stem Linear Travel
When actuator pressure changes, the actuator spindle or stem moves along its travel axis. That movement is transferred to the diaphragm closure system inside the valve.
For a sectional view of the stem, compressor, diaphragm, and actuator force path, use the diaphragm valve diagram and parts guide.
A feedback device may monitor this motion in several ways, depending on the actuator design:
- a moving indicator rod passes a mechanical switch;
- a target attached to the stem or actuator piston approaches a proximity sensor;
- an internal linkage moves adjustable switching elements;
- a compact linear monitor mounts on top of the actuator and follows the full stroke;
- a manufacturer-specific accessory uses a dedicated mounting interface.
The arrangement varies with the actuator and feedback-device design. Do not assume that a generic rotary actuator switchbox fits a linear diaphragm actuator without a verified conversion mechanism and mounting interface. If a rotary cam or target arrangement is applied without validating it against the actual linear stroke, its trip points may not correspond to the valve’s true end positions, creating false open/closed indication, command–feedback mismatch, or an incorrect interlock input.
Open and Closed Sensing Points
An open sensing point is adjusted so that the corresponding output changes state when the valve reaches the defined open position. A closed sensing point is adjusted for the defined closed position.
The sensing point should be coordinated with actual actuator travel. If the switch is set too early, it may report “open” or “closed” before the valve has completed its intended stroke. If it is set too late, the actuator may reach its mechanical limit without producing the expected feedback.
Define what “open” and “closed” mean before setting the switches. For many on/off valves, the requirement is end-of-travel confirmation. In other cases, a specific process position or travel tolerance may need to be defined by the valve manufacturer, project specification, or functional test procedure.
From Switch or Sensor Output to PLC/DCS Digital Input

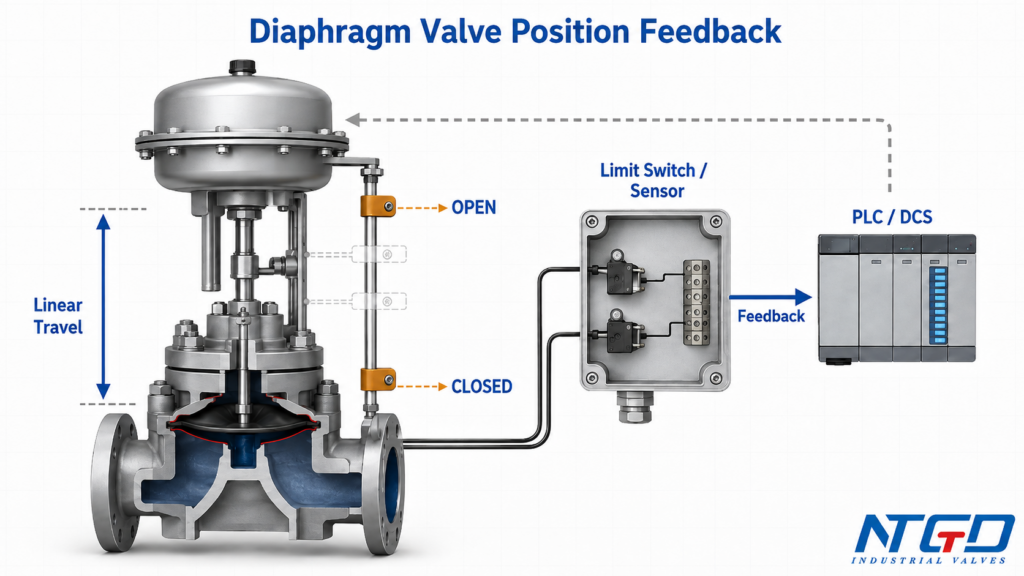

The feedback path can be summarized as:
Actuator or stem moves
→
Target, linkage, or indicator follows the linear travel
→
Switch or sensor changes output state
→
Terminal or cable carries the signal
→
PLC/DCS digital input receives the status
→
Operator display, alarm, permissive, or interlock uses that status
A mechanical microswitch may provide a dry-contact output. A reed, solid-state, or proximity device may require a supply voltage and a compatible input circuit. The field device, cable, terminal arrangement, control-system input type, and logic convention must therefore be specified as one interface rather than selected independently.
Why Mounting and Stroke Geometry Matter
The feedback device can only report accurately when its mechanical relationship to the actuator remains stable.
Important checks include:
- available actuator stroke;
- direction of travel;
- mounting interface;
- target location;
- linkage alignment;
- enclosure clearance;
- access for adjustment and maintenance;
- resistance to vibration or accidental movement;
- whether actuator or stroke-limiter adjustments change the switching points.
A switchbox that is physically mountable but does not follow the full linear stroke correctly may create unreliable status indication. Confirm compatibility at the actuator and accessory level, not only by valve size. If the RFQ does not define linear sensing range, target movement, mounting clearance, and adjustment access, the installed device may lack travel coverage, restrict the target, interfere with the enclosure, or require field rework.
Position Indicator, Limit Switch, Sensor, Switchbox and Positioner: What Is the Difference?
Valve automation terminology is not always used consistently. Some suppliers use “position indicator” for a local beacon, while others use it for an enclosure that also contains electrical switches. “Valve monitor,” “switchbox,” and “position feedback device” may also overlap.
The safest method is to classify the device by its actual function.
Local Position Indicator
A local position indicator provides a visible indication near the valve. It may move directly with the stem or actuator and show open, closed, or relative travel.
Its main value is field observation. It helps maintenance and commissioning personnel compare the physical indication with the control-system status. Unless electrical contacts or sensors are included, it does not provide remote feedback.
Mechanical Limit Switch and Proximity Sensor
A mechanical limit switch changes contact state when a moving part physically operates the switch mechanism. It can provide simple, direct open or closed feedback.
A proximity sensor detects a target without the same direct mechanical contact. Inductive sensors commonly detect a metallic target, while other sensor technologies may use magnetic or electronic principles.
The choice affects mounting, environmental resistance, power requirements, output type, maintenance, and compatibility with the control system.
Integrated Switchbox or Valve Position Monitor
A diaphragm valve switch box or linear valve monitor may combine several functions in one enclosure:
- a local visual position indicator;
- one or more mechanical or electronic sensing elements;
- adjustable open and closed points;
- a terminal block or cable connection;
- environmental protection;
- optional pneumatic or communication functions in some product families.
The presence of an integrated enclosure does not mean that all functions are included. The exact switch quantity, sensing method, output, enclosure rating, hazardous-area approval, and mounting arrangement must be checked against the actual device configuration.
Continuous Positioner as a Separate Control Function
A positioner belongs to a different control layer. It may use valve travel feedback internally to improve continuous positioning and may provide analog or digital information.
This article does not cover positioner sizing, 4–20 mA control loops, network communication, or advanced diagnostics. Those functions should be reviewed separately when the diaphragm valve is intended for modulating control rather than simple open/closed service.
Feedback Device Role Comparison
| Device or function | Local visual status | Discrete electrical output | Continuous position or active control | Typical purpose | Key limitation to confirm |
|---|---|---|---|---|---|
| Mechanical position indicator | Yes | No, unless switches are added | No | Field observation | Does not automatically provide PLC/DCS feedback |
| Mechanical limit switch | Optional | Yes | No | Open/closed end-position confirmation | Contact wear, adjustment, enclosure, and load rating |
| Reed switch | Usually optional | Yes | No | Magnetically actuated discrete feedback | Target arrangement, power/interface, and environmental suitability |
| Solid-state or proximity sensor | Usually optional | Yes | No | Non-contact discrete feedback | Supply voltage, output type, target, and input compatibility |
| Integrated switchbox or valve monitor | Usually | Usually | Sometimes, depending on model | Combined local and remote indication | Exact functions vary by product configuration |
| Valve positioner | Sometimes | May provide status outputs | Yes | Modulating control and travel regulation | Separate control function; not equivalent to a simple limit switch |
Feedback Device and Sensing Options
No sensing method is automatically best for every diaphragm valve. The correct choice depends on actuator geometry, cycle demand, environment, electrical interface, maintenance practice, and project requirements.
Mechanical Limit Switches
Mechanical limit switches are widely understood and can provide straightforward contact outputs. They are often suitable where the actuator movement can reliably operate an adjustable switch mechanism.
Their practical advantages may include:
- simple status logic;
- dry-contact availability;
- easy continuity testing;
- clear open and closed switching points;
- compatibility with conventional relay or digital-input circuits.
Review mechanical wear, contamination, corrosion, adjustment security, contact rating, and enclosure protection. Keep the switch mechanism within its intended travel and operating force. Because the trip point is physically adjusted and later reverified, accessible mounting is a selection requirement rather than merely a maintenance convenience.
Reed and Solid-State Switches
A reed switch is typically actuated by a magnetic field. It can provide discrete status without the same direct mechanical contact at the sensing element.
Solid-state switches use electronic components rather than conventional mechanical contacts. They may offer compact installation and high switching repeatability, but they often require a defined supply and compatible input circuit.
For both types, specify:
- whether the output is a dry contact or powered output;
- required voltage and current limits;
- two-wire or three-wire arrangement;
- polarity or leakage-current considerations where applicable;
- target or magnet compatibility;
- environmental and hazardous-area suitability.
Inductive and Other Proximity Sensors
Inductive proximity sensors detect a metallic target without physical contact at the sensing face. This can be useful where contact wear, aggressive contamination, or frequent cycling makes a non-contact arrangement attractive.
However, non-contact does not mean installation-independent. The sensing distance, target material and geometry, alignment, temperature range, enclosure, cable, and output type must match the application.
Other proximity technologies may be available for specific designs, but the same principle applies: the sensor must detect the actuator’s linear movement reliably and provide an output that the control system can interpret correctly.
How to Compare Reliability, Environment, Maintenance and Interface Needs
| Sensing method | Contact or non-contact | Typical output form | Environmental considerations | Maintenance considerations | Main limitation to verify |
|---|---|---|---|---|---|
| Mechanical microswitch | Contact-actuated | Dry contact is common | Enclosure, moisture, dust, corrosion, vibration | Inspect mechanism and adjustment; verify contact condition | Mechanical alignment, wear, contact rating |
| Reed switch | Magnetically actuated | Contact or electronic arrangement, depending on design | Magnet/target stability, temperature, enclosure | Check target position and electrical operation | Correct magnetic target and input compatibility |
| Solid-state switch | Electronic | Powered discrete output | Temperature, electrical noise, ingress protection | Usually limited mechanical wear; electrical diagnosis may be required | Supply voltage, leakage current, polarity, output type |
| Inductive proximity sensor | Non-contact metallic target detection | Powered discrete output | Contamination, corrosion, washdown, target material, hazardous area | Check sensing gap, target alignment, cable and output | Sensing distance, target geometry, 2-wire/3-wire or NAMUR/PNP compatibility |
| Integrated linear monitor | Depends on internal device | One or more discrete outputs; other functions may be optional | Enclosure and certification depend on exact model | Access, adjustment method, internal terminals | Actuator/stroke compatibility and actual included functions |
Base the final choice on the actual linear stroke, target movement, electrical interface, and environment. Claims that one technology is inherently more reliable must yield to exact device data and installed conditions; likewise, labels such as “maintenance-free,” “corrosion-proof,” or “suitable for hazardous areas” require verification against the actual construction and approval.
How Open and Closed Signals Are Used in a PLC or DCS
The feedback device is only one part of the status loop. The output must be matched to the field wiring, terminal arrangement, digital input, and control philosophy.
Dry Contacts, NO/NC and SPDT Arrangements
A dry contact changes electrical continuity without supplying its own signal voltage. The control system or relay circuit provides the monitored voltage.
A normally open or normally closed description must be tied to a clearly defined reference state. That reference may be the unactuated switch state, valve closed state, loss-of-power state, or another project convention. Ambiguous NO/NC wording can create incorrect field logic even when the hardware is operating correctly.
An SPDT switch provides a common terminal and two switched paths. It may allow both normally open and normally closed circuits from one switch mechanism, but the final wiring should be based on the project’s cause-and-effect, diagnostic philosophy, and input design.
Powered sensors require a different review. The project may need to confirm supply voltage, current consumption, output type, polarity, input threshold, leakage current, and barrier or isolator requirements.
Open, Closed and Optional Intermediate Feedback Points
A common on/off arrangement uses:
- one feedback point for open;
- one feedback point for closed.
This allows the control system to distinguish the two end positions and identify the travel period between them.
Some applications may require an additional point, such as a partial-stroke verification position or a specific process permissive. That is a project decision rather than a default diaphragm valve configuration.
The required signal quantity should be defined before the device is selected. A switchbox with one output cannot provide independent open and closed confirmation unless the logic and device design specifically support that function.
Status Indication, Alarms, Permissives and Interlocks
Position feedback may be used for:
- operator display;
- valve-status confirmation;
- sequence progression;
- pump or equipment permissives;
- mismatch alarms;
- interlocks;
- maintenance diagnostics;
- proof that a commanded movement reached a defined detection point.
The switch does not decide what action to take. It only provides an input. Whether the system stops a pump, blocks a sequence, alarms the operator, or trips equipment depends on the programmed or hardwired logic.
Why the Control Logic Must Be Defined Separately
A reliable field signal can still produce the wrong operational result if the logic is unclear.
Define:
- which state is considered normal;
- whether the input is energized or de-energized in that state;
- acceptable travel time;
- how simultaneous open and closed inputs are handled;
- how neither input is handled;
- whether loss of power should appear as a fault;
- whether an alarm, permissive, or interlock is required;
- what operator action is expected after a mismatch.
These decisions belong in the control narrative, cause-and-effect documentation, I/O list, or project logic documentation. The valve article can identify the interface, but it should not replace the project’s PLC or DCS design.
On the engineering-document side, the diaphragm valve symbol guide explains how the valve tag, actuator or control marker, project legend, and datasheet connect the field device to the P&ID package.
Feedback Signal Planning for PLC/DCS
| Required state or event | Possible field output | Control-system input | Typical use | Verification point | Project decision needed |
|---|---|---|---|---|---|
| Valve open | Open limit switch or sensor | Digital input | Status, permissive, sequence confirmation | Confirm after full commanded open stroke | Definition of “open,” logic state, travel time |
| Valve closed | Closed limit switch or sensor | Digital input | Status, isolation sequence, alarm logic | Confirm after full commanded close stroke | Definition of “closed,” logic state, travel time |
| Valve travelling | Neither end signal, depending on logic | Derived logic | Transit indication or timer | Compare command time with end feedback | Maximum allowed travel time |
| Invalid dual indication | Both end signals active when not expected | Derived logic | Fault alarm | Function test both inputs | Whether any overlap is physically acceptable |
| Optional intermediate point | Additional switch or sensor | Digital input | Partial-stroke or process-specific permissive | Confirm defined travel point | Whether the point is required and how it is adjusted |
| Feedback failure | Usually a PLC/DCS logic condition derived from command state, open/closed inputs, travel timing, or contradictory status—not a separate field switch output | Derived logic | Alarm, maintenance action, sequence inhibit | Simulate the defined fault condition under the project procedure | Response, reset, and fail-safe philosophy |
How to Select Position Feedback for a Pneumatic Diaphragm Valve
Start selection with the valve and actuator configuration, not with a generic switchbox part number.
The same nominal valve size may be supplied with different actuator designs, strokes, actions, materials, and mounting arrangements. Feedback compatibility therefore needs to be reviewed against the actual actuator assembly.
Product-level valve and actuator configurations belong on the pneumatic diaphragm valve page, while the checks below remain focused on feedback compatibility, signals, environment, and commissioning.
Actuator Type, Available Stroke and Mounting Interface
Confirm:
- pneumatic actuator type and action;
- available linear stroke;
- stem or indicator movement direction;
- mounting points or accessory interface;
- target or linkage arrangement;
- clearance for the enclosure and cable entry;
- access for adjustment and maintenance;
- whether the actuator includes a stroke limiter;
- whether diaphragm replacement or actuator adjustment changes the final travel.
Do not select a device intended for a rotary actuator merely because it contains two switches and a visual beacon. It needs a proven method to follow the linear diaphragm-actuator movement. If linear sensing range, target movement, mounting clearance, and adjustment access are not settled during the RFQ, the site may face inadequate stroke coverage, restricted target motion, enclosure interference, or a replacement mounting bracket.
Before approving mounting clearance, cable-entry orientation, or the accessory envelope, cross-check the diaphragm valve drawing guide against the datasheet and the actual actuator assembly.
Local Indication and Required Feedback Signals
Define whether the application needs:
- local visual indication only;
- open electrical feedback;
- closed electrical feedback;
- both open and closed feedback;
- an optional intermediate point;
- a separate fault or diagnostic output;
- independent contacts for different systems.
The specification should also state whether local and remote indication must agree at the same mechanical set points.
Enclosure, Washdown, Corrosion and Hazardous-Area Requirements
The enclosure should be selected for the actual environment. Relevant conditions may include:
- indoor or outdoor installation;
- water spray or washdown;
- dust;
- condensation;
- corrosive atmosphere;
- chemical exposure;
- ambient temperature;
- vibration;
- hazardous-area classification;
- required certification or installation method.
IP and NEMA designations should not be treated as automatically equivalent.
IEC 60529 IP ratings focus on enclosure ingress protection, while NEMA classifications use a different evaluation framework; review the IP and NEMA enclosure-rating distinction before translating one designation into another. Hazardous-area suitability must be confirmed for the exact switch, sensor, enclosure, cable entry, barrier, and installation arrangement.
For U.S. classified-location projects, verify the complete electrical installation against the OSHA hazardous-location equipment requirements, including the applicable class or zone, material group, temperature marking, wiring method, and equipment approval.
Electrical Interface, Cable Entry and PLC/DCS Compatibility
The electrical review should confirm:
- dry contact or powered sensor;
- NO, NC, or SPDT requirement;
- contact quantity;
- supply voltage;
- load or input characteristics;
- two-wire or three-wire arrangement;
- NAMUR, PNP, NPN, or other output type when applicable;
- cable entry size and thread;
- terminal block arrangement;
- grounding or bonding requirements;
- cable material and environmental suitability;
- compatibility with the PLC/DCS digital input or isolator.
These items should be coordinated before purchase. A mechanically compatible device can still be unusable if its electrical output does not match the control system.
Selection and Compatibility Factors
| Factor | What to confirm | Why it matters | Risk if omitted | Primary source for confirmation |
|---|---|---|---|---|
| Actuator geometry | Linear stroke, movement direction, mounting interface | Determines how the device follows valve travel | Incorrect or unstable switching points | Actuator drawing and manufacturer data |
| Required positions | Open, closed, intermediate, or diagnostic signals | Determines switch/sensor quantity | Missing status or incomplete sequence logic | Control narrative and I/O list |
| Local indication | Rod, flag, beacon, or none | Supports field verification | Control-room status cannot be checked locally | Project specification and device configuration |
| Sensing method | Mechanical, reed, solid-state, inductive/proximity | Affects interface, environment, and maintenance | Premature failure or incompatible output | Device datasheet and application review |
| Electrical output | Dry contact, 2-wire, 3-wire, NAMUR, PNP/NPN, other | Must match the input circuit | No signal, false signal, or damaged interface | Electrical datasheet and I/O design |
| Contact/load rating | Voltage and current limits | Protects contact and input circuits | Welded contacts or unreliable operation | Exact device datasheet |
| Enclosure | Ingress, corrosion, washdown, outdoor exposure | Protects sensing and terminals | Moisture or contamination failure | Project environment and enclosure data |
| Hazardous area | Classification, approval, barrier or installation method | Required for compliant installation | Unsafe or non-compliant configuration | Project classification and exact certification |
| Cable and terminals | Entry thread, cable gland, terminal capacity, access | Affects installation and maintenance | Field modification or poor sealing | GA drawing and accessory datasheet |
| Commissioning access | Ability to stroke, adjust, and test | Enables correct set-up and maintenance | Unverified or inaccessible switching points | Installation plan and manufacturer instructions |
What Position Feedback Proves—and What It Does Not
Position feedback is valuable because it provides evidence that the sensing device detected a defined mechanical position. Its value is reduced when that evidence is interpreted more broadly than the system can support.
Commanded, Indicated and Actual Valve States
Three different states should be separated:
- Commanded state: what the control system requested.
- Indicated state: what the local indicator, limit switch, or sensor reported.
- Actual process state: what the valve and process are physically achieving.
These states normally agree in a correctly configured system, but they are not identical by definition.
An open command does not prove that the actuator moved. An open feedback signal does not prove that the switch was adjusted at the correct point. A closed feedback signal does not prove that the diaphragm is sealing against the weir or body as required under process conditions.
Closed Feedback Does Not Automatically Prove Leak-Tight Isolation
A closed switch usually confirms that the detector reached its configured closed point. It does not directly measure seat leakage, diaphragm condition, trapped solids, body deformation, process pressure, or the actual isolation result.
A valve may show closed feedback while still requiring separate verification because of:
- an incorrectly adjusted switch;
- incomplete actuator stroke;
- a stroke limiter set incorrectly;
- diaphragm wear or damage;
- process debris preventing full seating;
- mechanical damage or misalignment;
- unsuitable operating conditions;
- leakage that can only be identified by the applicable test or process verification.
Position feedback should support the isolation strategy, not replace valve testing, process confirmation, or the project’s isolation procedure. Treating a closed signal as leakage or isolation proof can release the next process step incorrectly or drive the wrong interlock decision; verify full stroke first, then apply the required valve test or plant isolation procedure.
For metallic industrial valves where it is the applicable product-standard reference, the ISO 5208 pressure-testing scope treats pressure-boundary integrity and closure tightness as separate examinations and tests rather than functions of a position switch.
Common Causes of Command–Feedback Mismatch
| Mismatch condition | Possible causes | First verification direction |
|---|---|---|
| Open command, no open feedback | Low or missing air supply, solenoid issue, actuator problem, mechanical obstruction, switch set too late, wiring fault, input fault | Check command, air, local movement, switch output, terminal signal, and DI in sequence |
| Close command, no closed feedback | Incomplete closing stroke, stroke limiter, process obstruction, switch misadjustment, sensor gap, wiring/input fault | Confirm full mechanical travel before changing logic |
| Feedback changes too early | Switching point set before the required end position, loose linkage, target misalignment | Re-stroke and reset against the defined mechanical position |
| Both open and closed active | Excessive overlap, wiring error, incorrect logic convention, internal device fault | Verify each output independently and compare with device design |
| Neither input active after travel | Insufficient stroke, both points misadjusted, loss of supply, cable or input fault | Compare local indicator, terminal output, and control input |
| Local indicator and PLC/DCS disagree | Indicator linkage error, electrical switch misadjustment, wiring/logic inversion | Establish actual mechanical position, then verify each indication layer |
A mismatch should be diagnosed from the physical valve outward: command, air supply, actuator movement, local indication, sensor output, terminal wiring, input status, and logic interpretation.
When an Alarm or Interlock Depends on Project Logic
The feedback device provides status. The project logic decides the consequence.
For example, the same missing closed signal could be configured to:
- show an operator warning;
- block the next sequence step;
- stop a pump;
- prevent opening another valve;
- initiate a trip;
- create a maintenance notification only.
No limit switch performs all of these actions automatically. The required response must be documented and function-tested.
Feedback loss must also be separated from the valve’s mechanical fail action. A valve may move to its spring-return position after loss of air while the electrical feedback circuit is unavailable, or the feedback may fail while the valve remains mechanically in position. Treating feedback loss as proof that the valve completed its fail-safe movement can produce the wrong interlock, reset, or maintenance decision; verify the feedback circuit and the actual valve position independently.
For the separate failure-state logic of air-to-open, air-to-close, loss of air, and the intended final valve position, refer to the pneumatic diaphragm valve fail-safe position guide.
Commissioning and Functional Verification
A diaphragm valve position feedback system should be verified as an integrated mechanical and electrical loop. Testing only the contact at the workbench does not prove that the installed valve, actuator, field wiring, and control-system logic agree.
Commissioning should follow the manufacturer’s instructions, project procedures, isolation requirements, and site safety controls.
Pre-Commissioning Mounting and Linkage Checks
Before stroking the valve, confirm:
- the feedback device is designed for the actuator and available stroke;
- the mounting hardware is secure;
- the indicator, target, or linkage moves freely;
- no cable or enclosure part interferes with actuator movement;
- the open and closed sensing elements can be reached within the actual stroke;
- cable entries are sealed and terminals are secure;
- the device and wiring match the area classification and electrical design;
- the valve can be operated safely under the planned test condition.
Setting or Teaching the Open and Closed Points
A general commissioning sequence is:
- Move the valve to the mechanically verified closed position.
- Confirm the local position indication.
- Adjust or teach the closed sensing point according to the device instructions.
- Move the valve through its full stroke to the mechanically verified open position.
- Confirm the local position indication.
- Adjust or teach the open sensing point.
- Cycle the valve several times and confirm repeatable switching.
- Check that the opposite signal is not active when the design expects only one end state.
- Confirm that the switching points remain stable after the enclosure is closed and the final cable arrangement is in place.
The exact adjustment method depends on the product. Mechanical cams, screws, teach functions, magnetic targets, or fixed sensors should not be adjusted using a generic procedure that conflicts with the manufacturer’s instructions.
Verifying Terminal Output and PLC/DCS Inputs
Test in the order physical valve position → local indication → field output → next termination point → PLC/DCS input → logic response. This sequence separates mechanical setting, field wiring, I/O, and software interpretation faults; skipping a layer can move the diagnosis to the wrong part of the loop.
Testing should progress through each layer:
- Verify the physical valve position.
- Verify the local visual indication.
- Measure or observe the field-device output at the terminal.
- Verify continuity or powered-sensor output as applicable.
- Confirm the correct signal at the next accessible termination point, such as a local junction box, marshalling cabinet, or control panel, as required by the installation practice.
- Confirm the PLC/DCS digital input.
- Confirm the operator display or valve faceplate.
- Confirm the expected alarm, permissive, sequence, or interlock response.
- Record the results in the project test documentation.
Record where the signal first becomes incorrect; that point usually identifies the layer requiring correction.
Rechecking After Actuator, Stroke-Limiter or Diaphragm Adjustment
Any change that affects final travel can affect feedback accuracy.
Repeat the verification after:
- actuator replacement or repair;
- diaphragm replacement;
- stroke-limiter adjustment;
- linkage or indicator adjustment;
- switchbox removal and reinstallation;
- sensor replacement;
- control-system input changes;
- maintenance that changes the valve’s closing or opening position.
The final functional test should compare commanded state, actual observed travel, field output, PLC/DCS input, and control response.
Diaphragm Valve Position Feedback RFQ and Specification Checklist
A useful RFQ should define the required feedback function before requesting a specific accessory. This gives the supplier enough information to confirm mechanical compatibility, electrical interface, environmental suitability, and test scope.
Valve, Actuator, Stroke and Mounting Data
Provide or confirm:
- diaphragm valve type and service;
- valve size, pressure class or project rating, body/lining/diaphragm information as applicable;
- actuator type and action;
- supply-air condition where relevant;
- available linear stroke;
- actuator model or drawing when available;
- mounting interface;
- local clearance and access requirements;
- stroke-limiter or manual-override details that may affect travel;
- required mounting orientation if it affects the accessory.
Required Signals, Contacts and Electrical Ratings
Define:
- open feedback required or not;
- closed feedback required or not;
- optional intermediate position;
- local visual indication requirement;
- number of independent outputs;
- dry contact or powered sensor;
- NO, NC, SPDT, or other arrangement;
- supply voltage and input type;
- contact voltage/current limits;
- two-wire, three-wire, NAMUR, PNP/NPN, or other interface where applicable;
- separate systems or redundant contacts if required by the project.
Environmental, Enclosure and Hazardous-Area Requirements
State:
- indoor or outdoor location;
- ambient temperature range;
- washdown or water exposure;
- dust and contamination;
- corrosion or chemical atmosphere;
- enclosure requirement;
- hazardous-area classification;
- required certification and installation method;
- cable-gland and cable-entry requirements;
- enclosure and hardware material expectations where relevant.
Testing, Documentation and Approval Requirements
Clarify:
- factory functional test requirements;
- open and closed set-point verification;
- contact or sensor output test;
- local-indicator verification;
- terminal identification;
- wiring diagram requirement;
- datasheet and certificate requirements;
- GA or mounting drawing requirement;
- inspection or witness requirement;
- site commissioning responsibility;
- final I/O and cause-and-effect verification responsibility.
RFQ / Specification Checklist
Lock the required open/closed states, local indication, electrical output, and environmental conditions before matching a device. Treat the table as a master list: extract only the applicable rows and convert them into supplier-completed RFQ data fields instead of preselecting a switchbox SKU.
| Requirement group | Data to specify | Example decision type | Why supplier confirmation is needed |
|---|---|---|---|
| Valve and service | Valve type, size, materials, media, pressure/temperature context | Application suitability | Confirms the feedback option is being matched to the correct valve assembly |
| Actuator | Type, action, stroke, model/drawing, stroke limiter | Mechanical compatibility | Determines mounting, target, linkage, and sensing range |
| Required positions | Open, closed, intermediate, redundant or diagnostic signals | Signal quantity | Determines switch/sensor count and adjustment points |
| Local indication | Required/not required; visual style if project-controlled | Field-operability requirement | Confirms whether a beacon, rod, flag, or other display is included |
| Output type | Dry contact, reed, solid-state, inductive/proximity | Electrical architecture | Determines supply, input compatibility, and maintenance approach |
| Contact/interface | NO/NC/SPDT, 2-wire/3-wire, NAMUR, PNP/NPN, ratings | I/O compatibility | Prevents mismatch with PLC/DCS or relay circuits |
| Enclosure/environment | Ingress, washdown, corrosion, outdoor, temperature | Environmental protection | Confirms the complete enclosure and cable arrangement, not only the sensor |
| Hazardous area | Classification, certification, barrier/isolator needs | Compliance | Must be confirmed for the exact device and installation |
| Cable/terminal | Entry thread, gland, terminal capacity, cable type | Installation detail | Avoids field modification and sealing problems |
| Testing | FAT, set-point verification, output test, documentation | Acceptance criteria | Defines what evidence is required before shipment and at site |
| Documentation | Datasheet, drawing, wiring diagram, certificates, test record | Project deliverables | Ensures configuration can be reviewed and maintained |
The checklist is a requirements framework, not a universal configuration. Finalize only the fields that apply to the actuator design, service, control philosophy, environment, and selected device.
Frequently Asked Questions
Does every automated diaphragm valve need a limit switch?
No. A limit switch is usually specified when the project needs remote confirmation, sequence control, permissives, alarms, interlocks, or documented valve-state verification. A simple local application may only require a visual indicator, while a critical automated sequence may require independent open and closed feedback.
What is the difference between a position indicator and a limit switch?
A position indicator normally provides local visual information. A limit switch provides an electrical state when a defined position is reached. Some integrated devices combine both functions, so the actual datasheet and required outputs must be checked.
Can one switchbox provide both open and closed feedback?
Many switchbox or valve-monitor configurations can contain separate open and closed sensing elements, but this is not automatic for every product. Confirm the switch quantity, output arrangement, actuator stroke, and adjustment range.
Should feedback contacts be normally open or normally closed?
There is no universal choice. Base NO/NC selection on the defined control philosophy, de-energized state, fault-detection method, cause-and-effect, and PLC/DCS input design, then document the convention clearly.
Can a rotary actuator switchbox be used on a linear diaphragm actuator?
Not by assumption. A rotary switchbox needs a suitable mechanism or adapter to follow linear travel, and the stroke, mounting, target movement, enclosure clearance, and switching points must be confirmed. A linear device designed for the actuator is generally easier to verify.
Does a closed feedback signal prove the diaphragm valve is leak-tight?
No. A closed switch confirms only that its preset trip point was reached; it does not measure seat leakage, diaphragm integrity, or process isolation. Check full stroke first, then perform the applicable leakage or isolation verification.
What is the difference between discrete position feedback and a valve positioner?
Discrete feedback reports defined states such as open or closed; a positioner regulates continuous travel for modulating control. Define whether the application needs on/off confirmation or continuous positioning first, then select the device and signal interface.
How many position feedback signals should be specified?
Specify the number needed by the control philosophy. Common on/off applications use independent open and closed signals. Additional intermediate, redundant, or diagnostic outputs should only be included when the project has a defined use for them.
Conclusion
Diaphragm valve position feedback should be designed as a complete verification loop, not selected as an isolated accessory. The correct configuration links the actuator’s linear travel to a suitable indicator, switch, or sensor, carries the output through a compatible electrical interface, and verifies the status in the PLC or DCS.
The most reliable specification begins by defining what must be confirmed: open, closed, an intermediate point, local visibility, or a control-system response. It then checks actuator stroke, mounting, sensing method, enclosure, hazardous-area requirements, signal type, and commissioning responsibility.
A feedback contact is useful evidence, but it must be interpreted correctly. It confirms a configured sensing point; it does not replace full-stroke verification, valve testing, or the project’s process-isolation procedure.
Application / Specification Support
When the required open/closed states, linear-stroke compatibility, electrical interface, or environmental conditions are not yet fixed, organize the preliminary valve, actuator, feedback, and site-condition data before issuing the specification. NTGD Diaphragm Valve can review the critical mechanical and electrical interfaces and identify missing RFQ inputs before the configuration is finalized. Product options, certifications, and accessory compatibility remain subject to the specific project and actual valve assembly.
