Quick Answer: What Is a Diaphragm Valve Symbol?
A diaphragm valve symbol is the simplified drawing symbol used in a P&ID, process piping drawing, or engineering schematic to identify a diaphragm valve in a process line. It does not show the full internal construction of the valve. Instead, it tells the drawing reader that the line includes a diaphragm-type valve and that the valve must be checked against the project legend, valve tag, valve list, and datasheet before any specification or purchasing decision is made.
A typical diaphragm valve symbol is usually read as a base valve symbol with an additional diaphragm-related marker, modified internal line, special symbol shape, or project-specific drawing convention. The exact shape must always be checked against the project legend.
In most engineering drawings, the diaphragm valve symbol appears as a valve symbol with a diaphragm-related marking or project-specific shape. The exact appearance can vary between project standards, software libraries, company drawing conventions, and industry practices. For that reason, the correct interpretation starts with the drawing legend or symbol list used for that project.
A diaphragm valve P&ID symbol can help a piping engineer, process engineer, maintenance team, or technical buyer recognize where the valve is located in the process line. However, the symbol alone does not confirm valve size, body material, diaphragm material, lining, pressure rating, end connection, actuator type, fail position, or service suitability.
Common P&ID Representation
A diaphragm valve symbol normally appears on a process line together with nearby information such as:
- a valve tag;
- a line number;
- a process flow line;
- an actuator or control marker, if the valve is automated;
- drawing notes or a project legend reference;
- a valve list or datasheet reference.
The symbol is a drawing shortcut. It helps the reader identify the valve type quickly, but it is not a physical drawing of the valve body, bonnet, diaphragm, compressor, stem, or actuator.
What the Symbol Does and Does Not Confirm
| What the diaphragm valve symbol can indicate | What it does not fully confirm |
|---|---|
| A diaphragm valve is intended at that point in the line | Exact valve construction |
| The valve is part of a process or utility line | Body material, lining, and diaphragm material |
| The valve may have a manual, pneumatic, or electric operation marker | Final actuator model or control accessories |
| The valve tag may connect to a valve list or datasheet | Pressure class, end connection, and test requirement |
| The symbol may support drawing review and maintenance identification | Whether the valve is suitable for the actual service condition |
Treat the diaphragm valve symbol as an identification cue, not as a purchasing specification. In an actual project, skipping the legend and moving from symbol shape directly to purchasing can create specification mismatch risk. A wrong assumption may carry incorrect material, diaphragm, lining, connection, actuator, or installation requirements into the RFQ.
Diaphragm Valve Symbol in P&ID and Engineering Drawings

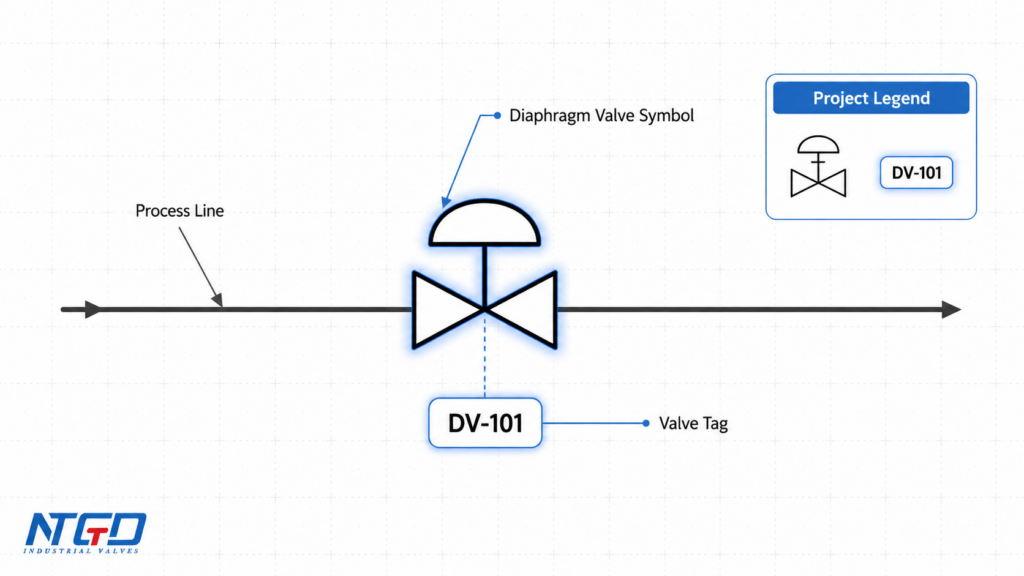

A diaphragm valve symbol in P&ID drawings is used to show where a diaphragm valve is installed or required in a process system. The drawing may be used during process design, piping design, procurement review, maintenance planning, or site verification. In each case, the symbol must be read together with the project legend and the valve tag system.
A P&ID is not the same as a product drawing. It usually shows process relationships, line connections, equipment, instruments, and valve positions in a simplified format. A diaphragm valve drawing symbol is therefore intended for identification and system understanding, not for detailed mechanical design.
For general P&ID context, a P&ID is commonly treated as a schematic, unscaled drawing that uses symbols to show the functional relationship between piping, instrumentation, equipment, and controllers; see this P&ID engineering overview.
Where the Symbol Appears in a P&ID
A diaphragm valve P&ID symbol may appear in different places depending on the system design. Common positions include:
- process feed or discharge lines;
- chemical dosing or treatment lines;
- utility lines;
- isolation points around equipment;
- control points where an automated diaphragm valve is used;
- sampling, drain, or service connections where the project uses diaphragm valves.
The symbol should be read in the context of the whole line. Check what the line carries, whether the valve is normally open or closed if that is shown, whether the valve is actuated, and whether the tag points to a separate valve schedule.
P&ID Symbol, Drawing Symbol and Schematic Symbol
The terms P&ID symbol, drawing symbol, and schematic symbol are often used in similar situations, but they are not always identical.
| Term | Typical meaning in this article | Practical reading note |
|---|---|---|
| Diaphragm valve P&ID symbol | The symbol used in a piping and instrumentation drawing | Read it with the project legend, tag, and valve list |
| Diaphragm valve drawing symbol | A broader drawing term that may include engineering drawings, process drawings, or symbol references | Confirm whether it belongs to a P&ID, layout, schematic, or symbol library |
| Diaphragm valve schematic symbol | A simplified representation used in a schematic context | Avoid confusing it with pneumatic circuit symbols or product cutaway drawings |
| Valve drawing symbols | A broader group that may include many valve types | Use only as context; this article focuses on diaphragm valves |
A schematic symbol may appear in simplified engineering explanations or control sketches, while a P&ID symbol is normally tied more closely to a project legend, valve tag, and line information. In both cases, the applicable drawing legend remains the final reference.
For practical work, the question is not only “what does the symbol look like?” but also “which drawing convention is this project using?”
After reviewing the general valve symbol context, return to the project-specific diaphragm valve symbol, valve tag, drawing legend, and datasheet before using the drawing for specification or RFQ review.
What the Diaphragm Valve Symbol Elements Mean
A diaphragm valve symbol is usually read by breaking it into smaller drawing elements. These elements may include the base valve shape, a diaphragm-related mark, an actuator or control marker, and nearby tag information. The exact drawing style may vary, so the following table should be used as a reading method rather than a universal standard.
| Symbol element | What it usually means | What to verify |
|---|---|---|
| Base valve symbol | Indicates that a valve is installed in the line | Confirm the valve type from the legend or tag |
| Diaphragm marker or special valve shape | Suggests the valve is a diaphragm valve rather than a generic valve symbol | Confirm the project-specific symbol definition |
| Process line through the symbol | Shows the valve is located on that process line | Check line number, media, flow direction notes, and service |
| Valve tag | Connects the symbol to a valve list, datasheet, or specification | Verify size, material, connection, actuator, and service duty |
| Actuator marker | May show manual, pneumatic, electric, or control operation | Confirm actuator type and control details in the datasheet |
| Drawing notes or legend reference | Explains project-specific symbol convention | Use the project legend before assuming the symbol meaning |
Base Valve Symbol
The base valve symbol shows that a valve exists at a specific point in the line. In a diaphragm valve P&ID symbol, this base element is only the starting point. It tells the reader that the item is a valve, but it may not be enough to confirm the valve type unless the diaphragm-specific mark or the drawing legend is clear.
This matters when a drawing uses simplified valve symbols. Some projects use detailed symbol libraries, while others use compact or company-specific symbols. If the base shape looks generic, the valve tag and legend become more important.
Diaphragm Marker
The diaphragm marker is the element that helps distinguish the diaphragm valve symbol from a generic valve symbol. Depending on the drawing convention, the diaphragm marker may appear as a distinctive internal line, membrane-like indication, special fill pattern, modified symbol shape, or symbol-library variation added to the base valve symbol. The exact mark should not be treated as universal.
A common mistake is to treat the marker as a physical representation of the real diaphragm. In most P&ID drawings, the marker is not a scaled mechanical drawing. It is a symbolic indicator. The physical diaphragm shape, compressor arrangement, weir geometry, and body lining should be checked in the valve drawing, datasheet, or product documentation.
For specification review, the diaphragm marker should trigger a check of diaphragm material and media compatibility. Sealing life and leakage risk depend on the actual diaphragm and service condition, not on the drawing symbol.
Actuator or Control Marker
If the diaphragm valve is manually operated, the drawing may show a simple valve symbol without additional control detail, or it may include a hand-operated indication depending on the project convention. If the valve is automated, the symbol may be combined with an actuator or instrument signal indication.
An actuator marker can suggest that the valve is pneumatic, electric, or controlled by an instrument loop. It does not define the complete actuator package. This marker should trigger a cross-check between the actuator datasheet and the process control or safety requirement, especially when fail action, remote operation, or position feedback is required.
Details such as air supply, control signal, fail action, accessories, limit switches, positioners, and solenoid interfaces should be confirmed in the valve datasheet or instrument specification.
Tag, Line and Drawing Notes
The valve tag is often more important than the symbol shape itself. The tag connects the symbol to the valve list, datasheet, project specification, or procurement package. A diaphragm valve drawing symbol without a tag may be useful for general understanding, but it is usually not enough for purchasing or installation review.
When reading the symbol, check the nearby line number, service description, flow direction notes, instrument bubbles, control signals, and drawing notes. These items provide context that the symbol alone cannot provide.
How to Identify a Diaphragm Valve Symbol in a Drawing
To identify a diaphragm valve symbol in a drawing, do not rely only on the symbol shape. A safer method is to read the symbol, confirm the legend, check the tag, and compare the valve list or datasheet. This reduces the risk of confusing a schematic symbol with a physical valve design or with another valve type used in the same drawing package.
Step-by-Step Identification Checklist
| Step | What to check | What it confirms | Risk if missed |
|---|---|---|---|
| 1 | Locate the valve symbol on the process line | Where the valve sits in the system | The valve may be read outside its correct process context |
| 2 | Check whether the symbol has a diaphragm-specific mark or project-defined shape | Whether the symbol may represent a diaphragm valve | It may be confused with a generic valve symbol |
| 3 | Read the drawing legend or symbol list | The project’s actual symbol convention | A project-specific symbol may be misread |
| 4 | Check the valve tag | The connection to the valve list or datasheet | The symbol may lose its link to the official specification |
| 5 | Review the line number and service | Media and operating condition around the valve | Material, lining, or diaphragm requirements may be missed |
| 6 | Check actuator or control markers | Whether manual or automated operation may be required | Incorrect actuator assumption may enter review or RFQ |
| 7 | Compare the valve list or datasheet | Size, material, lining, diaphragm, connection, and actuator | Procurement may work from incomplete information |
| 8 | Resolve mismatch before RFQ or site work | Whether drawing, list, and datasheet agree | RFQ delay, wrong specification, or site confusion may occur |
The first checks may be enough for initial drawing recognition. Procurement, installation planning, and maintenance work require the tag, valve list, datasheet, and project notes to be confirmed before the valve type or specification is treated as final.
If the legend or tag is skipped, the drawing reader may identify the valve family correctly but still carry the wrong specification into procurement, installation planning, or maintenance work.
What to Check Before Assuming the Valve Type
Before assuming that a symbol definitely represents a diaphragm valve, check the following:
- Does the drawing legend define this exact symbol as a diaphragm valve?
- Does the valve tag match a diaphragm valve entry in the valve list?
- Is the line service suitable for diaphragm valve use, such as corrosive, slurry, clean, or isolation service where the project selected diaphragm valves?
- Is there an actuator marker that changes how the valve should be specified?
- Is the symbol part of a P&ID, a schematic, a symbol library, or a product drawing?
- Does the drawing package include a separate valve schedule or datasheet?
If the answer is unclear, treat the symbol as a drawing clue, not as a final specification.
Drawing Legend, Standards and Symbol Variation
Diaphragm valve symbols are not always identical. Different companies, engineering contractors, drawing software libraries, and project standards may use different symbol styles. Some drawings use a clear diaphragm-specific mark. Others use a simplified valve symbol and rely more heavily on the tag and legend.
This is why a diaphragm valve symbol should be read within the project drawing system. The symbol on one project may not be exactly the same as the symbol used on another project.
Why Diaphragm Valve Symbols May Vary
Symbols may vary because of:
- project-specific drafting standards;
- company symbol libraries;
- engineering contractor templates;
- software symbol sets;
- local or industry drawing practices;
- simplified drawings for early-stage design;
- detailed drawings for procurement or construction review.
Variation does not mean the drawing is wrong. It means the reader must confirm the meaning from the legend and related documents.
If the symbol in your drawing looks different from the example, do not assume the article or the drawing is wrong. First check the project legend and drawing notes, then the referenced client or company standard, and only then compare the symbol with general symbol libraries or previous project drawings.
Project Legend, Software Library and Company Standard
The project legend is the first place to confirm symbol meaning. A software library may provide a default diaphragm valve symbol, but a company may modify it for internal drawing practice. Similarly, an engineering contractor may use a standard project template that differs from another contractor’s drawing style.
For project review, the drawing legend should be treated as the working reference for that drawing set.
A safe reading sequence is:
- Read the symbol shape.
- Check the project legend and drawing notes.
- Check the valve tag.
- Confirm the valve list or datasheet.
- Resolve inconsistencies before RFQ, procurement, installation, or maintenance work.
For drawing-control discipline, the same logic is reflected in this P&ID legends and symbols practice reference, which emphasizes finalizing legends and symbols early and keeping project symbology consistent.
Why the Symbol Should Not Be Treated as a Physical Drawing
A diaphragm valve symbol does not show the real body shape, internal diaphragm arrangement, compressor design, liner coverage, end connection, or actuator mounting detail. It is a schematic representation.
The physical valve may be a weir-type design, straight-through design, lined design, manual valve, or actuated valve, depending on the project specification. Those details should not be guessed from the symbol alone.
Diaphragm Valve Symbol vs Diagram and Parts

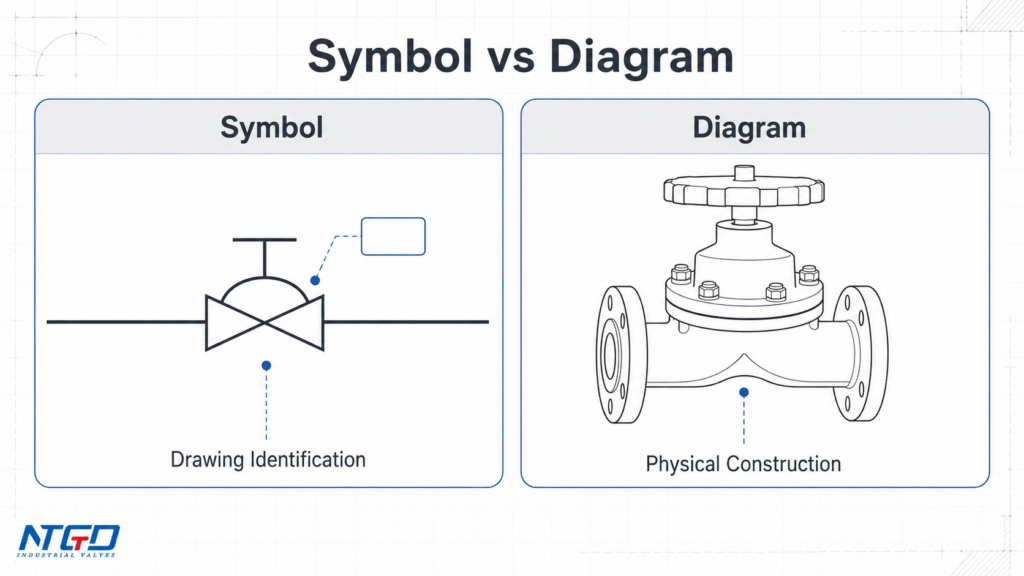

A diaphragm valve symbol is not the same as a diaphragm valve diagram. The symbol is used for drawing identification. A diagram is used to explain the physical construction or working structure of the valve. A parts or components drawing explains the valve body, diaphragm, compressor, bonnet, stem, actuator, and other mechanical elements.
This distinction protects the reading task. Use the symbol when the task is drawing identification; use the diagram or parts reference when the task is construction understanding, maintenance planning, spare parts review, or design verification.
Symbol vs Physical Valve Diagram
| Item | Diaphragm valve symbol | Diaphragm valve diagram |
|---|---|---|
| Main purpose | Identify the valve in a P&ID or drawing | Explain physical construction or internal arrangement |
| Typical location | Process drawing, P&ID, schematic drawing | Technical article, datasheet, product drawing, training material |
| Level of detail | Simplified | More detailed |
| Shows real body shape? | Usually no | Often yes |
| Shows diaphragm, body, compressor, or bonnet detail? | Usually no | Often yes |
| Used for specification alone? | No | Still needs datasheet and project requirements |
Symbol vs Parts or Component Drawing
A parts or component drawing is more detailed than a P&ID symbol. It may show the diaphragm, compressor, body, lining, bonnet, stem, handwheel, actuator, and sealing area. The P&ID symbol normally does not show these details.
If the task is to recognize the valve on a process drawing, use the symbol and legend. If the task is to understand how the valve is built, inspect the valve diagram or parts reference. If the task is to order the valve, use the valve list, datasheet, project specification, and supplier documentation.
When to Use a Diagram or Parts Reference Instead
Use a diagram or parts reference when you need to confirm:
- diaphragm location;
- body and bonnet arrangement;
- weir or straight-through construction;
- compressor and stem arrangement;
- lining coverage;
- actuator mounting;
- maintenance access;
- replacement diaphragm or spare parts scope.
For physical construction, internal components, and part names, use a dedicated diaphragm valve diagram and parts reference instead of relying on the P&ID symbol.
Use the P&ID symbol when you need to identify the valve location and drawing function.
Common Mistakes When Reading Diaphragm Valve Symbols
Most diaphragm valve symbol errors come from over-reading the symbol. A symbol is helpful, but it is not a complete engineering package. The correct interpretation depends on the legend, tag, line service, valve list, and datasheet.
For example, a reviewer may see an actuator mark beside the valve symbol and assume a complete fail-safe package, while the project legend may only indicate remote operation. This is why the symbol must be read together with the tag, valve list, and notes.
| Common mistake | Risk | Correct check |
|---|---|---|
| Treating one symbol shape as universal | Wrong valve type or wrong tag may be carried into drawing review | Check the drawing legend |
| Assuming the symbol shows the real diaphragm shape | Schematic representation may be confused with mechanical design | Check the valve diagram or datasheet |
| Ignoring the valve tag | Procurement or maintenance may work from incomplete information | Match the tag to the schedule |
| Ignoring line service | Material, lining, or diaphragm requirements may be missed | Review line number and service data |
| Over-reading actuator marks | Final actuator details may be assumed from a simple marker | Confirm actuator datasheet |
| Treating the symbol as enough for RFQ | RFQ delay or specification mismatch may occur before ordering | Prepare valve list, datasheet, and service conditions |
| Confusing schematic context | A P&ID symbol may be mixed with unrelated schematic symbol systems | Confirm drawing type and legend |
Confusing Symbol Shape with Real Valve Design
A diaphragm valve symbol may contain a simplified marking, but that marking should not be read as the real internal shape of the valve. It does not confirm whether the valve has a weir body, a straight-through body, a lined body, a specific diaphragm material, or a specific actuator arrangement.
The symbol identifies the item. The datasheet defines the item.
Ignoring the Valve Tag or Valve List
The valve tag is often the bridge between the P&ID symbol and the project specification. If the tag is ignored, the reader may recognize the symbol but still miss the exact valve requirements.
A sound drawing review checks the tag against the valve list. The valve list should then be compared with the datasheet, line service, and procurement requirement.
Over-reading Actuator or Fail-Safe Marks
Some drawings include actuator or control information near the valve symbol. This can be useful, but it should not be treated as the complete actuator specification. A simple pneumatic or electric marker does not automatically confirm accessories, control signal, limit switch requirements, position feedback, fail action, or mounting details.
Those details belong in the instrument datasheet, valve datasheet, or project control philosophy.
Actuator and Pneumatic Symbol Notes
Some diaphragm valves are manual. Others are pneumatic or electrically actuated. In P&ID drawings, actuator information may be shown as a marker connected to the valve symbol or as part of an instrument loop. This actuator indication is useful, but it remains a supporting detail in a diaphragm valve symbol guide.
A pneumatic diaphragm valve symbol in a P&ID context should not be confused with a pneumatic circuit symbol. A P&ID normally shows the valve in the process line and may show the actuator or control signal. A pneumatic circuit drawing belongs to a different drawing system. The two should not be mixed unless the project package clearly connects them.
Manual, Pneumatic and Electric Actuator Indications
| Actuator indication | What it may suggest | What still needs confirmation |
|---|---|---|
| Manual indication | The valve may be operated by handwheel, handle, or manual mechanism | Actual operator type, accessibility, and installation space |
| Pneumatic indication | The valve may use a pneumatic actuator or air-operated control | Air supply, fail action, accessories, control signal, solenoid interface |
| Electric indication | The valve may use an electric actuator | Voltage, control mode, torque requirement, feedback, enclosure requirement |
| Instrument signal near the valve | The valve may be part of a control loop | Instrument tag, control function, positioner or feedback requirement |
| No actuator marker | The valve may be manual, or actuator detail may be specified elsewhere | Confirm in valve list or datasheet |
P&ID Symbol vs Pneumatic Circuit Symbol
A P&ID symbol shows the diaphragm valve as part of the process system. It is focused on process lines, equipment, instruments, and valve tags. A pneumatic circuit symbol belongs to a different drawing context and is used for pneumatic logic or air control arrangements.
Do not use a pneumatic circuit symbol guide to interpret a diaphragm valve P&ID symbol unless the project drawing package clearly connects the process valve to a pneumatic control schematic.
When actuator or fail-position markings appear near the valve symbol, use them as a review trigger; this P&ID valve fail-position symbol reference shows examples such as FO, FC, and FL that still require project-specific confirmation.
When a Pneumatic Diaphragm Valve Symbol Needs Extra Confirmation
Extra confirmation is needed when:
- the drawing shows an actuator but does not define the actuator type clearly;
- the valve is part of an automatic control loop;
- the fail position affects process safety or operation;
- the valve list and P&ID do not match;
- air supply, solenoid interface, position feedback, or control signal details are missing;
- the RFQ requires actuator and accessory confirmation.
When a pneumatic actuator marker appears beside the diaphragm valve symbol, it should trigger a datasheet check for air supply, fail action, control signal, solenoid interface, and position feedback. The P&ID marker identifies the control requirement; it does not define the complete pneumatic package.
For actuator-specific construction and operation context, review the pneumatic diaphragm valve page after confirming the P&ID marker, air supply, fail action, control signal, and datasheet requirements.
From P&ID Symbol to Specification Review
A diaphragm valve symbol is useful during drawing review, but it must be connected to the full specification before procurement, manufacturing, or installation. The symbol is the starting point. The valve tag, valve list, datasheet, service condition, and project specification complete the technical picture.
What the Symbol Can Support
The symbol can support:
- valve location identification;
- drawing review;
- process line understanding;
- maintenance planning;
- tag verification;
- actuator presence check;
- preliminary valve type confirmation;
- RFQ preparation when combined with the valve list and datasheet.
It cannot, by itself, confirm whether the valve is suitable for corrosive, abrasive, sanitary, slurry, chemical, or utility service. Suitability depends on material, lining, diaphragm, pressure, temperature, operation mode, and project requirements.
What Must Be Confirmed in the Valve List or Datasheet
| Review item | Why it must be confirmed outside the symbol |
|---|---|
| Valve tag | Connects drawing item to project records |
| Size | Required for line compatibility and procurement |
| Pressure rating or design pressure | Must match project and service requirements |
| Body material | Depends on media and external conditions |
| Lining material | Important for corrosion or abrasion resistance |
| Diaphragm material | Critical for chemical compatibility and sealing |
| End connection | Must match piping design |
| Operation type | Manual, pneumatic, electric, or control service |
| Actuator accessories | Needed for automation and control integration |
| Service condition | Determines suitability and risk |
| Test and documentation requirements | Must follow project specification and purchase requirements |
RFQ Information to Prepare for NTGD Diaphragm Valve Review
Before asking for diaphragm valve specification support, prepare the information that connects the symbol to the actual service. Useful RFQ review information includes:
- P&ID or drawing snapshot showing the valve tag;
- valve list or datasheet;
- line number and service media;
- size and end connection;
- design pressure and temperature;
- body material requirement;
- lining requirement, if any;
- diaphragm material requirement, if known;
- manual, pneumatic, or electric operation requirement;
- control signal, fail position, and accessories if the valve is actuated;
- applicable project specification or documentation requirement.
For product-level specification context, use the diaphragm valve page as the product bridge, while keeping the P&ID symbol as the drawing identification starting point.
A P&ID symbol without the valve list and datasheet is an incomplete RFQ signal. It can show where a diaphragm valve is intended, but it cannot confirm whether the proposed valve matches the service condition, project specification, actuator requirement, or connection standard.
When the P&ID snapshot and valve list are available, NTGD Diaphragm Valve can help review whether the valve tag, service condition, material, lining, diaphragm, actuator, and connection requirements are aligned before RFQ confirmation.
If you need to confirm what a diaphragm valve symbol in your project drawing represents, provide the P&ID snapshot, valve tag, valve list, datasheet if available, and basic service conditions for engineering review.
FAQ
What is a diaphragm valve symbol?
A diaphragm valve symbol is a simplified drawing mark used to identify a diaphragm valve in a P&ID, process drawing, or engineering schematic. It helps locate the valve in the drawing, but the project legend, tag, valve list, and datasheet define how that symbol should be used.
What does a diaphragm valve P&ID symbol mean?
A diaphragm valve P&ID symbol means that the drawing includes a diaphragm valve at that point in the process line. The exact meaning should be checked against the project legend, valve tag, valve list, and datasheet because symbol styles can vary between projects.
How do I quickly confirm a diaphragm valve symbol in a project P&ID?
Start with the project legend first. Then check the valve tag, line number, actuator marker, and valve list. The symbol shape may give the first clue, but the legend and tag confirm whether the drawing item is really a diaphragm valve in that project.
Is the diaphragm valve symbol always the same?
No. The diaphragm valve symbol can vary by project standard, engineering company, drawing software library, company drafting practice, and drawing type. To confirm the symbol in your project, use the project legend and drawing notes as the working reference.
What is the difference between a diaphragm valve symbol and a diaphragm valve diagram?
A diaphragm valve symbol is a simplified drawing mark used for identification in a P&ID or schematic. A diaphragm valve diagram shows more physical detail, such as body arrangement, diaphragm position, compressor, bonnet, stem, or actuator. A symbol is for drawing recognition; a diagram is for construction understanding.
Is a pneumatic diaphragm valve symbol different?
It may be different if the P&ID includes an actuator or control marker. However, a pneumatic indication on a P&ID should not be confused with a pneumatic circuit symbol. The actuator type, air supply, fail action, control signal, and accessories should be confirmed in the datasheet or instrument documents.
Can I order or specify a diaphragm valve from the P&ID symbol alone?
Usually, no. The symbol can identify the valve location and basic valve type, but it cannot replace the valve list, datasheet, service condition, and actuator specification. The correct approach is to use the symbol as the identification starting point, then complete the technical confirmation through the valve list, datasheet, project specification, and service conditions.
Do I need a CAD or DWG diaphragm valve symbol file?
A CAD or DWG symbol file may be useful for drafting work, but it is not required for understanding the engineering meaning of a diaphragm valve symbol in an existing P&ID. For drawing interpretation, the project legend, tag, and valve list are more important than downloading a generic symbol file.
Conclusion
A diaphragm valve symbol in P&ID drawings is a compact engineering mark used to identify a diaphragm valve in a process line. It helps engineers, maintenance teams, and technical buyers understand where the valve is located and how it relates to the surrounding system.
The symbol should not be treated as a universal shape, a physical valve diagram, or a complete specification. Drawing conventions can vary, and the correct interpretation depends on the project legend, valve tag, valve list, datasheet, and service conditions.
For reliable drawing review, use the symbol as the starting point, confirm the legend and tag, connect the item to the valve list and datasheet, and then complete the specification review before RFQ, procurement, or site work.
