Diaphragm Valve Types Explained: Weir, Straight-Through, 3-Way, and Block Designs

INTRODUCTION

A diaphragm valve isolates the process media with a flexible diaphragm that forms the shut-off seal and separates the wetted zone from the stem/actuator area. Engineers select diaphragm valves for leak containment, corrosion resistance, cleanability, and solids tolerance—but only when the valve type matches the duty and the shut-off geometry matches the failure risks.

This guide explains four diaphragm valve types—weir, straight-through, 3-way, and block—using the design differences that actually drive performance: shut-off geometry (sealing line), flow path (retention pockets), and diaphragm stress mode (bend vs stretch). You will get selection boundaries, trade-offs, and common misapplications that cause leakage, plugging, or shortened diaphragm life.

Most diaphragm valve failures are not “valve defects.” They are predictable outcomes of misapplication: solids retention at ledges/junctions, excessive diaphragm flexing under cycling or throttling, and dead-leg/drainability issues in high-purity systems.

Engineering warning (read before you pick a type): If you do not know solids % / particle size / cycle frequency, treat the duty as unknown risk and design selection around flushability + inspection + conservative life planning.

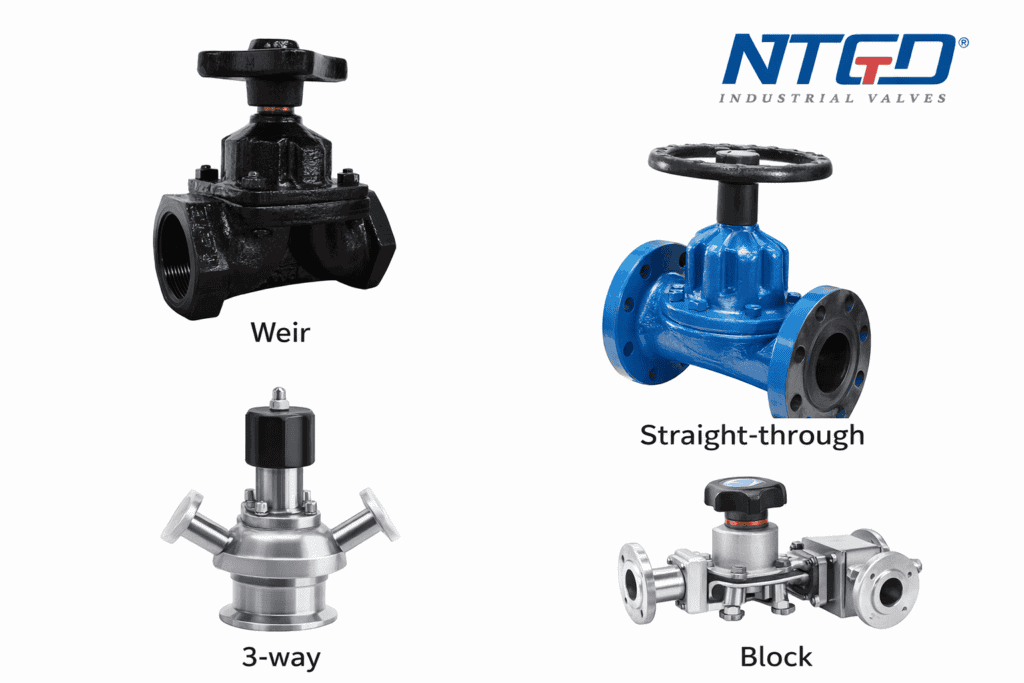

(Optional visual placeholder: Fig 0 — four types thumbnail comparison for above-the-fold scan value.)

---

Diaphragm Valve Types at a Glance (Key Engineering Differences)

4 Main Categories and Their Core Mission

• Weir type: tight shut-off and isolation where leakage control and corrosion resistance matter; commonly chosen for clean/corrosive duty.

• Straight-through type: unobstructed passage where solids handling and flushing dominate the decision.

• 3-way type: diversion or mixing to reduce valve count and simplify piping logic.

• Block type: compact multi-port body for high-purity / low dead-leg layouts where cleanability and contamination control are primary.

Comparison Table (Shut-Off Geometry, Flow Path, Stress, Solids, Purity)

Insert visual here (recommended):

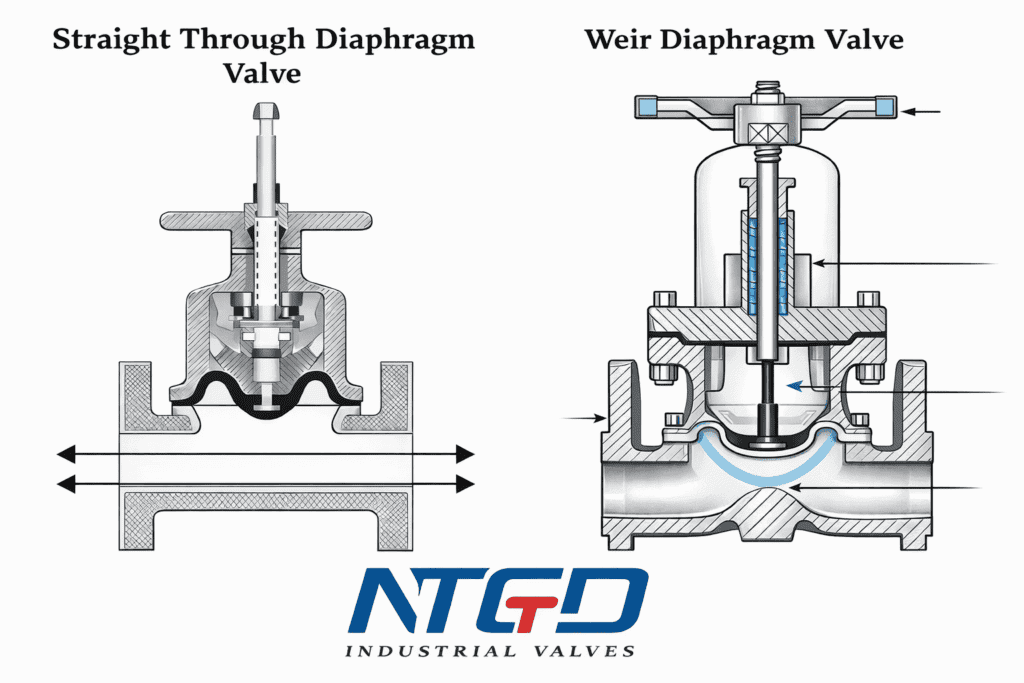

• Fig 1 (primary): Weir vs straight-through cross-section comparison highlighting sealing line and flow path.

• Fig 2 (optional): Open/closed schematic for each type.

---

Why Shut-Off Geometry Defines Performance (Leakage, Solids, and Diaphragm Life)

Sealing Line vs Flow Channel (What the Diagram Predicts)

A diaphragm valve diagram can tell you, in seconds, what a datasheet often cannot—especially when comparing weir vs straight-through diaphragm valve designs under solids and corrosion duty:

• Where sealing actually occurs (the true shut-off line).

• Where solids can accumulate (pockets, ledges, junctions).

• Where trade-offs are built in: a geometry optimized for tight shut-off can conflict with an unobstructed passage needed for slurry.

In practical terms:

• Tight shut-off usually requires controlled contact geometry at the sealing line.

• Solids handling usually requires a clean channel with minimal ledges and reliable flushing.

Engineering boundary: If your process requires both “bubble-tight isolation” and “high-solids passage,” you must explicitly choose which risk you are managing—or specify design measures (screening, flushing, orientation) that prevent the conflict from becoming a failure.

Diaphragm Stress Concentration (What Shortens Cycle Life)

Diaphragm service life is governed by stress amplitude and stress concentration in the diaphragm’s flex region, as documented in diaphragm valve fatigue and cycle life behavior under repeated flexing duty.:

• Weir type: bending occurs over a shorter stroke; stress concentrates around the highest curvature zone.

• Straight-through type: the diaphragm typically flexes more to reach the seat line; cycle-frequency planning becomes more critical.

Two field variables cause early failures across all types:

• Extended throttling at partial stroke (most diaphragm valves are not optimized for long-duration throttling duty).

• Over-travel / incorrect stroke setting that over-compresses or over-stretches the diaphragm.

Engineering warning (common field pattern): “It seals today” is not evidence it will seal after months of cyclic bending. If cycle rate is high, require the supplier to state assumptions for expected diaphragm replacement interval under your duty.

Practical Boundary Statements (Non-Negotiables)

Use these as engineering “stop signs” during selection:

• Not recommended for long-term throttling unless the supplier confirms duty limits and expected diaphragm life.

• Vacuum service risk unless the design is specified and validated for vacuum conditions.

• Steam / high-temperature service requires explicit confirmation of diaphragm material limits and assembly design.

• Solids duty: if solids % and size are unknown, treat as risk—specify inspection, upstream screening, or select a geometry that flushes reliably.

Suggested visual placement:

• Fig 3: label “highest curvature zone” and “contact line” on a diagram.

• Fig 4 (optional): concept trend chart (cycle frequency vs replacement interval) without hard numbers.

---

Weir Type Diaphragm Valve (Tight Shut-Off and Corrosive/Clean Duty)

Structural Anatomy and Weir Geometry

A raised weir crest shortens diaphragm travel and defines the shut-off line at the crest. This geometry supports:

• predictable shut-off contact,

• lower stroke requirement,

• strong isolation in many clean/corrosive services.

Engineering note (selection intent): Weir geometry is chosen to control the sealing line and reduce stroke—not to maximize passage. If your decision driver is “avoid retention,” you are already leaning toward straight-through.

Shut-Off Behavior and Diaphragm Movement Mechanics

In the closed position, the diaphragm contacts the weir crest along a defined sealing line. Internal leakage commonly traces to debris imprint at the contact line, evaluated under leakage acceptance criteria such as API 598 valve inspection and testing standard:

• debris imprint at the contact line,

• uneven load distribution (alignment / compressor plate issues),

• incorrect travel setting (under-travel or over-travel).

Quick diagnostic:

• Leakage appears after maintenance → suspect debris on sealing line or mis-set travel.

• Leakage increases with cycling → suspect fatigue at curvature zone or over-travel.

Typical Applications (Where Weir Type Wins)

• corrosive chemical service where media isolation is primary,

• clean systems where leakage control matters,

• processes where predictable isolation is more important than maximum passage.

Mini case (engineering pattern, anonymized): A corrosive transfer line prioritized containment over passage; moving from a general-purpose valve to a properly specified diaphragm valve configuration reduced leak events because the sealing line was controlled and the stem/actuator area remained isolated from the media.

Limitations and Common Misapplications (High-Value)

Not recommended when solids retention dominates:
Some media/orientations allow solids to settle at the weir crest.

Symptom → cause → consequence → correction

• Symptom: valve does not fully close / intermittent leakage

• Cause: solids trapped on the weir crest prevent full diaphragm contact

• Consequence: leakage and accelerated diaphragm damage at the contact line

• Correction: switch to straight-through design and/or add upstream screening and flushing provisions

Not recommended for extended throttling:
Partial stroke concentrates flexing and accelerates fatigue. If throttling is unavoidable, duty must be validated and life planned.

Engineering warning box (high ROI): If you are seeing “mysterious” leakage in weir valves on dirty service, treat it as a geometry-driven retention issue first, not a manufacturing defect. Verify orientation, sediment behavior, and whether the weir crest is acting as a settling ledge.

What to Ask the Supplier (RFQ Data for Weir Type)

• diaphragm material and compatibility (chemical + temperature)

• confirmed temperature/pressure envelope for the exact diaphragm construction

• expected cycle frequency and life-planning assumptions

• cleanability requirements (drainability, lining, surface finish where relevant)

• travel/stop setting guidance (how over-travel is prevented in your actuator/handwheel setup)

Insert visual here (best location):

• Fig 5: Weir diaphragm valve labeled diagram (your labeled weir diagram fits here).

---

Straight-Through Diaphragm Valve (Slurry, Solids, and Flushing Priority)

Open-Channel Flow Path Design (Why It Handles Solids Better)

Straight-through geometry prioritizes a continuous channel so solids are less likely to be trapped by a raised internal obstruction. In slurry duty, the advantage is not “marketing flow”—it is reduced retention and improved flushing behavior.

Long-tail intent you should naturally satisfy here: straight-through diaphragm valve for slurry, diaphragm valve solids handling, slurry diaphragm valve flushing behavior.

Sealing Location and Diaphragm Stress Behavior

The sealing line sits at the seat line in the channel bottom. To achieve shut-off, the diaphragm typically flexes farther than in a weir design. This affects:

• cycle-life planning,

• diaphragm material selection,

• maintenance interval expectations.

Engineering warning: Straight-through selection reduces plugging risk, but it can increase stress amplitude. If cycle rate is high, require explicit replacement interval assumptions from the supplier.

Dominant Use Cases (Slurry and Solids Handling)

• slurry/solids where passage and flushing are primary,

• abrasive media where retention pockets drive plugging risk,

• wastewater with suspended solids where maintenance access matters.

Mini case (engineering pattern, anonymized): A solids-bearing line suffered recurrent restriction events. Switching to a geometry with fewer retention pockets plus a defined flushing practice reduced the frequency of unplanned cleaning and stabilized maintenance intervals.

Trade-Offs Compared to Weir Type (Be Explicit)

What you gain:

• clearer passage and better flushing behavior.

What you trade:

• typically higher diaphragm flex amplitude,

• greater sensitivity to cycling duty and stroke setting,

• shut-off expectations must be matched to service conditions.

Engineering boundary statement: If the duty requires “absolute isolation under all conditions,” validate leakage tolerance at your ΔP range instead of assuming straight-through will behave like a weir valve.

What to Ask the Supplier (Straight-Through)

• assumed solids % and particle size range (or confirm unknown-risk handling)

• flushing provisions or recommended installation practices

• diaphragm life planning under expected cycle frequency

• seat geometry details and leakage tolerance expectations

• abrasion assumptions (what is “abrasive” in their recommendation—solids hardness, particle size, velocity)

Insert visual here:

• Fig 6: Straight-through cross-section (your finished style version fits best here).

---

3-Way Diaphragm Valve (Flow Diversion and Mixing)

Multi-Port Structure and Function Modes

3-way valves add functionality (divert/mix/bypass) by introducing multiple ports and internal flow paths. The engineering question is not just “3 ports,” but how the internal paths drain and how sealing integrity is maintained across duty modes.

L-Port vs T-Port Logic (Selection by Flow Function)

• L-port: best for switching flow from one outlet to another (two ports connected at a time).

• T-port: supports mixing or splitting depending on internal design; requires closer attention to contamination and cleaning logic.

Avoidance note: in duties sensitive to cross-contamination, validate internal drain and cleaning pathways.

When to Replace Multiple Valves with One 3-Way

• fewer valves and fittings, fewer potential leak points, simplified automation logic

• more compact piping layouts where space and maintenance access matter

Design Limits and Critical Considerations

• added complexity can increase retention risk if media carries solids, a common issue discussed in 3-way diaphragm valve misapplication scenarios

• pressure drop and flow path complexity must be evaluated

• cycling duty and switching frequency should be specified up front

Engineering warning: A 3-way valve used for “simple isolation only” is usually an avoidable increase in leak interfaces and maintenance complexity.

RFQ Checklist for 3-Way

• port arrangement sketch (required)

• function statement: divert vs mix vs bypass

• cleaning/purity requirement and drain orientation

• cycle frequency and actuation type

• contamination risk statement (what cannot mix, even momentarily)

(Optional visual: Fig 7 — L vs T schematic, if you add later.)

---

Block Diaphragm Valve (Compact Multi-Port and High-Purity Systems)

Block Body Structure and Space Saving

Block designs integrate multiple ports into a compact body. The core benefit is not “compactness” alone—it is system simplification with fewer joints in high-purity layouts, as explained in block diaphragm valve dead-leg and cleanability design.

Sealing and Purity Features (Dead-Leg Minimization)

Low dead-leg design reduces stagnant zones where residue can remain, a key requirement defined in ASME BPE hygienic design guidelines. Engineering value:

• fewer crevices and joints,

• improved cleanability and validation potential,

• contamination risk control in sensitive processes.

Engineering note: In high-purity systems, “low dead-leg” must be validated in the installed orientation. A good block design can still become a poor drain design if orientation is wrong.

Maintenance Access and Service Considerations

• diaphragm replacement planning should consider cleaning cycles and cycling duty

• inspection should focus on seal integrity and drainability in the installed orientation

Where Block Designs Are Typically Specified

• high-purity and clean systems where footprint and contamination risk dominate selection

• applications where port integration reduces complexity and improves cleanability

RFQ Checklist for Block Valves

• port map + installation orientation

• dead-leg / cleanability requirement

• compliance expectations (if any)

• cleaning cycle conditions (chemistry, temperature, frequency)

---

Comparing Diaphragm Valve Types (Practical Selection Matrix)

Flow Path & Solids Retention Risk (Quick Verdicts)

• If solids passage and flushing dominate: start with straight-through.

• If tight isolation in clean/corrosive duty dominates: start with weir.

• If diversion/mixing is required: start with 3-way, validate cleaning and duty mode.

• If high-purity + compact manifold dominates: start with block, validate dead-leg and orientation.

Shut-Off Integrity vs Flow vs Maintenance (Trade-Off Rules)

• If shut-off integrity is absolute priority → weir (validate leakage expectations).

• If solids passage is priority → straight-through (plan diaphragm life under cycling).

• If purity/compactness is priority → block (validate dead-leg + cleaning).

• If diversion/mixing is required → 3-way (specify function mode + cleanliness constraints).

Common Misapplication Scenarios by Type (One-Pagers)

• Weir in high-solids slurry: plugging at crest → leakage → faster diaphragm wear → switch to straight-through / add screening + flushing.

• Straight-through for critical isolation: longer stroke + seat interface → leakage risk under low ΔP/critical containment → shift to weir or validate allowable leakage.

• 3-way used for isolation-only: unnecessary complexity and leak points → use 2-way unless diversion/mixing is required.

• Block in abrasive service: erosion + loss of integrity → reserve block for clean/high-purity duty.

(Optional visuals)

• Fig 8: final decision matrix table (simplified)

• Table 2: misapplication quick list

---

Selecting the Right Diaphragm Valve (A Practical Engineering Guide)

Step 1 — Assess Media Characteristics

• Corrosive chemistry?

• Solids present? (%, size, fibrous content)

• Viscosity and fouling tendency?

• Clean/high-purity requirement?

If solids % is unknown, treat it as a risk: inspect upstream, sample, or design for flushing and retention control.

3 fast screening questions (improves inquiry quality):

1. Solids condition: ≤5%, 5–30%, >30%, no solids, unknown

2. Extremes: high temp, vacuum, strong corrosive, none/unknown

3. Priority: seal integrity first, anti-plugging first, purity first, multi-function first

Step 2 — Define Process Needs

• isolation only, or diversion/mixing?

• compact manifold needed?

• cleanability/contamination control required?

• installation constraints and access?

Step 3 — Evaluate Trade-Off Priorities

Rank what matters most:

• shut-off integrity

• passage/flush behavior

• maintenance interval and diaphragm life planning

• contamination risk and cleanability

RFQ Checklist (Copy-Paste Ready)

Provide the following to get a correct selection and realistic life expectation:

• Size: DN / NPS

• Pressure class: rating basis and maximum operating pressure

• End connection standard: ASME/EN/JIS as applicable

• Media: name + concentration + solids % + particle size (if any)

• Temperature: normal and maximum

• Operating pressure and ΔP: if known

• Cycle frequency: cycles/hour or cycles/day

• Diaphragm material: preference (PTFE/EPDM/etc.) or “unknown—recommend”

• Actuation: manual / pneumatic / electric

• Installation orientation + space constraints

• Compliance requirements: if any (high-purity, cleanability, certification needs)

• Failure pain-point (one line): leakage? plugging? short diaphragm life? contamination?

Module (Engineering Review)

Submit the RFQ checklist for a diagram-based selection review (sealing line, flow path, and stress mode validation).

Need a quick recommendation? Send media + DN + pressure class + temperature + solids + function (isolation/divert/mix).

---

FAQ (Short, High-Intent Questions)

• Weir vs straight-through: which is better for slurry service?

• Can diaphragm valves be used for throttling?

• What causes internal leakage in weir-type diaphragm valves?

• How do I choose PTFE vs EPDM diaphragms?

• Are block diaphragm valves only for high-purity systems?

• What is “dead-leg” and why does it matter?

• Can diaphragm valves be used in vacuum service?

• How often should diaphragms be replaced?

• When does a 3-way diaphragm valve replace multiple valves?

• What RFQ data most improves selection accuracy?

---

CONCLUSION (engineering + selection checklist pointer)

Diaphragm valve type selection is determined primarily by shut-off geometry, flow path, and diaphragm stress mode—not by catalog labels. The right type prevents predictable failure modes: solids retention and plugging, leakage from wrong sealing geometry, and shortened diaphragm life from excessive flexing or misused throttling.

Use the RFQ checklist to validate boundaries and trade-offs before purchase. The fastest way to avoid repeat failures is to confirm the sealing line, flow channel, and diaphragm motion mode against your actual duty.
