Introduction
Engineers rarely struggle to select a valve for simple services. Problems appear when the fluid is corrosive, contains solids, or must remain clean and uncontaminated. In these conditions, the diaphragm valve vs gate valve decision is not driven by size or pressure rating alone, but by sealing behavior, media isolation, and long-term reliability in real operating environments.
This article compares diaphragm valves and gate valves based on how they perform in water treatment, chemical processing, slurry handling, and sanitary systems, where leakage, fouling, and maintenance cost have direct operational impact.
Diaphragm Valve vs Gate Valve: Basics
What is a diaphragm valve?
A diaphragm valve controls flow using a flexible diaphragm that presses against a weir or body contour to shut off the line. The diaphragm creates a physical barrier between the process fluid and the valve’s moving parts, isolating the media from the stem and actuator. This design reduces leakage paths and contamination risk, especially in corrosive and hygienic service.
Diaphragm valves are commonly supplied in weir type and straight-through body designs. Straight-through designs are preferred when the media contains dirt, powder, or sludge that could accumulate on a raised weir.
What is a gate valve?
A gate valve controls flow by lifting or lowering a metal gate inside the valve body, as defined in standard gate valve references.When fully open, the valve provides a straight-through flow path with low pressure drop. When fully closed, the gate blocks the flow.
Gate valves are intended primarily for on-off isolation. They are not recommended for throttling or partial-open operation, because turbulence and vibration at the gate edges accelerate seat and gate wear, a limitation clearly explained by Valve Magazine in its technical review of gate valve applications.

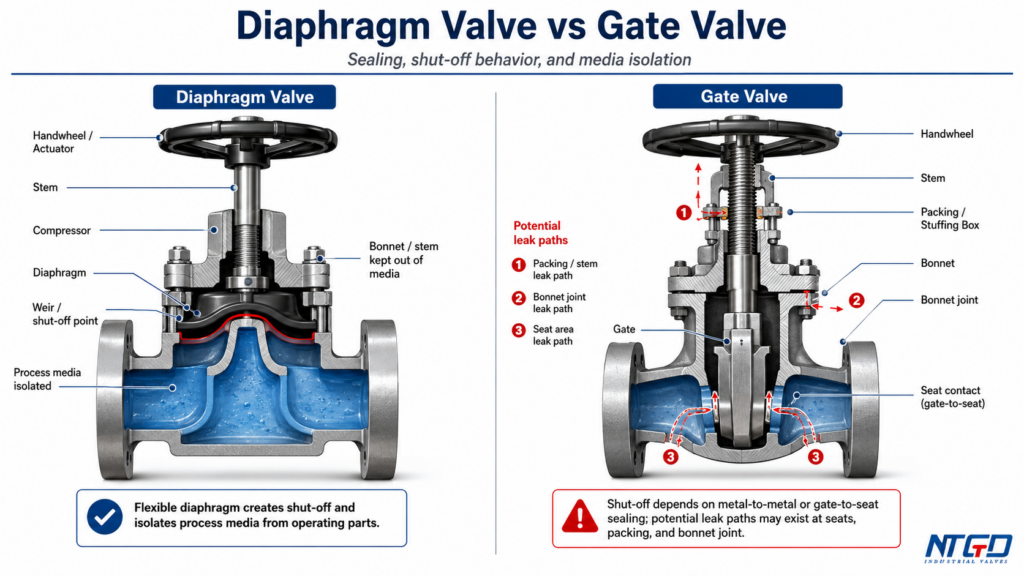

Core design differences
| Feature | Diaphragm Valve | Gate Valve |
|---|---|---|
| Sealing element | Flexible diaphragm | Metal gate and seats |
| Media isolation | Media isolated from stem and actuator | Media contacts internal moving parts |
| Best operating mode | On-off or modulating | On-off only |
| Throttling capability | Possible if properly sized | Not recommended |
| Cleanability | Smooth, enclosed flow path | Internal crevices and exposed seats |
Sealing and Flow Control Mechanisms

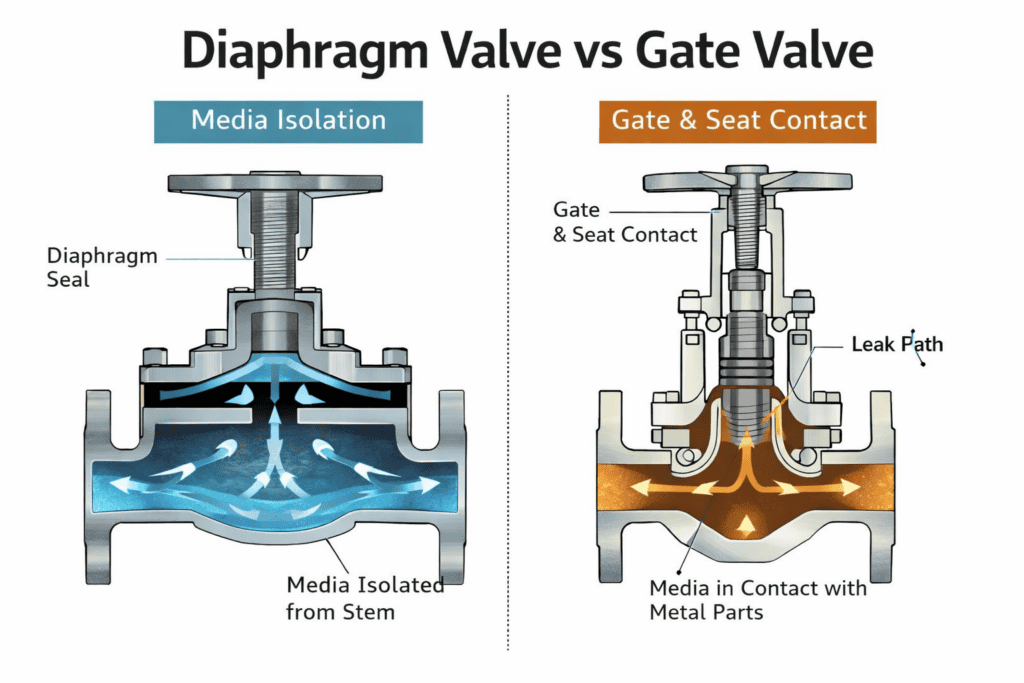

How diaphragm valves seal
The diaphragm presses against the valve seat to form a continuous, flexible seal. Because the diaphragm isolates the media from the stem and bonnet, there are fewer leak paths and fewer components exposed to corrosive or dirty fluids.This is why diaphragm valves are widely used in chemical dosing, wastewater treatment, and sanitary systems based on their direct-sealing diaphragm design.
How gate valves seal
Gate valves seal when the gate presses against the valve seats. This works well when the valve is fully closed and the fluid is clean. However, if the valve is cycled frequently or used partially open, erosion and vibration can damage the seating surfaces, leading to leakage.
Flow behavior and solids tolerance
| Characteristic | Diaphragm Valve | Gate Valve |
|---|---|---|
| Flow path | Streamlined, especially in straight-through type | Straight-through when fully open |
| Performance when partially open | Stable, depending on diaphragm and actuator | Unstable, causes turbulence and wear |
| Solids handling | Good for fine to moderate solids | Poor for solids; particles damage seats |
| Clogging risk | Low with straight-through design | High in slurry or dirty service |
Performance in Industrial Services
Water and wastewater
In water treatment plants, valves often face suspended solids, chemicals, and frequent cycling. Diaphragm valves are commonly selected for chemical dosing lines, sludge handling, and control points where tight shut-off and repeatable performance are required.
Gate valves are usually installed as main line isolation valves where the flow remains steady and the valve is rarely operated.
Chemical and corrosive media
Corrosive fluids attack packing, stems, and metal seating surfaces. Diaphragm valves avoid many of these problems by isolating the media from moving parts. With the correct diaphragm or lining material, they maintain stable sealing even in aggressive chemical service.
Gate valves can be used in chemical plants, but only when material selection and operating mode (fully open or closed) are carefully controlled.
Slurry and solid-bearing fluids
Slurry lines expose valves to abrasion, buildup, and clogging. Straight-through diaphragm valves allow solids to pass without trapping material in cavities, while the flexible diaphragm can seal around fine particles.
Standard gate valves tend to suffer from scale buildup and seat erosion in slurry service. Knife gate valves exist for special slurry duties, but they are a different product category from general gate valves.
Sanitary and high-purity service
In food, pharmaceutical, and high-purity chemical systems, contamination control is critical. Diaphragm valves are designed so that only the diaphragm and valve body contact the product. Smooth internal surfaces and minimal dead zones allow effective CIP and SIP cleaning, which is a core requirement in hygienic diaphragm valve design.
Gate valves expose the product to internal moving parts and cavities, making them difficult to clean and validate for hygienic service.
Maintenance, Reliability, and Lifecycle Cost
Typical failure patterns
| Valve type | Common wear point | Practical impact |
|---|---|---|
| Diaphragm valve | Diaphragm fatigue or chemical attack | Planned diaphragm replacement |
| Gate valve | Seat erosion, packing leaks, stem wear | Leakage, torque increase, unplanned repairs |
Diaphragm valves are maintained by replacing the diaphragm, usually without removing the valve body from the pipeline. Gate valve repairs often require deeper disassembly and longer downtime.
Maintenance and downtime
| Factor | Diaphragm Valve | Gate Valve |
|---|---|---|
| Routine service | Diaphragm replacement | Seat, stem, packing repair |
| In-line service | Often possible | Often requires removal |
| Downtime risk | Predictable | Can be unplanned |
Diaphragm Valve vs Gate Valve: Selection Logic
| Process requirement | Better choice |
|---|---|
| Corrosive or aggressive media | Diaphragm valve |
| Slurry or solids in fluid | Diaphragm valve (straight-through) |
| Sanitary or high-purity service | Diaphragm valve |
| Clean fluid, high pressure, isolation only | Gate valve |
| Frequent cycling or throttling | Diaphragm valve |
| Large pipeline, rarely operated | Gate valve |
This table reflects how engineers typically make the diaphragm valve vs gate valve decision in real plants.
How NTGD Designs Diaphragm Valves for These Conditions

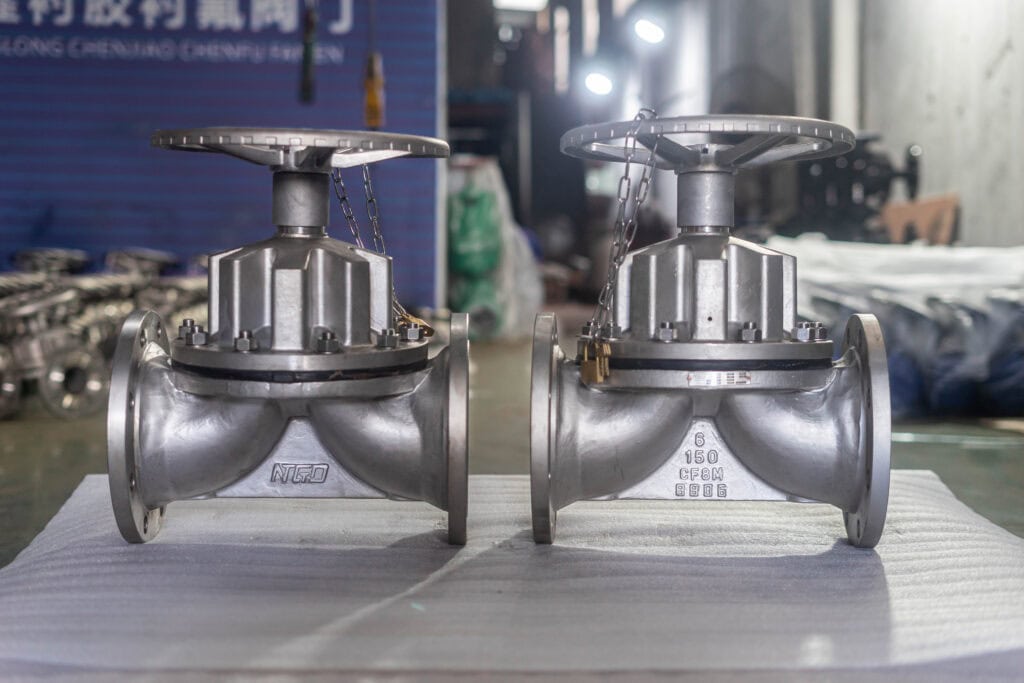

NTGD manufactures a full range of diaphragm valves, including weir-type diaphragm valves and straight-through designs, with body materials such as cast iron, carbon steel, stainless steel, and corrosion-resistant plastics. For corrosive or slurry service, diaphragm and lining materials are selected based on chemical compatibility and abrasion resistance.
Straight-through diaphragm valves are supplied for dirty or contaminated media to reduce clogging, while weir-type designs are used where controlled shut-off and compact design are preferred. NTGD’s manufacturing and inspection processes ensure consistent wall thickness, smooth internal surfaces, and reliable sealing performance, supporting stable operation in water treatment, chemical, food, and pharmaceutical applications.
FAQ
What is the main difference between diaphragm valves and gate valves?
Diaphragm valves isolate the process media using a flexible diaphragm, while gate valves rely on metal-to-metal seating. This makes diaphragm valves more suitable for corrosive, dirty, or hygienic service.
Can diaphragm valves handle slurries?
Yes, especially straight-through diaphragm valves, which allow solids to pass without clogging and maintain stable sealing.
Are gate valves good for flow control?
No. Gate valves are designed for on-off isolation and should not be used for throttling.
Why are diaphragm valves used in sanitary systems?
They provide smooth, crevice-free flow paths and isolate the media from mechanical parts, making cleaning and sterilization more reliable.
Which valve has lower long-term maintenance cost?
In corrosive, slurry, and sanitary service, diaphragm valves often reduce downtime and leakage-related maintenance. In clean isolation service, gate valves can be cost-effective.
