How to Properly Size a Diaphragm Valve for Industrial Systems (Chemical / Slurry / Hygienic): Flow Rate, ΔP, Media, Cv Examples & RFQ Checklist

Diaphragm valve sizing is not a catalog exercise—and it is not “match the pipe size.”

Most “valve quality” failures in the field trace back to hydraulic misapplication:

• wrong flow envelope,

• uncontrolled pressure drop (ΔP),

• and uncorrected media effects that slowly change the real Cv after commissioning.

Unlike ball or gate valves, diaphragm valves show:

• non-linear installed flow behavior across stroke,

• strong sensitivity to ΔP,

• and progressive capacity drift in slurry/corrosive/hygienic duty.

This guide is written as a field-validated sizing system for engineers and procurement teams working in chemical, slurry, and hygienic services.

---

Table of Contents (Anchor Navigation)

1. 60-Second Field Check + Decision Tree

2. Step 1 — Define Real Operating Flow Envelope

3. Step 2 — Set Your Allowable ΔP Envelope

4. Step 3 — Use Cv Correctly (Imperial + Metric) + Worked Example

5. Step 4 — Media Corrections: Cv Correction Ranges + Verification

6. Step 5 — Weir vs Straight-Through: Geometry Before Size

7. ΔP Boundary Table: Recommended / Caution / Not Recommended

8. Case Library: Chemical / Slurry / Hygienic (3 Cases)

9. Wrong-Sizing Cost Comparison (Relative Failure Cost)

10. Field Test Method: Measure ΔP + Back-Calculate Effective Cv

11. On-Site Troubleshooting Table (8–10 Symptoms)

12. RFQ Checklist: Tier 1 / Tier 2 / Tier 3 (Copy-Paste)

13. Glossary (15 Key Terms)

14. Engineering Boundaries + Compliance Note + Author/Org Statement

---

<a id=”60s-check”></a>

1) 60-Second Field Check (Commissioning Reality Check)

If you only do one thing, do this on site:

• If the valve normally operates below ~20% open → OVERSIZING risk
  (poor control resolution, hunting, localized diaphragm fatigue)

• If the valve often runs above ~90% open AND ΔP stays high → UNDERSIZING risk
  (high velocity erosion, diaphragm deformation, actuator overload margin shrink)

• If media includes solids or high viscosity → catalog Cv must be corrected

• If ΔP drifts upward after 1–3 months → capacity is changing (buildup/erosion/swelling)

---

1.1 Printable Branch Decision Tree

---

<a id=”step1″></a>

2) Step 1 — Define the Real Operating Flow Envelope (Not a Single Flow Number)

Sizing fails when engineers size for one “normal” point and ignore the envelope.

Learn how valve flow path geometry affects installed behavior on the diaphragm valve types page: Diaphragm valve types explained — weir, straight-through, 3-way designs.

You need three flows:

• Minimum stable flow (lowest controllable production / purge / flush / startup)

• Normal production flow (where it runs most hours)

• Peak / upset flow (startup surges, CIP/SIP cycles, bypass scenarios, emergency discharge)

Rule of thumb for control duty:
Your normal operating point should land in a stable control band—typically a mid-stroke range (not near-seat and not near fully open).

---

<a id=”step2″></a>

3) Step 2 — Establish an Allowable ΔP Envelope (ΔP Controls Durability)

ΔP is not just “energy loss.” In diaphragm valves, ΔP directly drives:

• diaphragm stress and fatigue concentration,

• sealing load behavior,

• erosion/buildup acceleration,

• and installed control sensitivity.

According to fluid control best practices, allowable pressure drop directly affects valve lifespan and control stability. For a technical explanation of pressure loss in control valves, see this engineering reference from Flow Control Network .

3.1 Typical ΔP Targets (Starting Engineering Targets)

Use these as screening targets, then refine with your duty and media.

Important: Also define upset ΔP (startup/peak) and verify it does not push the diaphragm into accelerated fatigue regimes.

---

<a id=”step3″></a>

4) Step 3 — Use Cv Correctly (Imperial + Metric) + One Worked Example

Cv is a capacity coefficient—it is not “the valve size.”
Catalog Cv is typically measured at fully open with clean water. Real service can be partial-open and media-affected, so your sizing must include installed reality.

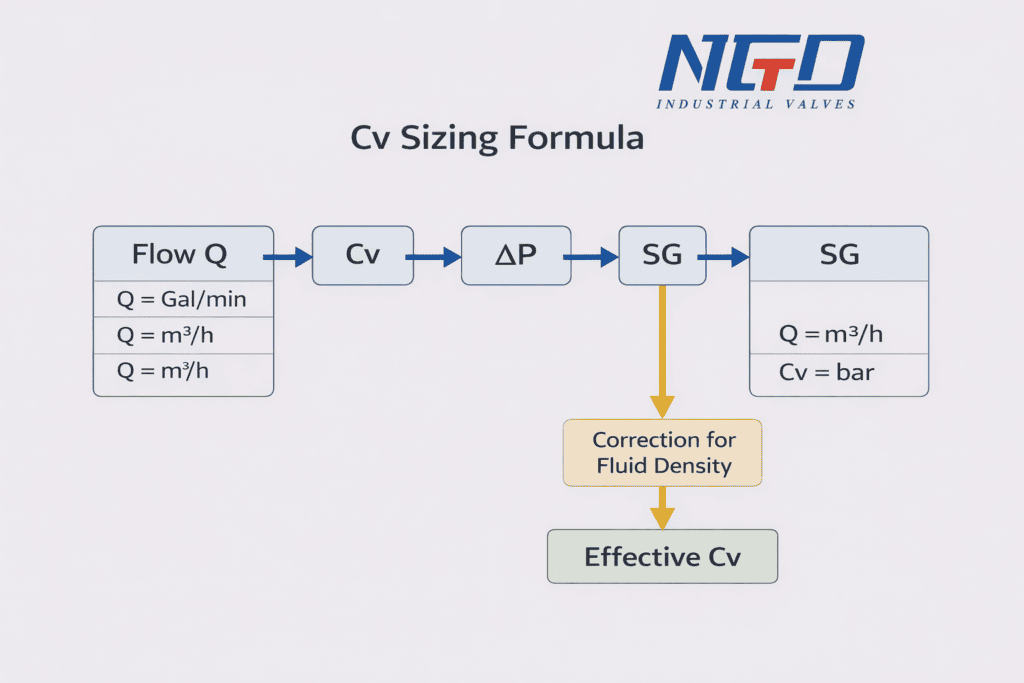

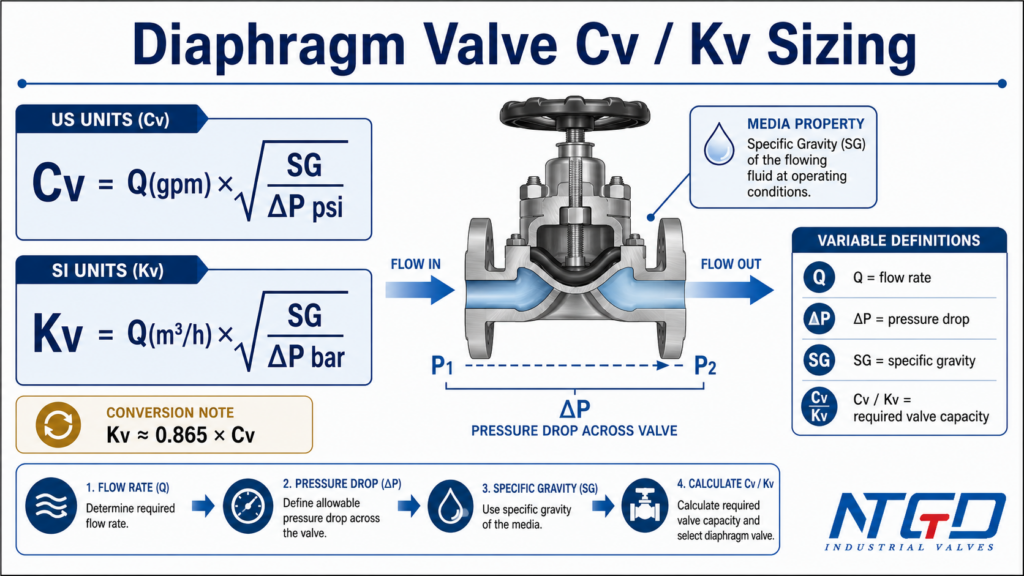

4.1 Cv Formula — Imperial (US)

Cv (US) relationship (common engineering form):

• Q(gpm) = Cv × √(ΔP(psi) / SG)
  Rearranged:

• Cv = Q(gpm) ÷ √(ΔP(psi) / SG)

Where:

• Q = flow rate (gpm)

• ΔP = pressure drop across valve (psi)

• SG = specific gravity (dimensionless)

4.2 Kv Formula — Metric (SI)

A practical metric relationship:

• Q(m³/h) = Kv × √(ΔP(bar) / SG)
  Rearranged:

• Kv = Q(m³/h) ÷ √(ΔP(bar) / SG)

Conversion:

• Kv ≈ 0.865 × Cv

• Cv ≈ 1.156 × Kv

The Cv/Kv relationships are widely used in valve sizing. For standard definitions and relationships, see Crane Technical Paper No. 410 (Control Valve Handbook) .

4.3 Worked Example (Complete, with SG and ΔP)

Process data (clean-ish liquid as baseline):

• Normal flow: 60 m³/h

• Allowable ΔP (normal): 0.8 bar

• Fluid SG: 1.10 (slightly heavier than water)

Step A — Calculate Kv
Kv = 60 ÷ √(0.8 / 1.10)

Compute inside root: 0.8 / 1.10 = 0.7273
√0.7273 ≈ 0.8528
Kv ≈ 60 / 0.8528 ≈ 70.4

Step B — Convert to Cv
Cv ≈ 1.156 × Kv ≈ 1.156 × 70.4 ≈ 81.4

Interpretation:
You need a diaphragm valve/geometry whose installed effective Cv at your normal operating stroke can support ~Cv 81 (or Kv 70).
If this is slurry/viscous/corrosive, you do not stop here—you apply correction in Step 4.

---

<a id=”step4″></a>

5) Step 4 — Media Corrections (Cv Correction Table + Triggers + How to Verify)

In real service, the “effective Cv” often declines over time due to:

• solids deposition narrowing the flow path,

• erosion altering geometry,

• diaphragm swelling/softening in aggressive chemistry,

• residue crystallization in hygienic duty.

5.1 Practical Cv Correction Coefficient Table (Field-Oriented)

Use this table as a starting engineering correction, then verify by ΔP drift testing (Section 10).

How to use:

1. Calculate baseline Cv/Kv (Step 3).

2. Multiply by correction factor (choose conservative end if uncertain).

3. Size so the valve can meet flow at corrected Cv, not catalog Cv.

4. Validate by field test and ΔP drift (Section 10).

---

<a id=”step5″></a>

6) Step 5 — Weir vs Straight-Through: Pick Geometry Before You Pick Size

Treat geometry selection as a first-order decision:

6.1 Weir-Type (Pros / Limits)

Best when you need:

• better low-flow modulation behavior,

• hygienic seat/shutoff style in many designs,

• compact installation in some layouts.

Watch-outs:

• higher restriction → higher ΔP for the same flow,

• potential buildup zone behind weir in slurry/fouling service.

6.2 Straight-Through (Pros / Limits)

Best when you need:

• higher capacity at lower ΔP,

• better solids passage / less buildup tendency.

Watch-outs:

• may sacrifice fine low-stroke control sensitivity (depends on design),

• still requires correction/verification in abrasive service.

Selection rule:
Valve type first → apply media correction second → pick size last.

For technical product specifications and internal design differences of weir-type diaphragm valves, see Weir-Type Diaphragm Valve — NTGD product page
For pneumatic actuation considerations, refer to Pneumatic diaphragm valve specs.

---

<a id=”dp-boundary”></a>

7) ΔP Boundary Table (Recommended / Caution / Not Recommended)

Use this as a practical boundary screen for diaphragm valves (final decision still depends on design, materials, and duty cycle).

Tip: If your process frequently pushes into the “Caution” band, you must plan verification (Section 10) and likely upsizing/geometry changes.

---

<a id=”cases”></a>

8) Case Library (3 Industry Cases)

Case 1 — Chemical (Corrosive Duty, Stable Control Priority)

Service: corrosive chemical transfer (SG > 1.0), moderate flow variability
Problem pattern: catalog Cv used directly, ignoring installed ΔP envelope and diaphragm material interaction
Sizing approach used:

• define min/normal/max flow envelope

• set ΔP target < 1 bar (normal)

• compute baseline Cv/Kv, then apply a conservative chemical correction

• verify early “stroke vs ΔP” stability after commissioning
  Outcome (what to look for):

• stable valve position in mid-stroke during normal production

• minimal ΔP drift after early run-in period

Case 2 — Slurry (Solids + Deposition Drift, Reliability Priority)

Service: slurry with solids loading (deposition + abrasion risk)
Common wrong choice: weir-type selected by pipe size, then forced to operate partial-open
Sizing approach used:

• prefer straight-through geometry to reduce restriction and buildup zones

• correct Cv downward using slurry correction band

• cap normal ΔP to reduce erosion/velocity
  Verification: measure ΔP at commissioning and again after 1–3 months
  Outcome:

• reduced ΔP drift trend compared to weir-type in the same duty

• longer maintenance interval and fewer “sudden control shifts”

Case 3 — Hygienic (Low ΔP + Cleanability Priority)

Service: high-purity / hygienic process with CIP/SIP cycles
Common wrong choice: oversized “for safety,” leading to near-seat operation and control hunting
Sizing approach used:

• keep normal ΔP low (<0.5 bar target)

• avoid oversizing to preserve controllability

• verify after CIP/SIP cycles that Cv does not degrade due to residue/crystallization
  Outcome:

• stable control without repeated retuning

• predictable cleaning performance without flow restriction surprises

---

<a id=”cost-case”></a>

9) Wrong-Sizing Cost Comparison (Relative Cost, Not Fake Dollar Numbers)

Scenario A — Wrong (Oversized for “Safety”)

• Normal operation <20% open → unstable control and localized diaphragm flexing

• Maintenance pattern: more frequent tuning + earlier diaphragm replacement

• Operational risk: higher chance of process variability and unplanned intervention

Scenario B — Correct (Sized to Corrected Cv + Verified ΔP)

• Normal operation in stable mid-stroke band

• Maintenance pattern: planned replacement interval, fewer emergency shutdowns

• Operational risk: lower drift, fewer surprises after 1–3 months

Relative cost logic (field reality):

• Wrong sizing usually increases intervention frequency (labor + downtime exposure)

• Correct sizing reduces unplanned stoppages and keeps maintenance scheduled

---

<a id=”field-test”></a>

10) Field Test Method (Measure ΔP + Back-Calculate Effective Cv)

This is the simplest way to confirm whether your sizing is real.

10.1 Measurement Setup (Minimum Tools)

• flow measurement (existing flowmeter preferred; otherwise temporary)

• upstream and downstream pressure readings

• valve position (from actuator/controller)

10.2 Where to Measure (Avoid Bad Data)

• measure pressure where the readings represent true upstream/downstream conditions

• avoid reading immediately next to turbulent fittings if possible

• record during normal steady production and peak/upset if safe

10.3 Back-Calculate Effective Cv/Kv (Installed Reality)

1. Record: Q, ΔP across valve, SG estimate, valve position

2. Compute Cv (US) or Kv (metric) using Section 4 formulas

3. Compare calculated effective Cv to your expected corrected Cv band

4. Repeat at:

   • commissioning day

   • ~1 month

   • ~3 months (especially for slurry/corrosive/hygienic)

Interpretation rules:

• effective Cv trending downward + ΔP trending upward = buildup/restriction or geometry change

• stable effective Cv but unstable control = oversizing/control loop dynamics or poor ΔP budget

---

<a id=”troubleshooting”></a>

11) On-Site Troubleshooting Table (8–10 Common Symptoms)

---

<a id=”rfq”></a>

12) RFQ Checklist (Tier 1 / Tier 2 / Tier 3) — Copy-Paste Table (CTA)

Use this table as your RFQ email body or WhatsApp message.
The more Tier 2/3 data you provide, the more accurate the sizing recommendation will be.

Tier 1 — Fast Screening (Minimum Data Set)

Tier 2 — Accurate Sizing (Performance & Life Drivers)

Tier 3 — Execution & Verification (Install + Actuation + Constraints)

---

<a id=”glossary”></a>

13) Glossary (15 Key Terms)

1. ΔP (Pressure Drop): pressure difference from valve inlet to outlet.

2. Cv: flow coefficient (US) describing water flow (gpm) at 1 psi ΔP.

3. Kv: metric flow coefficient describing water flow (m³/h) at 1 bar ΔP.

4. SG (Specific Gravity): density relative to water; affects Cv/Kv calculation.

5. Flow Envelope: min/normal/max flow conditions including upset scenarios.

6. Installed Cv (Effective Cv): real Cv calculated from field data, not catalog.

7. Oversizing: valve too large hydraulically; often operates near closed position.

8. Undersizing: valve too small; often near fully open with high ΔP.

9. Control Hunting: oscillation due to excessive gain/poor control resolution.

10. Weir-Type Diaphragm Valve: geometry with a weir/raised seat, higher restriction.

11. Straight-Through Diaphragm Valve: geometry with less restriction, better solids passage.

12. Minimum Stable Flow: lowest flow where control remains stable without hunting.

13. Duty Cycle: how often and how aggressively a valve cycles.

14. Buildup / Deposition Drift: gradual restriction growth changing ΔP over time.

15. Commissioning Verification: measuring position, flow, and ΔP to confirm sizing.

---

<a id=”compliance”></a>

14) Engineering Boundaries + Compliance Note + Author/Organization Statement

Engineering Boundaries (Practical)

• Diaphragm valves excel in corrosive, slurry (moderate solids), and hygienic duty when sized to corrected Cv and controlled ΔP.

• They require extra care when:

  • ΔP is consistently high,

  • cycling is extreme,

  • solids cause deposition drift,

  • or viscosity swings shift installed performance.

Compliance / Risk Note (No Over-Claims)

This guide provides a general engineering sizing framework. For safety-critical applications (toxic media, high consequence failure, safety instrumented systems, regulatory-critical duties), sizing and selection must be validated under applicable project requirements and by qualified engineering review. Field verification and documented acceptance criteria are recommended.

Author / Organization Statement (Truthful, Non-Exaggerated)

This sizing workflow is presented from an industrial application perspective and is intended for engineers and procurement teams evaluating diaphragm valve performance in chemical, slurry, and hygienic service conditions. It emphasizes installed behavior, media correction, and commissioning verification rather than catalog-only sizing.

---

FAQ — Diaphragm Valve Sizing

Should diaphragm valves be oversized for safety or future expansion?

Usually no.

Oversizing forces the valve to operate near closed position, causing poor control stability and concentrated diaphragm stress.
Correct sizing with controlled ΔP and proper geometry provides far longer service life than adding diameter “just in case.”

---

How much pressure drop (ΔP) is acceptable for diaphragm valves?

Lower is always better for durability.

Typical engineering targets:

• Hygienic service: < 0.5 bar
• Chemical service: < 1.0 bar
• Slurry service: < 1.0 bar

Consistently higher ΔP accelerates wear, erosion, and diaphragm fatigue.

---

Is catalog Cv accurate for slurry or viscous media?

No.

Catalog Cv is measured with clean water at full stroke.
Solids, viscosity, buildup, and chemical interaction commonly reduce real effective Cv by 10–50% in field service.

Cv correction and post-commissioning verification are essential.

---

Weir-type or straight-through diaphragm valve — which sizes better?

Straight-through designs generally handle higher flow at lower ΔP and are better for slurry and fouling service.

Weir-type valves offer finer low-flow control but create higher restriction and buildup risk.

Geometry choice should come before final valve size.

---

How can I quickly confirm if my diaphragm valve is correctly sized?

Measure:

Flow rate + pressure drop + fluid SG
Then back-calculate effective Cv.

Stable ΔP and stable effective Cv over time indicate correct sizing.
Rising ΔP usually means restriction, buildup, or misapplication.
