Manual vs Pneumatic vs Electric Diaphragm Valves: Actuation Selection for Industrial Systems

Quick Answer: Which Diaphragm Valve Actuation Type Should You Choose?

When comparing manual vs pneumatic vs electric diaphragm valve actuation, the right choice depends on operation frequency, operator access, available utilities, control requirements, and the required fail-safe behavior.

Choose manual diaphragm valve actuation when the valve is operated locally, the operation frequency is low, and the process does not require automatic control. Manual operation can reduce installation and maintenance complexity because it does not require plant air, electrical power, control wiring, solenoids, or feedback devices.

Choose pneumatic diaphragm valve actuation when the process needs frequent on-off operation, remote control, quick cycling, automatic sequencing, or a defined fail-safe position, and a reliable compressed-air supply is available. Pneumatic actuation becomes a stronger candidate when repeated manual operation would create delays, inconsistent timing, or unnecessary operator workload.

Choose electric diaphragm valve actuation when the site prefers electrical control, position feedback, remote operation, or modulating control and the control system can support the required voltage, signal, enclosure, and failure-position strategy. Electric actuation is useful when power and control integration are more practical than compressed air, but it should not be selected before the command type, feedback requirement, and power-loss behavior are defined.

A wrong actuation choice can create real operating problems. Manual operation in a frequent or remote service may delay response and reduce repeatability. Pneumatic actuation without stable air supply may cause incomplete movement or unreliable fail-safe behavior. Electric actuation without confirmed voltage, signal, and feedback requirements may lead to control-system incompatibility or commissioning rework.

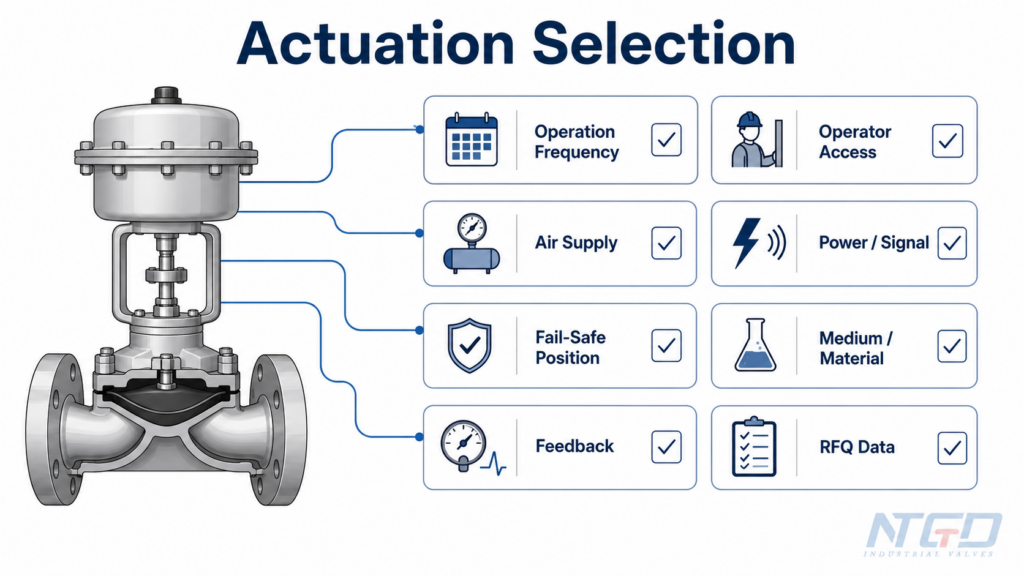

Actuation selection should not be made in isolation. The final decision must also be checked against the process medium, pressure, temperature, diaphragm material, body or lining material, valve size, end connection, control signal, maintenance access, and fail-safe requirement.

Actuation choice	Usually fits when	Main checks before selection
Manual	Local and low-frequency operation is acceptable	Operator access, handwheel position, maintenance access
Pneumatic	Automated cycling is needed and compressed air is available	Air quality, fail-safe position, NC / NO / double-acting mode
Electric	Electrical control, feedback, or modulation is required	Voltage, command type, control signal, enclosure, power-loss behavior

What Does Diaphragm Valve Actuation Type Mean?

A diaphragm valve actuation type describes how force is applied to move the diaphragm and open or close the valve. In a diaphragm valve, the actuator does not directly touch the process media. Instead, the actuator moves the stem and compressor, and the compressor presses or releases the diaphragm against the sealing area inside the valve body.

In simple terms:

• manual actuation uses human force through a handwheel, lever, or similar operator;
• pneumatic actuation uses compressed air to move the actuator;
• electric actuation uses electrical power or an electrical signal to move the actuator.

This is different from the valve body design. The actuation method controls how the valve is operated. The valve body design controls how the flow path and sealing geometry are arranged.

Actuation method controls how force reaches the diaphragm

The actuator is the power source of the valve operation. In a manual valve, the operator provides the force. In a pneumatic valve, the air supply provides the force. In an electric valve, an electric actuator, motorized mechanism, solenoid-assisted device, or powered control mechanism provides the motion.

For a diaphragm valve, the actuation force must be suitable for the diaphragm design and valve size. A larger valve, a higher differential pressure, a stiffer diaphragm material, or a more demanding shutoff requirement may need more operating force than a small low-pressure valve.

The actuator, stem and compressor must work with the diaphragm design

A diaphragm valve does not work like a ball valve, butterfly valve, gate valve, or globe valve. Its shutoff depends on the flexible diaphragm being pressed into the correct sealing position. The actuator must move the internal parts in a controlled way so that the diaphragm seals without being overstressed.

This is why actuator selection should be checked together with:

• diaphragm material;
• valve body design;
• valve size;
• operating pressure;
• process temperature;
• required shutoff behavior;
• cycle frequency;
• expected maintenance interval.

The actuator force and stroke must match the diaphragm’s flexibility, compression travel, and sealing requirement. If the actuator package is not matched to the diaphragm behavior, the valve may suffer from poor shutoff, excessive diaphragm compression, slow response, or shortened diaphragm service life.

Actuation selection does not replace material or sizing review

Choosing between manual, pneumatic, and electric actuation does not decide whether the valve body, diaphragm, or lining material is suitable for the fluid. It also does not replace valve sizing.

For example, a pneumatic diaphragm valve may be the right actuation method for a frequent cycling line, but the diaphragm material still needs to be checked against the fluid, temperature, pressure, and cleaning conditions. An electric diaphragm valve may fit a control system, but the valve size, flow requirement, and end connection still need separate review.

Actuation selection is one part of diaphragm valve selection, not the whole specification. Even if the actuation method is correct, poor material compatibility or incorrect sizing can still lead to early diaphragm damage, shutoff leakage, unstable operation, or shortened maintenance intervals.

When chemical exposure, cleaning conditions or diaphragm life are key risks, review diaphragm material boundaries in the diaphragm material selection guide before finalizing the actuator package.

Actuation Type vs Body Design Type: Do Not Mix These Decisions

Many selection mistakes happen because actuation type, body design type, and material selection are treated as the same decision. They are related, but they answer different engineering questions.

Decision type	Examples	What it decides	Where it matters
Actuation method	Manual, pneumatic, electric	How the valve is operated	Operation frequency, automation, fail-safe, control signal
Body / flow-path design	Weir type, straight-through type, 3-way designs	How the fluid passes through the valve	Drainability, solids handling, flow path, installation space
Wetted-part material	Body material, lining, diaphragm material	What touches the fluid	Corrosion, temperature, chemical compatibility, hygiene
Connection type	Flanged, threaded, clamp, union, weld-end options	How the valve connects to the piping	Piping standard, installation, maintenance access
Control requirement	On-off, modulating, feedback, position indication	How the process wants the valve to behave	Automation system, signal type, operating sequence

For a deeper comparison of weir, straight-through, 3-way and block body designs, use the diaphragm valve types guide as a separate body-design reference instead of mixing body style with actuation selection.

In an RFQ, these decisions should be recorded separately: actuation defines how the valve is operated, while body design and wetted materials define how the valve fits the process.

Manual, pneumatic and electric are actuation methods

Manual, pneumatic, and electric are not diaphragm valve body types. They describe the operating method. A diaphragm valve body may be configured for manual operation in one project and automated operation in another, depending on valve design and available actuator options.

Weir, straight-through and 3-way are body or flow-path designs

Weir type, straight-through type, and 3-way diaphragm valves describe the internal body or flow-path arrangement. These design types affect flow behavior, cleanability, solids handling, dead space, and process suitability. They do not automatically decide whether the valve should be manual, pneumatic, or electric.

Diaphragm, lining and body material are wetted-part decisions

The diaphragm, lining, and body material must be selected according to the medium, pressure, temperature, cleaning method, corrosion risk, abrasion risk, and industry requirements. Actuation choice cannot compensate for the wrong diaphragm material in a corrosive, abrasive, high-temperature, or cleaning-intensive service.

How Actuation Moves the Diaphragm Inside the Valve

A diaphragm valve isolates the actuator mechanism from the process media by using a flexible diaphragm. The actuator applies motion from outside the wetted area, while the diaphragm forms the sealing barrier inside the valve.

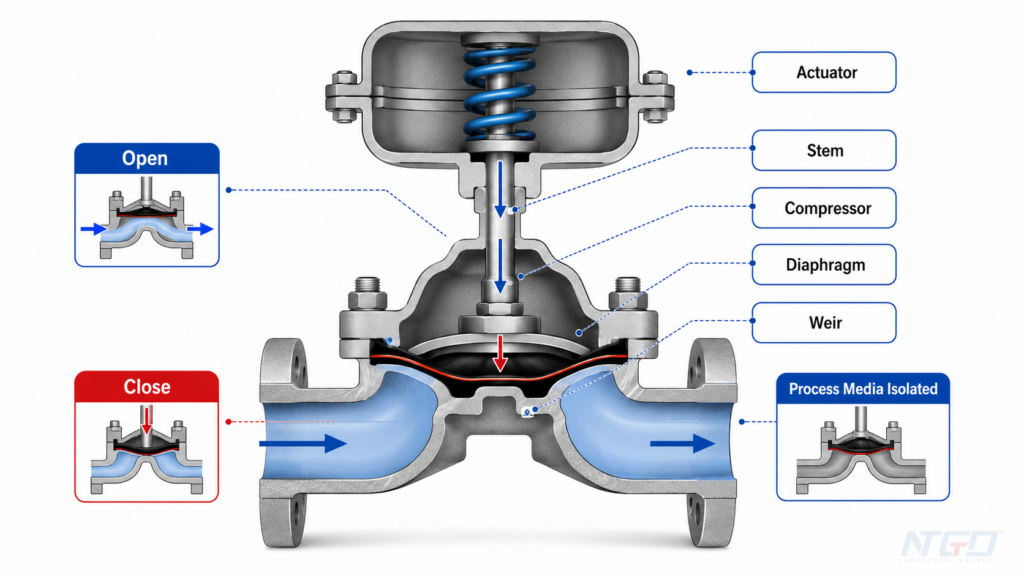

A simplified movement path is:

Actuator force → stem movement → compressor movement → diaphragm movement → valve opens or closes

For a labeled view of the valve body, stem, compressor, diaphragm and actuator path, see the diaphragm valve diagram and parts guide as a supplemental construction reference.

Manual force, air pressure or electric motion moves the stem

In a manual diaphragm valve, the operator turns a handwheel or uses a manual operator. This movement is transferred through the stem.

In a pneumatic diaphragm valve, compressed air acts on the actuator mechanism. Depending on the design, air pressure and spring force may move the stem to open or close the valve.

In an electric diaphragm valve, electrical power or an electrical control signal drives the actuator mechanism. This may be used for on-off control, position control, feedback, or modulation, depending on the valve and actuator design.

The compressor presses or releases the diaphragm

The stem movement is transferred to the compressor. The compressor supports the diaphragm and pushes it toward the sealing surface when the valve closes. When the valve opens, the compressor allows the diaphragm to lift away from the sealing area so the fluid can pass through the valve.

The compressor and diaphragm must work together correctly. If the actuator is oversized, underspecified, poorly adjusted, or not suitable for the diaphragm design, the valve may suffer from poor sealing, slow response, excessive diaphragm stress, or shortened diaphragm life.

The diaphragm isolates the actuator from the process media

The diaphragm separates the actuator side from the wetted side. This means actuator selection can be reviewed separately from corrosion compatibility, but it is not completely independent of the diaphragm. The diaphragm’s stiffness, stroke, compression behavior, and expected cycling duty still limit which actuator package is suitable.

This is why actuation selection should connect mechanism to service duty. A manual, pneumatic, or electric actuator does not operate a metal plug or disc directly in the fluid. It moves a flexible sealing element, and the selected actuation method affects how consistently that diaphragm is loaded, released, and maintained over time.

Manual Diaphragm Valve Actuation: When Simple Local Operation Fits

Manual diaphragm valve actuation is usually the simplest option. It does not require compressed air, electrical power, control wiring, solenoids, or automated feedback devices. For many isolation points, manual operation is enough.

Best-fit conditions for manual operation

Manual actuation is usually suitable when:

• the valve is operated only occasionally;
• the operator can access the valve safely;
• the valve is not part of an automatic sequence;
• remote control is not required;
• fail-safe automation is not required;
• the plant wants a simple and easy-to-maintain valve configuration;
• the valve is used for local isolation, sampling support, maintenance isolation, or commissioning.

For small or medium valves in accessible locations, a manual diaphragm valve can be practical, economical, and easy to understand for operators.

When local handwheel operation is confirmed as the right route, the next product-level review can move to the manual diaphragm valve configuration.

Limits of manual operation in frequent or remote service

Manual actuation becomes less suitable when the valve must open and close frequently, when the valve is installed in a difficult location, or when the process needs automatic control. Frequent cycling increases the working duty on the diaphragm and operating mechanism. Manual operation also adds human timing variation, which can reduce repeatability in batch, cleaning, or sequencing applications.

A manual valve depends on the operator. If the process needs fast cycling, remote operation, interlock control, predictable fail-safe behavior, or repeated timing, pneumatic or electric actuation should enter the formal selection review.

Manual operation can also create issues when the handwheel is hard to reach, when the installation position limits operator access, or when the valve is placed in a hazardous or restricted area. In batch sequences, CIP / cleaning routines, or processes that require repeatable timing, manual operation may create inconsistent process results or make cleaning verification more difficult.

RFQ data to confirm before selecting manual actuation

Before selecting manual actuation, confirm:

• valve size;
• medium;
• pressure and temperature;
• operation frequency;
• required handwheel or operator orientation;
• installation location;
• operator access;
• maintenance access;
• end connection;
• diaphragm and body material;
• whether future automation may be required.

Manual actuation may be simple, but it still needs to match the site layout, operating routine, and maintenance plan.

Pneumatic Diaphragm Valve Actuation: When Compressed Air Makes Sense

Pneumatic diaphragm valve actuation is commonly reviewed when the valve needs automatic operation and the site has a reliable compressed-air supply. In this configuration, compressed air provides the operating force, while the diaphragm remains the sealing element that isolates the actuator mechanism from the process media.

A pneumatic diaphragm valve may be used for on-off automation, frequent cycling, remote control, or process sequences where manual operation is too slow or inconsistent.

Best-fit conditions for pneumatic operation

Pneumatic actuation is usually suitable when:

• the valve must cycle frequently;
• the valve must be operated remotely;
• compressed air is available and reliable;
• the process needs quick open / close operation;
• the valve is part of an automated sequence;
• a fail-safe position is required;
• operators should avoid frequent local operation;
• the valve must work with solenoid valves, positioners, limit switches, or control logic.

Pneumatic operation is a strong candidate in industrial systems where plant air is already part of the control infrastructure. It is especially useful for repetitive on-off service, automated process lines, and systems where loss-of-air behavior must be defined before the valve is ordered.

Air supply, cycle frequency and automation requirements

The first question is not simply “Do we need a pneumatic diaphragm valve?” The more important question is whether the process conditions justify pneumatic actuation.

Review:

• Is compressed air available at the valve location?
• Is the air supply clean, dry, and stable enough for actuator operation?
• How often will the valve open and close?
• Does the valve need fast actuation?
• Is the valve part of a PLC or DCS sequence?
• Does the process need position feedback?
• If loss-of-air behavior matters to the process, what valve position must be reached?

A pneumatic actuator can be an excellent choice when the utility system supports it. If the site does not have reliable compressed air, pneumatic actuation may add complexity without improving process reliability. Unstable or contaminated air supply can cause slow response, incomplete movement, or unreliable position feedback, so air quality and utility reliability must be confirmed before treating pneumatic actuation as the default choice.

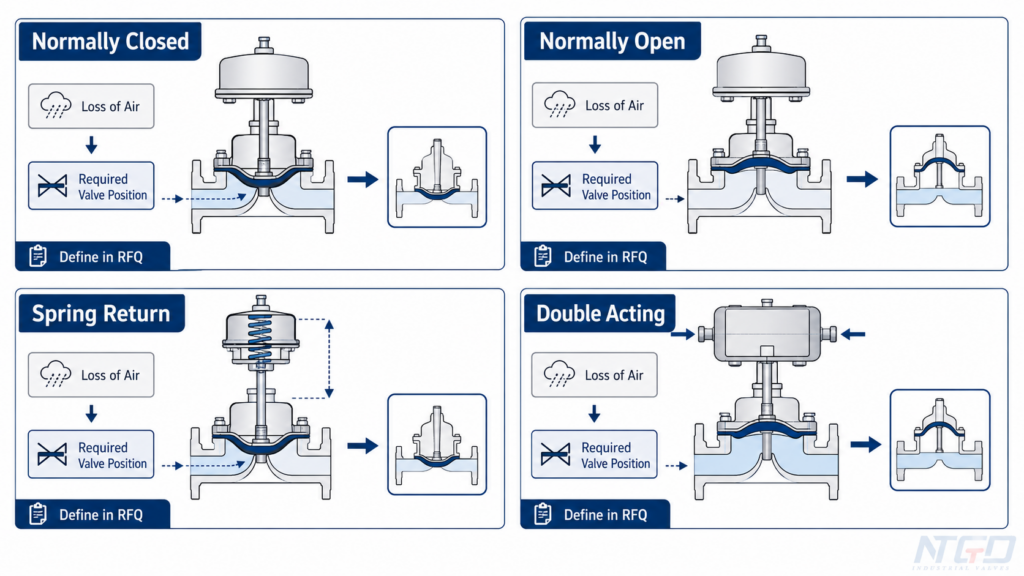

Normally closed, normally open, spring-return and double-acting options

Pneumatic diaphragm valve selection often requires a clear fail-safe review. The terms normally closed, normally open, spring-return, and double-acting describe how the actuator behaves under air supply and failure conditions.

Pneumatic option	General behavior	Typical selection question	RFQ note
Normally closed	Valve tends to close when the control condition is not active	Should the valve close when air or signal is lost?	Confirm required fail position
Normally open	Valve tends to open when the control condition is not active	Should the valve remain open unless actuated closed?	Confirm process safety logic
Spring-return	Spring force drives the valve toward a defined position when air is removed	Is a fail-open or fail-close position required?	Define failure mode clearly
Double-acting	Air is used for both opening and closing movement	Is spring-return fail action unnecessary or handled elsewhere?	Confirm air logic and backup strategy

The RFQ should define the target valve position under loss of air, loss of signal, normal shutdown, and emergency condition. The actuator default should not be used as a substitute for the process safety requirement.

Product-page boundary: pneumatic diaphragm valve as a product term

Once pneumatic actuation is confirmed as suitable for the service, the next step is to match the actuator package to the actual valve configuration. That review should include valve size, body material, diaphragm material, lining material, actuator mode, fail-safe position, control accessories, end connection, and project tag requirements.

If compressed air, fail position and automation logic are already confirmed, review the pneumatic diaphragm valve configuration for actuator mode, accessories and project tag requirements.

At that stage, the phrase pneumatic diaphragm valve becomes a product configuration topic rather than only a comparison topic. The selection guide helps decide whether pneumatic actuation fits the application; the RFQ or product review then confirms the exact pneumatic diaphragm valve configuration.

Electric Diaphragm Valve Actuation: When Powered Control Is the Better Fit

Electric diaphragm valve actuation is reviewed when the project needs powered operation, electrical control, remote actuation, position feedback, or modulation and the site can support the required power and control system.

Electric actuation can be useful when compressed air is not available, when electrical control is preferred, or when the process requires a specific control signal or feedback arrangement.

Best-fit conditions for electric operation

Electric actuation is usually suitable when:

• the site has electrical power but no convenient compressed-air supply;
• the valve must integrate with an electrical control system;
• the process needs remote operation;
• position feedback is required;
• the valve may need controlled positioning;
• in many standard configurations, more controlled movement is preferred over very fast pneumatic cycling;
• the project requires electrical signal compatibility with automation equipment.

Electric actuation can be useful in packaged systems, remote installations, skid-mounted equipment, water treatment systems, or process lines where electrical infrastructure is easier to manage than compressed air. Actual operating speed depends on actuator design, valve size, and application requirements, so electric actuation should not be described as automatically slower or faster than pneumatic actuation in every project.

On-off, solenoid-assisted and motorized / modulating control

Electric diaphragm valve actuation should not be treated as one single configuration. Depending on the valve and actuator design, the electric arrangement may support:

• simple on-off operation;
• solenoid-assisted control;
• motorized open / close operation;
• modulating or position-control operation;
• feedback signal or position indication.

The required control mode must be defined before selecting the valve. A simple on-off valve does not need the same actuator package as a valve used for position control or modulation. If the process only needs open / close operation, an overly complex electric actuator may not be necessary. If the process needs feedback or controlled positioning, a basic on-off arrangement may not be enough.

Power supply, voltage, feedback and control signal checks

Before selecting electric actuation, confirm:

• available power supply;
• voltage requirement;
• command type;
• control signal type;
• on-off or modulating requirement;
• opening / closing sequence;
• feedback requirement;
• enclosure or environmental requirement;
• power-loss behavior;
• manual override requirement, if needed;
• cable routing and installation space.

Electric actuation can provide strong control integration, but it requires careful coordination with the electrical and automation design. Without confirmed voltage, command type, feedback requirement, and failure behavior, electric actuation selection is incomplete and may cause control-system incompatibility, rewiring, or actuator replacement during commissioning.

For general terminology around electric actuator commands, feedback, commissioning and failsafe behavior, Valve Magazine’s overview of electric actuator control and feedback requirements can be used as a neutral technical reference.

Future-page boundary: electric diaphragm valve as a product term

The phrase electric diaphragm valve may deserve a future product or product-support page if the product line is confirmed. In this article, it remains one actuation option in a broader diaphragm valve actuation selection guide.

If a project requires electric actuation, the next specification review should focus on valve size, diaphragm material, body material, voltage, control signal, feedback, enclosure, failure position, and operating environment.

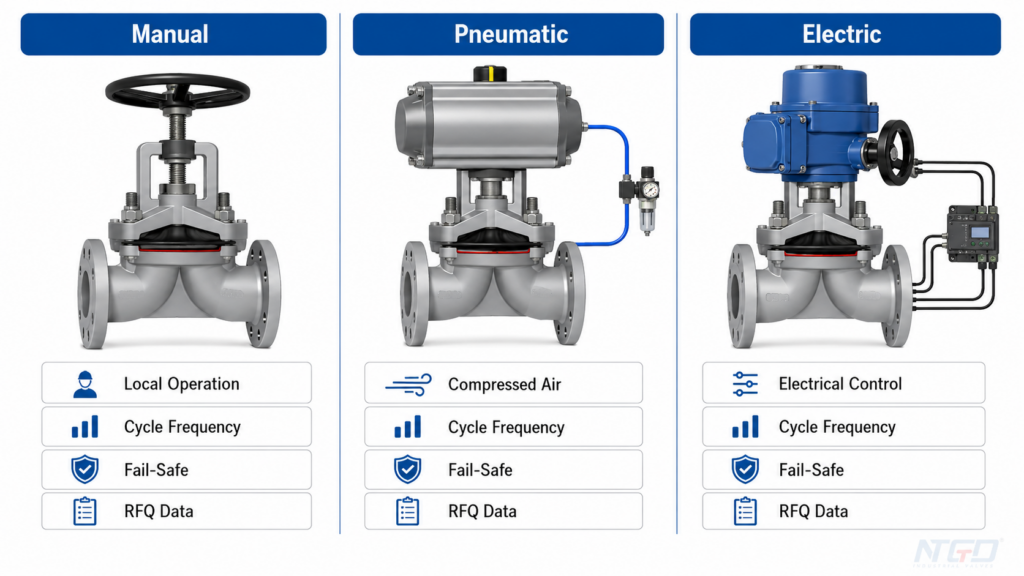

Manual vs Pneumatic vs Electric Diaphragm Valve Comparison Matrix

The comparison between manual, pneumatic, and electric diaphragm valve actuation should be based on operating conditions rather than preference alone.

Selection factor	Manual actuation	Pneumatic actuation	Electric actuation
Power source	Human operation	Compressed air	Electrical power
Best use	Local, low-frequency operation	Automated on-off cycling and remote operation	Electrical control, feedback, or modulation
Operation frequency	Low to moderate	Moderate to high	Low to moderate, or controlled operation depending on actuator
Remote operation	Not suitable unless separately assisted	Suitable when connected to air and control system	Suitable when connected to power and control system
Control precision	Operator-dependent	Good for automated on-off; position control depends on accessories	Can support controlled positioning if actuator and control system allow
Fail-safe behavior	Operator-dependent	Often reviewed through spring-return / NC / NO / double-acting design	Must be reviewed through actuator design and power-loss behavior
Site utility requirement	Operator access	Reliable compressed air	Electrical power and control wiring
Maintenance focus	Handwheel, stem, diaphragm, access	Air supply, actuator, solenoid, tubing, diaphragm	Electrical actuator, wiring, feedback, diaphragm
Cost / complexity	Usually simplest	More complex than manual	Often more complex than manual; depends on control requirement
Main risk if misused	Operation delay, inconsistent timing, poor repeatability in frequent service	Unreliable action or wrong fail position if air supply / fail mode is undefined	Control incompatibility or commissioning rework if voltage / signal / feedback is not defined

Use this matrix to eliminate unsuitable choices first. Remove manual actuation when access, timing, or repeatability is unacceptable. Remove pneumatic actuation when air supply or fail-safe behavior cannot be confirmed. Remove electric actuation when power, command type, signal, or feedback requirements are not defined.

Power source, operation frequency and response behavior

Operation frequency is one of the fastest ways to narrow the choice. Low-frequency, accessible operation can stay manual. Frequent cycling usually moves the review toward pneumatic or electric actuation. Electrical control, feedback, or controlled positioning moves the review toward electric actuation or a controlled pneumatic arrangement.

Control precision, feedback and automation integration

Manual valves provide direct human control but do not provide automatic feedback unless additional devices are installed. Pneumatic valves can be integrated with solenoids, limit switches, positioners, and control systems. Electric valves can be integrated with electrical commands and feedback signals, depending on actuator design.

The project should define whether the valve only needs open / close commands or whether it needs position feedback, modulating control, or process sequence integration.

Maintenance, site utility and cost-complexity tradeoffs

Manual valves are usually simpler to maintain but require operator access. Pneumatic valves require air supply quality, tubing, control components, and actuator checks. Electric valves require electrical installation, wiring, actuator checks, and control compatibility.

The “best” actuation type is not always the most advanced one. It is the one that fits the operation frequency, utility availability, safety logic, maintenance plan, and project specification.

Fail-Safe, Control Signal and Automation Checks Before Selection

Fail-safe and control behavior must be defined before the valve is ordered. These checks are especially important for automated diaphragm valves.

Loss of air, loss of power and required valve position

A key question is:

What should the valve do when air, power or control signal is lost?

Possible answers include:

• close to protect the process;
• open to relieve or continue flow;
• stay in last position;
• move to a defined position through spring-return or actuator logic;
• require manual intervention.

The required failure behavior depends on the process. It cannot be guessed from the actuator name alone.

For pneumatic actuation, loss-of-air behavior is usually tied to spring-return, normally closed, normally open, or double-acting logic. For electric actuation, loss-of-power behavior may differ by actuator design. Some packages may stay in last position, some may require a defined return function, and some may need backup power or manual intervention. The project should define this behavior before treating electric actuation as a safe-position solution.

On-off vs modulating control requirements

On-off service means the valve mainly opens or closes. Modulating service means the valve may be required to move to intermediate positions for flow control or process adjustment.

Not every diaphragm valve application needs modulation. In many systems, diaphragm valves are selected for isolation or shutoff. If modulation is required, the actuator, diaphragm behavior, flow characteristic, control accessories, and process requirement need closer review.

Positioner, limit switch and feedback signal considerations

For automated diaphragm valve actuation, the buyer may need to specify:

• limit switch;
• position indicator;
• positioner;
• feedback signal;
• solenoid valve;
• control signal;
• local manual override;
• fail-safe requirement.

These accessories should be specified during actuator selection, not added as an afterthought. If control accessories are omitted during RFQ, later modification may require mechanical space changes, additional wiring, control-system I/O changes, or extended site commissioning.

For a broader automation reference, the control valve actuator feedback and limit-switch concepts section from Control.com explains why actuator position feedback and limit indication should be defined before commissioning.

How to Select the Right Diaphragm Valve Actuation Method by Service Conditions

A practical selection process should begin with the service conditions, not with the actuator name.

Start with operation frequency and operator access

Ask:

• How often will the valve operate?
• Is the valve easy to reach?
• Is operator access safe?
• Is operation part of a process sequence?
• Would manual operation delay production or cleaning?
• Does the valve need to operate at night or without local staff?

If operation is infrequent and local access is good, manual actuation may be enough. If operation is frequent or remote, automated actuation should enter the review.

Check air supply, power supply and control system availability

Pneumatic actuation depends on compressed air. Electric actuation depends on electrical power and control wiring. A project should confirm which utility is more reliable and practical at the valve location.

Site condition	Selection direction
No air, no power, local access available	Manual may be simplest
Reliable compressed air already available	Pneumatic becomes a strong candidate
Electrical control system preferred	Electric becomes a strong candidate
Remote automatic operation required	Pneumatic or electric should be evaluated
Fail-safe position required	Pneumatic spring-return or electric failure strategy must be defined
Feedback required	Pneumatic accessories or electric actuator feedback must be specified
Frequent cycling	Pneumatic often deserves early review
Modulating or controlled positioning	Electric or controlled pneumatic arrangement should be reviewed

For corrosive, washdown, hygienic, outdoor, or hazardous-area environments, actuator selection should also include enclosure, material exposure, tubing or cable routing, and maintenance access checks.

Match actuation choice to medium, pressure, temperature and environment

The actuation choice must be compatible with the valve’s mechanical and material selection. The process medium, pressure, temperature, corrosion risk, abrasive content, cleaning condition, and environmental exposure all affect the final specification.

For example:

• corrosive media may require careful body, lining, and diaphragm review;
• sanitary or high-purity service may require specific body design and cleanability review;
• outdoor or washdown environments may require environmental protection review;
• hazardous or restricted areas may require project-specific electrical or pneumatic review;
• frequent cleaning may affect diaphragm material and maintenance planning.

These conditions do not automatically select manual, pneumatic, or electric actuation, but they influence the actuation package and the required accessories. For example, even when pneumatic air supply is available, corrosive service still requires diaphragm, lining, and body compatibility to be confirmed before the actuator package is finalized.

Confirm maintenance access and lifecycle expectations

Maintenance planning should be part of actuation selection. A manual valve may be simple, but it still needs access for operation and maintenance. A pneumatic valve may be efficient, but it requires air-system and actuator checks. An electric valve may integrate well with a control system, but it requires electrical and actuator maintenance.

Selection should consider the expected lifecycle, spare parts strategy, diaphragm replacement access, actuator service access, and operator training.

RFQ and Specification Checklist for Diaphragm Valve Actuation

A clear RFQ helps avoid wrong actuator selection. Complete service data allows the supplier to eliminate unsuitable actuation options early and recommend a valve configuration that matches the process, utilities, and control logic.

Process data to provide

RFQ item	Why it matters
Medium / fluid	Prevents diaphragm, lining, or body material mismatch
Pressure	Helps confirm valve body strength and required actuation force
Temperature	Reduces risk of diaphragm or body material misapplication
Valve size	Helps define operating force, actuator size, and product route
Flow requirement	Confirms whether the valve is mainly for on-off service or control duty
Solids, slurry, viscosity or corrosiveness	Helps avoid wrong body design, diaphragm material, or lining selection
Cleaning method	Confirms whether sanitary, food, beverage, or chemical cleaning conditions affect the specification

If the project also needs flow-rate, ΔP and installed control checks, use the diaphragm valve sizing guide as a separate sizing reference before final RFQ release.

Control and utility data to provide

RFQ item	Why it matters
Operation frequency	Defines whether manual operation is practical or automation is required
Local or remote operation	Prevents selecting a manual valve for an inaccessible or remote point
Available compressed air	Confirms whether pneumatic actuation is feasible and reliable
Available power / voltage	Confirms whether electric actuation can be integrated without redesign
Control signal	Prevents mismatch between the actuator and the control system
On-off or modulating requirement	Defines actuator type, accessory needs, and control expectations
Control system type	Reduces risk of PLC / DCS / skid integration problems

Fail-safe and feedback data to provide

RFQ item	Why it matters
Required fail position	Defines whether fail-open, fail-close, stay-put, or manual intervention is required
Loss-of-air behavior	Prevents selecting the wrong pneumatic actuator mode
Loss-of-power behavior	Prevents wrong electric actuator failure behavior during shutdown or outage
Limit switch requirement	Confirms whether open / closed feedback is needed
Positioner requirement	Defines whether controlled positioning is required
Local indication requirement	Helps operators and maintenance teams verify valve status
Manual override requirement	Reduces risk during emergency operation or maintenance access

Product configuration data to provide

RFQ item	Why it matters
Body material	Prevents mismatch with medium, cleaning method, or environment
Diaphragm material	Reduces risk of chemical, temperature, or wear-related failure
Lining material	Helps avoid corrosion problems in aggressive service
End connection	Prevents piping and installation mismatch
Installation orientation	Confirms operator access, actuator clearance, and maintenance space
Quantity and tag data	Supports project documentation and specification control
Existing valve reference, if available	Helps match replacement, upgrade, or retrofit requirements

The RFQ should not only say “manual,” “pneumatic,” or “electric.” It should explain why that actuation type is needed and how the valve will operate in the system.

FAQ: Manual, Pneumatic and Electric Diaphragm Valve Actuation

Can diaphragm valves be automated?

Yes. Diaphragm valves can be operated manually or automated with pneumatic or electric actuation, depending on the valve design and available actuator options. Automation should be selected together with cycle frequency, air or power supply, control signal, fail-safe position, and diaphragm material.

What are the main diaphragm valve actuation types?

The main diaphragm valve actuation types are manual, pneumatic, and electric. Manual actuation uses local human operation. Pneumatic actuation uses compressed air. Electric actuation uses electrical power or an electrical control signal. Other actuator concepts may exist, but this article focuses on the three common selection options for industrial diaphragm valve projects.

Manual vs pneumatic diaphragm valve: which is better?

A manual diaphragm valve is usually better for low-cycle, accessible, low-complexity service. A pneumatic diaphragm valve is usually better for frequent cycling, remote operation, repeatable timing, or defined fail-safe behavior when compressed air is available. If the valve location is difficult to reach, the timing must be repeatable, or manual operation may affect production rhythm, pneumatic or electric actuation should enter the formal selection review.

When should I use pneumatic actuation?

Use pneumatic actuation when the valve needs frequent on-off cycling, remote control, automatic sequencing, repeatable timing, or defined fail-safe behavior and the site has reliable compressed air. Do not default to pneumatic actuation if the air supply is unstable, contaminated, unavailable at the valve location, or unable to support the required failure behavior.

When should I use electric actuation?

Use electric actuation when the project requires electrical control, powered remote operation, position feedback, or modulation and the site can support the required power, voltage, control signal, wiring, and enclosure conditions. Electric actuation is also worth reviewing when compressed air is not available or not preferred, but it should not be selected before command type, feedback, and power-loss behavior are confirmed.

What fail-safe information is needed before selecting pneumatic actuation?

Before selecting pneumatic actuation, define the required valve position during loss of air, loss of signal, normal shutdown, and emergency condition. Also confirm whether the actuator should be normally closed, normally open, spring-return, or double-acting. These choices should be based on process safety and operating logic, not on actuator default assumptions.

Is an electric diaphragm valve the same as an electric diaphragm pump?

No. An electric diaphragm valve controls or isolates flow in a pipeline. An electric diaphragm pump moves fluid by pumping action. They are different products with different selection criteria. This article is about diaphragm valves, not diaphragm pumps.

What information should be sent before selecting diaphragm valve actuation?

Send the medium, pressure, temperature, valve size, flow requirement, operation frequency, available air supply, available power or voltage, control signal, fail-safe position, end connection, body material, diaphragm material, lining requirement, installation environment, and maintenance access requirements. Complete data helps the supplier eliminate unsuitable actuation options early instead of discovering air, power, material, or fail-safe conflicts after several RFQ revisions.

Final Fit Check: Review Actuation with the Valve Body, Diaphragm and Service Data

Actuation selection is not only a question of manual, pneumatic, or electric operation. It is part of the complete diaphragm valve specification.

Before finalizing a diaphragm valve RFQ, confirm:

• whether the valve is used for isolation or control;
• how often it operates;
• whether the valve must be operated locally or remotely;
• whether air supply or power supply is available;
• what happens during loss of air, power, or signal;
• whether feedback or position indication is required;
• whether the diaphragm and body materials match the medium;
• whether the valve body design matches the flow path and service;
• whether maintenance access is acceptable.

If the actuation method is selected without these checks, the valve may still be mechanically available but unsuitable for the application.

For project selection, provide operation frequency, available air or power supply, control signal, fail-safe position, medium, pressure, temperature, and diaphragm / body material requirements. NTGD Diaphragm Valve can review these conditions and help confirm whether manual, pneumatic, or electric actuation is the better fit before the specification is finalized.
