Quick Answer: Sanitary vs Industrial Diaphragm Valves
Sanitary and industrial diaphragm valves are both diaphragm valves, but they are usually selected for different controlling requirements.
A sanitary diaphragm valve or hygienic diaphragm valve is selected when cleanability, contamination control, internal surface condition, drainability, cleaning method and documentation are critical. These valves are commonly considered for food and beverage, dairy, brewery, pharmaceutical, biotech and other high-cleanliness process systems.
An industrial diaphragm valve is selected when the controlling requirement is chemical compatibility, corrosion resistance, abrasion resistance, slurry handling, wastewater service, pressure and temperature conditions, or lining / body material suitability. These valves are common in chemical processing, water treatment, wastewater, mining-related service, slurry lines and corrosive media handling.
The main selection rule is simple:
| If the project is controlled mainly by… | Start your review with… |
|---|---|
| Cleanability, product contact, contamination risk, CIP/SIP, surface finish and documentation | Sanitary / hygienic diaphragm valve |
| Corrosive media, abrasive solids, slurry, wastewater, chemical compatibility, lining and rugged service | Industrial diaphragm valve |
| Both cleanliness and aggressive media | Do not choose by name alone; confirm media, cleaning method, material, diaphragm and documentation requirements |
When cleanability is the controlling factor, the sanitary or hygienic direction helps reduce product residue, contamination and documentation risk. When media severity is the controlling factor, the industrial direction helps reduce premature failure caused by corrosion, abrasion, slurry wear, lining mismatch or diaphragm incompatibility.
If both risks exist in the same project, the valve should be reviewed by service data first. A short product name is not enough to confirm the correct diaphragm valve.
This article does not compare all sanitary valves with all industrial valves. It focuses only on sanitary vs industrial diaphragm valves and how buyers should separate cleanability-driven requirements from service-condition-driven requirements before preparing an RFQ.
For broader parent-topic context before comparing sanitary and industrial service requirements, see the diaphragm valve selection background page.
What Do Sanitary, Hygienic and Industrial Mean in Diaphragm Valves?
Sanitary and hygienic diaphragm valves
In many purchasing and engineering discussions, sanitary diaphragm valve and hygienic diaphragm valve are used in similar contexts. Both usually refer to diaphragm valves intended for process lines where product contact, cleaning, residue control and contamination prevention matter.
“Sanitary” is often used in food, beverage and dairy contexts, while “hygienic” is often used in high-cleanliness, pharmaceutical or biopharma contexts. However, the final requirement must come from the project specification, not from the wording alone.
The key idea is not only that the valve is made from stainless steel. A sanitary diaphragm valve should be treated as a set of cleanability, drainage, wetted-part, diaphragm and documentation requirements, not only as a stainless-steel product name.
A sanitary or hygienic diaphragm valve is normally reviewed by looking at the full wetted path:
- body material and wetted parts;
- diaphragm material;
- internal geometry;
- surface finish or internal finish requirement;
- crevice and dead-leg risk;
- drainability;
- clamp or weld connection;
- CIP / SIP cleaning expectation;
- documentation and traceability required by the project.
For example, a food, beverage or pharmaceutical buyer may not only ask whether the valve can shut off the line. They may also ask whether the valve can be cleaned, drained, inspected and documented in a way that fits the process requirement.
For product-level sanitary construction, size and material details, refer to the sanitary diaphragm valve page instead of expanding this comparison article into a product page.
Industrial diaphragm valves
An industrial diaphragm valve is usually selected around process severity and mechanical service conditions. Instead of starting with surface finish and cleanability, the review often starts with:
- media type;
- chemical concentration;
- corrosive or toxic fluid;
- suspended solids;
- slurry or sludge;
- abrasive particles;
- pressure and temperature;
- body material;
- lining material;
- diaphragm material;
- end connection;
- manual, pneumatic or electric operation.
Industrial diaphragm valves may use lined, rubber lined, plastic lined, unlined or other body configurations depending on the medium. They can be selected for corrosive chemical lines, wastewater, slurry service or abrasive industrial processes.
Why this is not a generic sanitary valve comparison
The difference between sanitary and industrial valves can be discussed broadly, but diaphragm valves have their own structure and selection logic. A diaphragm valve isolates the process media from the operating mechanism through a flexible diaphragm. The body geometry, diaphragm-to-body interface and wetted path all influence whether the valve is suitable for cleanability-driven or service-severity-driven selection.
For this reason, the comparison should not be reduced to “sanitary means clean and industrial means dirty.” Some industrial diaphragm valves may also be used in high-purity or controlled applications. At the same time, a valve that works well in an industrial chemical line may not automatically meet a sanitary process requirement. The correct choice depends on the actual service data.

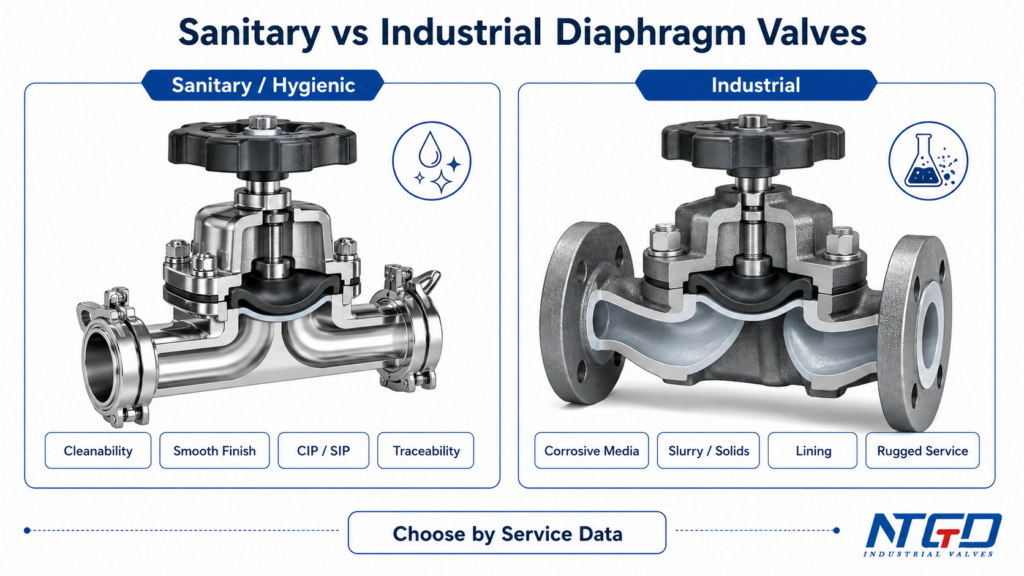

Sanitary vs Industrial Diaphragm Valves: Core Difference Table
The following table gives a practical first comparison. It should not replace a project datasheet, but it helps buyers frame the right RFQ questions.
Before using the table, identify the controlling risk first. If the main risk is residue, contamination, cleaning or documentation, start from the sanitary / hygienic side. If the main risk is corrosion, solids, abrasion, slurry or lining wear, start from the industrial side. Then use the RFQ checklist later in this article to confirm the required data.
| Comparison point | Sanitary / hygienic diaphragm valve | Industrial diaphragm valve | RFQ review point |
|---|---|---|---|
| Primary goal | Cleanability, product protection, contamination control | Chemical resistance, abrasion resistance, slurry or corrosive service | What is the controlling risk: cleanliness or service severity? |
| Typical services | Food, beverage, dairy, brewery, pharmaceutical, biotech, sterile or high-cleanliness process lines | Chemical, wastewater, slurry, corrosive media, abrasive service, industrial process lines | Confirm actual medium and process requirement |
| Body material focus | Body material is driven by product-contact, cleanability, internal finish and documentation; 316L stainless steel is a common starting point but still must be confirmed | Body material is driven by chemical compatibility, wear resistance, lining need, solids and process severity; unlined, lined, rubber lined, plastic lined or alloy options may be reviewed | Confirm wetted body, lining and project material requirement |
| Internal finish | Smooth internal finish and surface finish are important | Finish may be less critical than lining and compatibility, unless high-purity service requires it | State internal finish or surface requirement if needed |
| Geometry concern | Crevice risk, dead-leg risk and drainability matter | Flow passage, solids, lining wear and chemical attack often matter more | Confirm solids, viscosity and drainage requirement |
| Diaphragm material | PTFE, EPDM or other hygienic / process-suitable material depending on product, cleaning and temperature | PTFE, EPDM, rubber or other material depending on chemical, temperature and abrasion conditions | Confirm media compatibility, temperature and cleaning agents |
| Connections | Clamp / tri-clamp and weld ends are common in sanitary systems | Flanged, threaded, union or other industrial piping connections may be used | Confirm piping standard and connection type |
| Cleaning method | Often reviewed for CIP / SIP or clean-in-place expectations | May require flushing, manual maintenance or service-specific cleaning | State cleaning method and cleaning media |
| Documentation | Traceability, material documents and process documentation may be important | Datasheet, pressure test, material / lining information and service compatibility may be important | List required certificates and documents |
| Selection risk | Using a sanitary valve in severe abrasive slurry may shorten diaphragm, body or lining life if solids and wear are not checked | Using an industrial valve in a direct product-contact sanitary line may create cleanability, residue, documentation or compliance risk | Do not select by valve name alone |
The table shows why the right choice is usually not “sanitary is better” or “industrial is stronger.” Each type solves a different problem. A sanitary diaphragm valve is not automatically the best choice for abrasive slurry. An industrial lined diaphragm valve is not automatically acceptable for a high-cleanliness product-contact line.
Cleanability, Dead-Leg Risk and Drainability
Why sanitary diaphragm valves focus on cleanability
In sanitary and hygienic service, the valve must do more than open, close or throttle. It must also support a process where product residue, microbial growth, cross-contamination or cleaning failure can create quality problems.
A sanitary diaphragm valve is often reviewed by asking questions such as:
- Can the wetted path be cleaned effectively?
- Are there crevices where product can remain?
- Does the internal geometry create dead-leg risk?
- Can the valve body drain properly in the installed orientation?
- Is the internal finish suitable for the process?
- Can the diaphragm material handle the product and cleaning cycle?
- Are CIP or SIP conditions part of the process?
- What documentation is required for material and traceability?
These questions are central to sanitary selection. They are not secondary details.
Dead legs, crevices and trapped product risk
A dead leg is an area where fluid can remain stagnant or where cleaning flow may not reach effectively. Crevices are small gaps or pockets where product residue can be trapped. In sanitary applications, these areas can become a cleaning risk.
For diaphragm valves, the body design, weir or flow path, diaphragm-to-body sealing area, connection style and installation orientation can all affect this risk. A valve that appears similar from the outside may behave differently once it is installed in a process line.
This is why a buyer should not judge a sanitary diaphragm valve only from the outside appearance or handwheel type. The internal wetted geometry matters. For a true sanitary line, an un-drainable or un-cleanable pocket is not a small detail; it can be a reason to reject a valve design even when the body material and pressure rating look acceptable.
If the internal flow path, shut-off interface or diaphragm boundary is unclear, a diaphragm valve diagram can help confirm what is wetted, isolated and sealed before RFQ review.

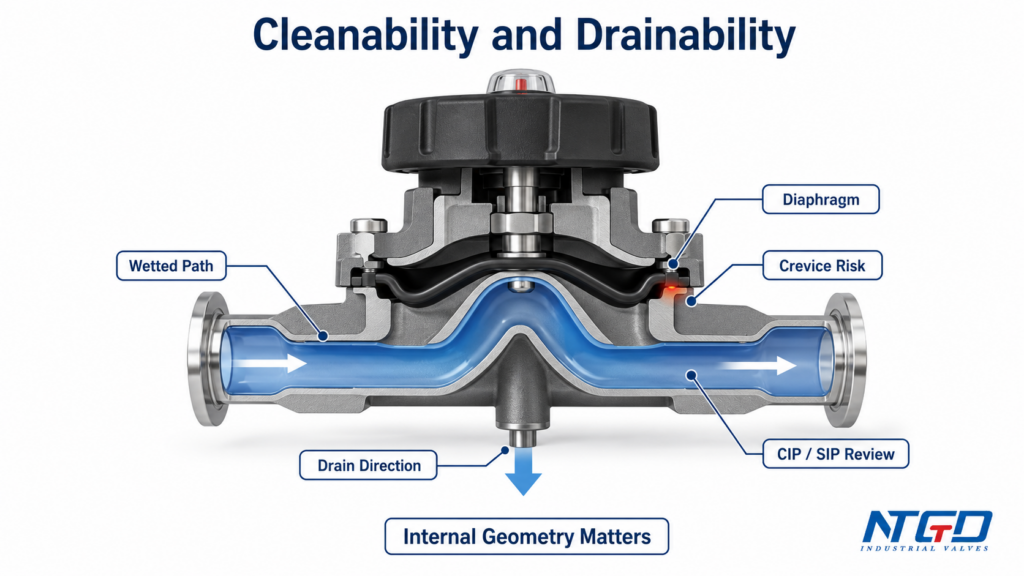

Drainability, internal finish and surface finish
Drainability is especially important when the line must be emptied, cleaned or sterilized. A valve that holds product in the body after operation may create cleaning or contamination concerns. The required drainability depends on the process, installation angle, piping layout and project standard.
Surface finish and internal finish are also important in sanitary / hygienic review. A smoother wetted surface can help reduce product adhesion and cleaning difficulty, but the exact finish requirement should be confirmed by the project specification. It should not be assumed from the word “sanitary” alone.
For external technical context on hygienic diaphragm valve drainability, internal finish and cleanability, see this sanitary diaphragm valve cleanability and drainability guidance.

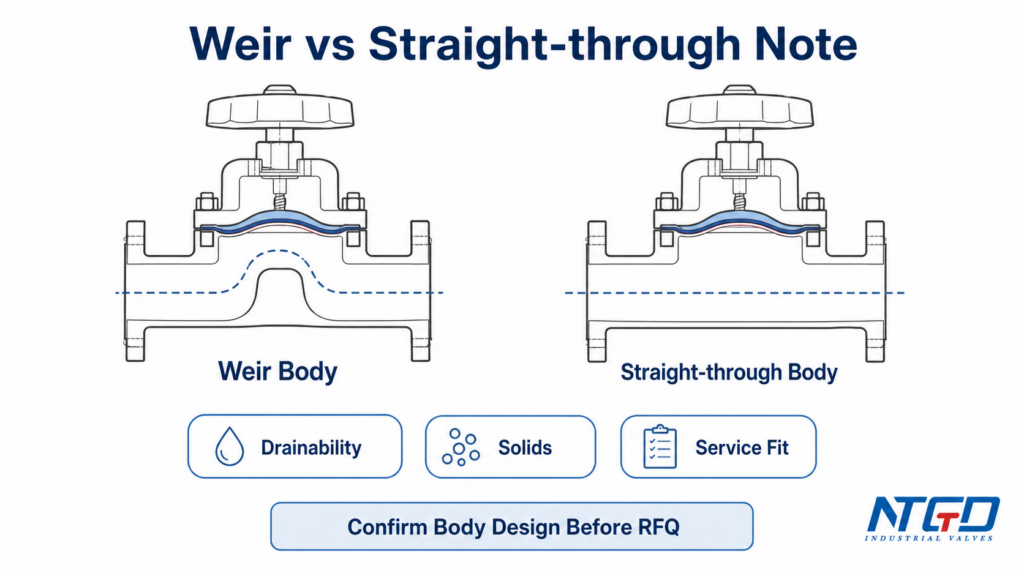

Weir-style sanitary diaphragm valve designs are often reviewed for cleanability and drainability. Straight-through designs may need stricter review before being used in high-cleanliness product-contact lines, especially when the process requires predictable drainage and cleaning performance.
For a deeper body-design comparison, use the weir type vs straight-through diaphragm valve selection guide to check how the raised weir or open flow path affects drainability, solids handling and diaphragm movement.
For RFQ, buyers should specify:
- whether a sanitary or hygienic finish is required;
- whether electropolishing or special finishing is required;
- whether drainability is critical;
- whether installation orientation affects cleaning;
- whether the process has CIP / SIP requirements;
- whether material documentation or traceability is required.
CIP / SIP suitability and cleaning expectations
CIP and SIP are often discussed with sanitary diaphragm valves because the valve may need to support cleaning or sterilization without being fully removed from the line. However, the words CIP and SIP should not be used casually.
For valve selection, the important questions are:
- What cleaning fluid or steam condition will contact the valve?
- What temperature and time cycle are expected?
- Is the diaphragm material compatible with the product and cleaning media?
- Does the valve design support the required cleaning flow?
- Are there documentation or validation requirements?
A sanitary diaphragm valve may be suitable for clean-in-place or sterilization-in-place conditions only when the valve design, material, diaphragm, connection, installation and process conditions all match the requirement. Assuming CIP/SIP suitability without checking internal geometry, diaphragm grade, connection type and the actual cleaning cycle can leave residue or contamination risks that are difficult to detect without inspection.

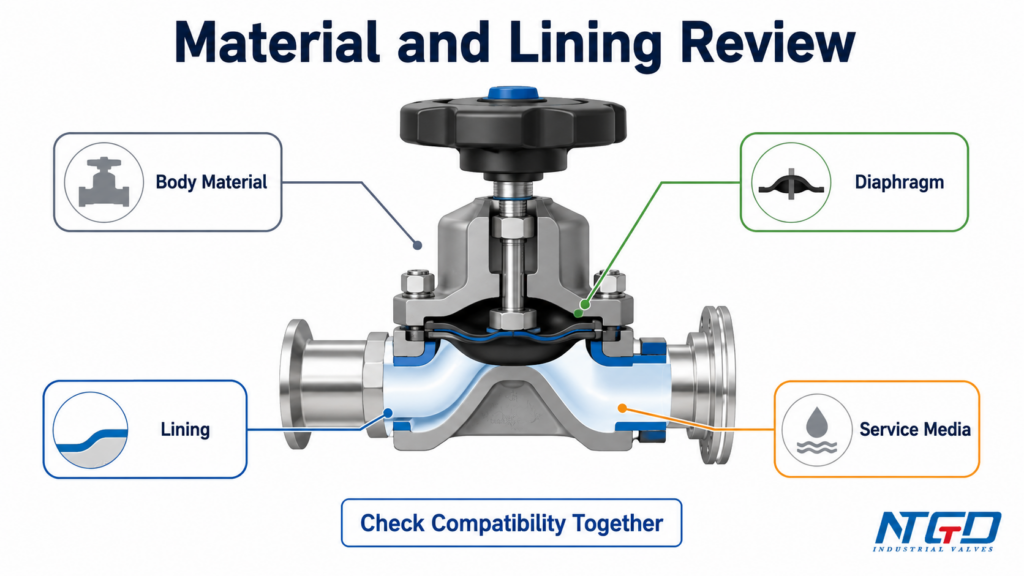

Materials, Diaphragm and Lining Differences
Material selection is one of the most important differences between sanitary and industrial diaphragm valves. In both cases, the valve must be compatible with the medium. The difference is where the selection starts.
Sanitary side: 316L, PTFE / EPDM and wetted parts
Sanitary diaphragm valves often use stainless steel wetted bodies, with 316L stainless steel commonly discussed in food, beverage, pharmaceutical and biotech service. However, material should always be confirmed by project specification.
For sanitary service, the diaphragm material is often one of the first items to check because it contacts the product and may also be exposed to cleaning fluids, steam or repeated cycles. Body material and surface finish should be reviewed together with diaphragm material, gasket material and documentation requirements.
The diaphragm material must not be selected by name only. PTFE and EPDM are common examples, but both should be checked against:
For internal material routing, review the diaphragm material page as a starting point, then confirm final compatibility against the actual media, cleaning cycle and project specification.
- product media;
- cleaning fluid;
- sterilization condition, if any;
- temperature;
- pressure;
- cycle frequency;
- required documentation;
- product-contact requirements.
For diaphragm material review, this diaphragm material compatibility reference separates EPDM, FKM and PTFE behavior by media, temperature and sterilization conditions.
For example, a diaphragm material that performs well with one beverage product may not automatically be suitable for an acidic product, an oxidizing cleaning chemical or a higher-temperature cleaning cycle. The sanitary review should check the product and cleaning conditions together.
Industrial side: lined, rubber lined and plastic lined diaphragm valves
Industrial diaphragm valves often place more emphasis on body and lining compatibility. In corrosive, abrasive or slurry service, the body material alone may not be enough. A lined diaphragm valve, rubber lined diaphragm valve or plastic lined diaphragm valve may be considered depending on the medium and service condition.
As an initial review direction, a rubber lined diaphragm valve may be considered for abrasive slurry or particle-impact service where wear resistance is important. A plastic lined diaphragm valve may be reviewed for corrosive acid or alkali service where a metallic wetted surface may not be suitable. These are not automatic choices; they are starting points for service-data review.
For an industrial material bridge, the rubber diaphragm valve page gives additional context on rubber-lined construction, slurry service and industrial media handling.
For severe industrial service, this industrial lined diaphragm valve guide provides external context on lined diaphragm valves for corrosive media, abrasion and solids-handling applications.
Industrial material review usually includes:
- corrosive media;
- acids or alkalis;
- solids content;
- abrasive particles;
- slurry concentration;
- wastewater composition;
- temperature;
- pressure;
- possible lining wear;
- diaphragm compatibility;
- maintenance interval.
This is why industrial diaphragm valves are often service-condition-driven. The correct valve may depend more on media chemistry, solids and wear pattern than on a generic product name.
Corrosive media, abrasive service and slurry service
Corrosive media can attack the valve body, diaphragm or lining. Abrasive service can wear the wetted path, especially when solids are present. Slurry service may require attention to passage design, pressure drop, clogging risk, diaphragm movement and lining durability.
Before selecting an industrial diaphragm valve, buyers should define:
| Media condition | Why it matters | RFQ note |
|---|---|---|
| Corrosive liquid | Affects body, lining and diaphragm compatibility | Provide chemical name, concentration and temperature |
| Abrasive particles | Affects lining wear and valve life | Provide particle type, size and solids percentage if available |
| Slurry or sludge | Affects flow passage, clogging and actuation force | Provide viscosity, solids and process duty |
| Wastewater | May include solids, chemicals or variable media | Provide operating condition and cleaning method |
| Acidic or alkaline service | Affects diaphragm and lining selection | Provide pH, concentration and temperature |
| Frequent cycling | Affects diaphragm fatigue and actuator selection | Provide operation frequency and required control type |
Lining and diaphragm material must be checked together with solids, viscosity and cycle frequency. Even if the body material appears correct, the wrong lining or diaphragm can still lead to premature wear, leakage or diaphragm failure.
Why material compatibility must be confirmed by service data
A diaphragm valve is not selected correctly until the wetted materials are checked against the actual service. This applies to both sanitary and industrial valves.
For sanitary service, compatibility includes product media, cleaning solution, temperature and documentation. For industrial service, compatibility includes process media, chemical concentration, solids, abrasion, lining, diaphragm and operating condition.

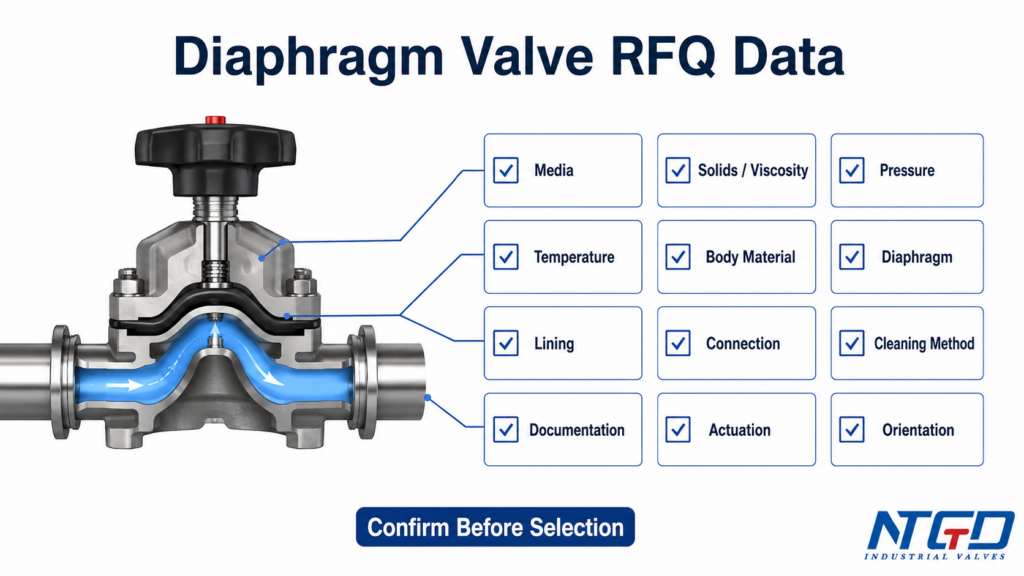

A safe RFQ should not simply say “sanitary diaphragm valve” or “industrial diaphragm valve.” It should provide the service data that allows the supplier or engineer to check the body, diaphragm, lining and connection together.
Connection and Cleaning Method Differences
Connection type affects installation, cleaning, maintenance and project compatibility. It can also signal whether the valve is being used in a sanitary process line or an industrial piping system.
Clamp / tri-clamp and weld end sanitary connections
Clamp or tri-clamp connections are common in sanitary process systems because they can support hygienic assembly and disassembly when used with the correct gasket, ferrule and process design. Weld ends may also be used where a permanent hygienic piping connection is required.
However, clamp connection alone does not make a valve sanitary. Buyers still need to check the valve body, wetted material, internal finish, diaphragm material, gasket material, cleaning method and documentation.
Flanged, threaded and industrial piping connections
Industrial diaphragm valves may use flanged, threaded, union or other piping connections depending on size, pressure, maintenance access and plant standard. Flanged ends are common in many industrial piping systems because they support installation and removal in larger or more rugged services.
Threaded connections may appear in smaller systems, but they should be reviewed carefully for the process, pressure and cleaning requirement. For sanitary service, threaded areas can become a cleaning concern if they are part of the wetted or product-contact path.
How connection type affects cleaning, installation and RFQ data
| Connection type | Common context | Cleaning / maintenance implication | RFQ note |
|---|---|---|---|
| Clamp / tri-clamp | Sanitary and hygienic process lines | Can support sanitary assembly when used with correct components and design | State clamp size, gasket requirement and cleaning method |
| Weld end | Sanitary or process piping | Can reduce removable joints but requires proper fabrication and inspection | State weld standard, material and finish requirement |
| Flanged end | Industrial piping, chemical, wastewater, slurry | Supports removal and maintenance in industrial systems, but flange gasket areas and crevice interfaces require careful review before any product-contact hygienic use | State flange standard, pressure class and gasket requirement |
| Threaded end | Smaller industrial or utility systems | May be unsuitable for hygienic wetted areas depending on process | Confirm whether threads contact process media |
| Union or special connection | Process-specific systems | Depends on design and service requirement | Provide project piping standard |
Connection should be selected together with cleaning method. A sanitary project may prioritize cleanability and hygienic assembly. An industrial project may prioritize pressure rating, maintenance access, piping standard and compatibility with existing plant equipment.

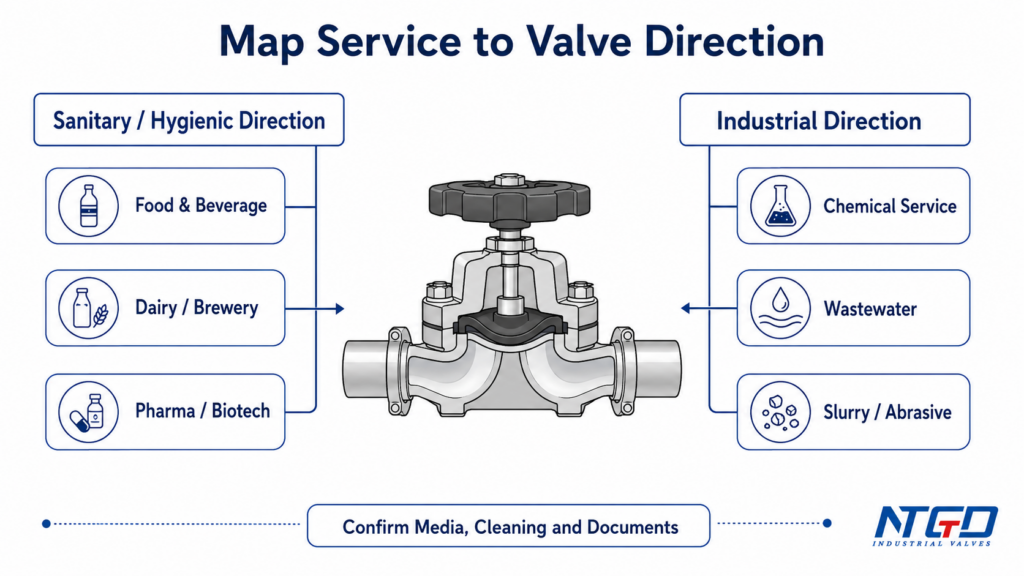

Application Mapping: Food, Pharma, Chemical, Wastewater and Slurry
A useful way to choose between sanitary and industrial diaphragm valves is to begin with the service environment. The following table maps common applications to the typical review direction.
| Application / service | Likely starting direction | Main reason | Confirmation data needed |
|---|---|---|---|
| Food and beverage product-contact line | Sanitary / hygienic diaphragm valve | Cleanability, residue control, product safety | Product media, cleaning method, finish, connection, documentation |
| Dairy process line | Sanitary / hygienic diaphragm valve | Cleanability and frequent cleaning cycles | Product, temperature, CIP/SIP, elastomer compatibility |
| Brewery process line | Sanitary / hygienic diaphragm valve, depending on duty | Cleaning, product contact and batch process requirements | Media, cleaning fluid, temperature, connection type |
| Pharmaceutical process | Sanitary / hygienic or aseptic review | High cleanliness, documentation and traceability expectations | Product, validation need, material documents, finish, cleaning |
| Biotech process | Sanitary / hygienic or high-purity review | Product sensitivity and contamination control | Media, temperature, cleaning, diaphragm material, documents |
| Chemical dosing | Industrial or sanitary depending on media and process | Chemical compatibility and dosing control | Chemical name, concentration, pressure, temperature, cycle rate |
| Corrosive chemical service | Industrial diaphragm valve | Body / lining / diaphragm compatibility | Chemical concentration, temperature, pressure, lining requirement |
| Wastewater service | Industrial diaphragm valve | Solids, variable media and rugged service | Solids, sludge, pressure, maintenance conditions |
| Slurry service | Industrial diaphragm valve | Solids, abrasion and flow passage concerns | Solids percentage, particle type, viscosity, abrasion risk |
| High-purity industrial system | Case-by-case | May require both cleanliness and industrial compatibility | Finish, material, documents, pressure, temperature, medium |
High-purity industrial overlap: why industrial does not always mean “dirty”
A common selection error is to assume that every industrial diaphragm valve is a rough-service valve, or that every high-cleanliness industrial line must use a fully sanitary product-contact design. Some industrial systems may also have high-purity, controlled media or special documentation requirements.
Some high-purity industrial utilities or controlled process lines may need improved finish, low-entrapment geometry and documentation, while still being selected from an industrial diaphragm valve configuration based on pressure, media and connection data.
At the same time, high-purity does not automatically mean sanitary. The project should define the required cleanliness level, wetted materials, surface finish, connection type, pressure, temperature, testing and documentation. The valve name alone is not enough.
When to Choose Sanitary vs Industrial Diaphragm Valves
Choose sanitary / hygienic when cleanability is the controlling requirement
Start with a sanitary or hygienic diaphragm valve review when the project requires:
- product-contact service;
- clean-in-place or sterilization review;
- smooth wetted surfaces;
- reduced crevice and trapped product risk;
- drainability;
- sanitary clamp or weld connection;
- material traceability;
- documentation for high-cleanliness process lines;
- food, beverage, dairy, pharmaceutical or biotech suitability.
In these cases, the question is not only whether the valve can resist the fluid. The question is whether the valve can support the required process hygiene and documentation.
Choose industrial when media severity is the controlling requirement
Start with an industrial diaphragm valve review when the project is controlled by:
- corrosive chemicals;
- abrasive particles;
- slurry;
- wastewater;
- sludge;
- acids or alkalis;
- industrial process fluids;
- lining requirement;
- pressure and temperature conditions;
- plant piping standard;
- rugged maintenance conditions.
In these cases, cleanability may still matter, but chemical compatibility, lining selection, diaphragm life and mechanical service condition usually drive the first selection.
Cases that require engineering confirmation before selection
Some applications cannot be classified by a simple sanitary-vs-industrial label. They need engineering review before selection.
| Case | Why it needs confirmation | Preliminary selection direction | What to check |
|---|---|---|---|
| Acidic food product | It is both product-contact and chemically aggressive | Requires combined sanitary + material review | Product pH, concentration, temperature, cleaning fluid, diaphragm material |
| Chemical dosing in a clean process | It may require accurate dosing and cleanability | Project-specific confirmation | Chemical compatibility, wetted material, cycle rate, connection, documentation |
| Biotech utility line | It may be high-purity but not the same as product-contact sanitary service | Often high-purity / controlled-service review | Finish, documents, pressure, medium, cleaning method |
| Slurry with cleaning requirement | It combines solids handling and cleaning concerns | Requires combined industrial + cleaning review | Solids, drainability, body style, lining, cleaning process |
| Pharmaceutical support line | Documentation and material traceability may matter even outside main product contact | Project-specific confirmation | Required certificates, contact status, cleaning method |
The preliminary direction is only a starting point. The final valve specification should still be checked against actual media, cleaning, pressure, temperature, diaphragm and documentation requirements.
Common wrong-choice risks
| Wrong choice | Potential risk | How to prevent it |
|---|---|---|
| Selecting an industrial valve for a sanitary product-contact line | Cleaning, residue, finish or documentation may not meet the process need | Confirm cleanability, finish, drainability, connection and documents |
| Selecting a sanitary valve for abrasive slurry | Diaphragm, body or wetted path may not handle abrasion | Confirm solids, viscosity, particle type and lining options |
| Selecting by stainless steel only | Stainless steel alone does not define sanitary suitability | Check internal finish, diaphragm, gasket, connection and cleaning |
| Selecting by lining only | Lining alone does not solve cleanability or documentation needs | Check service type and process requirement |
| Ignoring cleaning chemicals | The diaphragm may swell, harden or degrade prematurely after repeated cleaning cycles, even if it appears compatible with the process fluid | Check product and cleaning solution together |
| Ignoring operation frequency | Diaphragm life and actuator selection may be affected | Provide cycle frequency and operation mode |
Most wrong choices come from reviewing only one side of the requirement. Use the RFQ checklist to evaluate cleanability risk and media severity risk together before final selection.
Documentation and RFQ Checklist
Documentation and traceability expectations
Documentation requirements can differ significantly between sanitary and industrial diaphragm valve projects.
For sanitary or hygienic projects, documentation may include material traceability, wetted material records, diaphragm material information, surface finish confirmation, cleaning or process-related documentation, and project-specific certificates. The exact package depends on the buyer’s industry, project standard and validation requirement.
As an external documentation example, Alfa Laval describes a hygienic diaphragm valve documentation package that supports sourcing, production, supply-chain and material-change traceability in ultra-hygienic service; see this hygienic diaphragm valve documentation and traceability example.
For industrial projects, documentation may focus more on material, lining, pressure testing, datasheet review, compatibility information, dimensional information and operation type. A chemical or slurry project may require different evidence from a food or pharmaceutical project.
Documentation should be stated clearly in the RFQ. It should not be assumed.
RFQ data for sanitary / hygienic diaphragm valves
For sanitary or hygienic diaphragm valve review, prepare:
| RFQ item | Why it matters |
|---|---|
| Product media | Defines product-contact requirement and material compatibility |
| Cleaning method | Determines CIP / SIP, cleaning fluid and temperature exposure |
| Required finish | Supports cleanability and project documentation |
| Body material | Confirms wetted body suitability |
| Diaphragm material | Must suit product, cleaning media and temperature |
| Connection type | Clamp, weld or other sanitary piping requirement |
| Drainability requirement | Affects body design and installation review |
| Documentation requirement | Defines traceability and inspection package |
| Operation type | Manual, pneumatic or electric actuation |
| Process temperature and pressure | Required for body and diaphragm selection |
RFQ data for industrial diaphragm valves
For industrial diaphragm valve review, prepare:
| RFQ item | Why it matters |
|---|---|
| Medium name and concentration | Determines chemical compatibility |
| Solids content | Affects slurry, abrasion and clogging risk |
| Particle type and size | Helps evaluate abrasion and flow passage |
| Viscosity | Affects flow and actuation requirement |
| Pressure and temperature | Defines rating and material suitability |
| Body material or lining preference | Important for corrosive / abrasive service |
| Diaphragm material | Must match media and temperature |
| End connection | Flanged, threaded, union or other plant standard |
| Operation mode | Manual, pneumatic or electric |
| Maintenance access | Affects installation and serviceability |
| Required documents | Datasheet, test records, material or lining information |
Minimum data buyers should send before quotation
Before choosing between sanitary and industrial diaphragm valves, buyers should prepare at least the following:
| Data field | Sanitary / hygienic relevance | Industrial relevance |
|---|---|---|
| Media | Product-contact and compatibility | Chemical, slurry or wastewater compatibility |
| Solids / viscosity | May affect cleaning and flow | Critical for slurry / abrasive service |
| Pressure | Required for rating | Required for rating |
| Temperature | Product and cleaning exposure | Process and material compatibility |
| Body material | Wetted part suitability | Corrosion and mechanical suitability |
| Diaphragm material | Product and cleaning compatibility | Chemical and abrasion compatibility |
| Lining | Usually less central unless project-specific | Often important for corrosive / abrasive media |
| Connection | Clamp / weld / sanitary piping | Flanged / threaded / plant piping standard |
| Cleaning method | CIP / SIP / washdown expectation | Flushing or maintenance method |
| Documentation | Traceability, finish, material records | Datasheet, test, material and lining records |
| Actuation | Manual / pneumatic / electric | Manual / pneumatic / electric |
| Installation orientation | Drainability and cleaning | Maintenance and flow direction review |
A clear RFQ allows the supplier or engineer to evaluate the valve as a complete assembly instead of guessing from a short product name. Complete service data also allows the engineer to check cleanability risk and media severity risk at the same time, reducing specification mistakes caused by selecting a valve only by its name.
FAQ
Is a hygienic diaphragm valve the same as a sanitary diaphragm valve?
In many valve discussions, “hygienic diaphragm valve” and “sanitary diaphragm valve” are used in similar ways. Both usually refer to diaphragm valves for clean process environments where product contact, cleanability, internal finish and documentation may matter.
The terms are not always identical in every project. Some food and beverage specifications may use “sanitary,” while pharmaceutical or biopharma projects may use “hygienic” or “aseptic” wording. Buyers should confirm the project requirement, wetted material, surface finish, connection, cleaning method and documentation package instead of assuming both terms always mean the same specification.
Can an industrial diaphragm valve be used in food or pharmaceutical service?
For a direct product-contact core process line, an ordinary industrial diaphragm valve is usually not the starting choice unless its wetted design, finish, diaphragm, connection, cleaning method and documentation meet the sanitary or hygienic requirement.
For a non-contact utility, waste, support or controlled industrial line, an industrial diaphragm valve may be evaluated if the material, finish, cleaning exposure and documents match the project. The first question is not only “food or pharmaceutical,” but whether the valve is product-contact, clean-in-place, high-purity, utility, waste or non-contact service.
Does surface finish matter for sanitary diaphragm valves?
Yes. Surface finish and internal finish can affect cleanability, product retention and contamination risk. For sanitary or hygienic service, the required finish should be stated in the RFQ or project specification.
Buyers should not only write “stainless steel diaphragm valve.” They should specify whether an internal finish or surface finish requirement applies, whether electropolishing is needed, and whether the finish must be documented.
Are clamp connections required for sanitary diaphragm valves?
Clamp or tri-clamp connections are common in sanitary systems, but they are not the only possible connection. Weld ends may also be used in sanitary piping.
Clamp connection alone does not define the valve as sanitary. The gasket, ferrule, wetted geometry, diaphragm material, internal finish, drainability and cleaning method must be checked together. A clamp end on a poorly matched valve body will not solve a cleanability problem.
Which diaphragm material is suitable for sour or acidic product handling?
The starting point is to define the acid type, concentration, whether the medium is oxidizing or reducing, operating temperature, cleaning media, contact time and cycle frequency. These factors narrow the possible diaphragm material family before a final selection is made.
PTFE is often reviewed because of its broad chemical resistance, while EPDM and other elastomers may be reviewed for different process needs. However, no diaphragm material should be selected from the material name alone. It must be checked against the product media, cleaning media, temperature and required cycle life.
How should buyers compare diaphragm valves for chemical dosing?
For chemical dosing, compare the chemical name, concentration, pressure, temperature, cycle frequency, required control accuracy, diaphragm material, body or lining material and connection type.
If the chemical dosing point is part of a clean process, also check cleanability, product-contact status, documentation and whether residue after dosing or cleaning is acceptable. Chemical compatibility and sanitary cleanability may both be controlling requirements.
Are dairy and brewery diaphragm valve requirements the same?
They can overlap, but they are not automatically the same. Both may involve sanitary processing, cleaning cycles and product-contact requirements, but the actual media, cleaning agents, temperature, batch process, documentation and connection requirements may differ.
A dairy line may have different cleaning temperature, product residue and documentation expectations than a brewery line. Buyers should define the service data for each project rather than assuming one sanitary diaphragm valve specification fits both.
What RFQ data should be checked before choosing sanitary or industrial diaphragm valves?
At minimum, check media, solids or viscosity, pressure, temperature, body material, diaphragm material, lining need, connection type, actuation method, cleaning method, documentation requirement and installation condition.
If the project is sanitary or hygienic, add surface finish, drainability and traceability requirements. If the project is industrial, add chemical concentration, abrasion risk, slurry data and lining requirement.
Conclusion
Sanitary and industrial diaphragm valves are not separated only by appearance or by the word used in the product name. They are separated by the project requirement that controls the valve selection.
A sanitary or hygienic diaphragm valve is usually selected when cleanability, product protection, internal finish, drainability, CIP/SIP and documentation are central to the process. An industrial diaphragm valve is usually selected when corrosion, abrasion, slurry, wastewater, lining, pressure, temperature and rugged service are more important.
The best selection starts with service data. Before choosing the valve type, confirm the media, cleaning method, diaphragm material, body or lining material, connection, pressure, temperature, actuation and documentation requirement. This prevents the common mistake of using a cleanability-driven valve in a severe industrial service or using a rugged industrial valve in a process where sanitary requirements control the decision.
Application / Specification Support
The risk of choosing a diaphragm valve by its label instead of by its service data is avoidable. For sanitary vs industrial diaphragm valve selection, NTGD Diaphragm Valve can review the project conditions before quotation.
Send the service media, solids or viscosity, pressure, temperature, body material, diaphragm material, lining requirement, operation method, connection type, cleaning method and required documentation. With these details, the valve can be reviewed as a complete specification against both cleanability and service-severity requirements instead of being selected by name alone.
