Quick Answer: Weir Type vs Straight-Through Diaphragm Valve
The correct choice between a weir type vs straight through diaphragm valve depends on what the process needs most: controlled throttling, low pressure drop, open passage flow, solids handling, drainability, diaphragm material compatibility, or longer diaphragm service life. In most RFQs, this is not just a naming difference. It is a body design decision that affects how the valve performs after installation.
A weir type diaphragm valve uses a raised saddle, or weir, inside the body. The diaphragm closes against this raised sealing area, so the diaphragm travel is usually shorter. A straight-through diaphragm valve uses a straighter, more open passage without the raised weir, so the diaphragm often needs deeper movement to close across the flow path.
As a selection tendency, a weir type design is a stronger starting point when the service requires better throttling behavior, compact sealing action, shorter diaphragm movement, or compatibility with stiffer diaphragm materials such as PTFE or fluoropolymer designs. A straight-through design is a stronger starting point when the service requires lower pressure drop, higher flow capacity, a less obstructed passage for slurry, viscous fluids, suspended solids, pulp, sludge, or other media that may build up around internal obstructions.
Neither design is automatically better. The decision should be made from the medium, solids content, viscosity, pressure drop tolerance, drainability requirement, diaphragm material, lining material, cleaning expectation, operating frequency, and maintenance strategy. A mismatched body design can create excessive pressure loss, solids retention, accelerated diaphragm fatigue, unstable throttling, or higher cleaning and maintenance demand.
Short Difference Summary
| Selection Point | Weir Type Diaphragm Valve | Straight-Through Diaphragm Valve |
|---|---|---|
| Body geometry | Raised weir or saddle in the flow path | Straight or full-bore style flow passage |
| Flow path | More restricted by the raised weir | More open and less obstructed |
| Pressure drop | Higher selection risk when pump head margin is limited | Stronger starting point when low pressure drop is critical |
| Diaphragm travel | Usually shorter | Usually deeper deflection |
| Diaphragm stress | Often lower because of shorter stroke | More dependent on diaphragm flexibility and operating frequency |
| Solids / slurry | Better for cleaner or controlled services where buildup risk is low | Stronger candidate when solids, slurry, pulp or viscous media may accumulate around an obstruction |
| Throttling | Usually stronger fit for controlled restriction | Less ideal for repeatable partial-open control |
| Main selection risk | Flow restriction, retention, buildup or local erosion near the weir | Diaphragm over-flexing, wear or material limitation in severe service |
When the medium contains solids, sludge, fibers, crystallizing components or high-viscosity material, the raised-weir retention tendency may increase cleaning frequency or require specific flushing provisions.
When the Choice Matters in an RFQ
This choice matters when the valve name alone is not enough for specification. In an RFQ, “diaphragm valve” does not define the internal flow path. A buyer should confirm whether the process needs the control behavior of a weir type body or the more open flow passage of a straight-through body.
The decision becomes especially important when the service includes:
- slurry, pulp, powder, fibers or suspended solids;
- viscous liquid;
- low pressure drop requirement;
- chemical or corrosive service;
- PTFE, rubber or fluoropolymer diaphragm selection;
- cleaning, drainability or retention concerns;
- throttling or modulating service;
- frequent diaphragm maintenance or replacement planning.
If the RFQ includes solids, viscosity, low pressure drop, cleaning requirements, PTFE / rubber diaphragm selection, throttling duty or frequent operation, specifying only “diaphragm valve” is not enough. The RFQ should require confirmation of weir type or straight-through body design before final selection.
What These Two Diaphragm Valve Designs Have in Common
Both weir type and straight-through diaphragm valves use a flexible diaphragm to isolate the process medium from the upper valve mechanism. The diaphragm is moved by a handwheel, actuator or other operating mechanism so that it closes against the body sealing area and stops or controls flow.
This shared design gives diaphragm valves an important advantage in many corrosive, abrasive or contamination-sensitive services: the process fluid is mainly in contact with the body lining and diaphragm, not with a conventional stem packing area.
Shared Diaphragm Sealing Principle
In both designs, the diaphragm is the key sealing element. The valve body provides the flow passage. The bonnet and operating mechanism move the diaphragm. The diaphragm presses downward to close the valve and lifts upward to open the flow path.
The difference is where and how the diaphragm seals:
- In a weir type body, the diaphragm seals against a raised saddle.
- In a straight-through body, the diaphragm closes across a more open flow path.
This difference changes stroke, flow resistance, pressure drop, drainability, solids behavior and diaphragm material selection.
Why This Article Only Compares Two Body Designs
This article compares only weir type vs straight-through diaphragm valve body designs. It is not a complete diaphragm valve types guide, a parts guide, an actuator guide, or a product catalog.
Other diaphragm valve topics such as pneumatic actuation, sanitary service, high purity service, lined body materials, full product specifications, installation orientation, or detailed pressure drop calculation should be reviewed separately during product selection or RFQ preparation.
For broader context on other diaphragm valve body styles, use the diaphragm valve types guide as the wider reference, while keeping this article focused only on weir type vs straight-through body selection.
What Is a Weir Type Diaphragm Valve?
A weir type diaphragm valve uses a raised weir, saddle, or dam-like sealing surface inside the valve body. When the valve closes, the diaphragm moves down and seals against this raised area.
Because the diaphragm does not need to travel as far as it does in many straight-through designs, the weir type design often reduces diaphragm flexing. This can support diaphragm life and make the design suitable for some PTFE, fluoropolymer, or lined chemical services, depending on the manufacturer’s valve design and diaphragm construction.
Raised Weir or Saddle Design
The raised weir changes the flow path. Instead of moving through a fully open bore, the fluid must pass over the saddle area when the valve is open. This makes the design useful for sealing and control, but it also adds flow resistance compared with a more open straight-through passage.
The raised weir also affects drainability. In some services, the weir can create a retention area where solids, viscous material or process residue may collect. This does not mean a weir type valve is unsuitable for all dirty media, but it does mean the service condition must be checked carefully.
Main Strengths and Selection Limits
A weir type diaphragm valve is commonly selected when the application requires:
- compact shutoff with relatively short diaphragm movement;
- better throttling or flow control behavior;
- reliable sealing in many chemical services;
- compatibility with certain stiffer diaphragm materials;
- lower diaphragm flexing compared with many straight-through designs.
The same design may be less suitable when the application requires maximum flow capacity, very low pressure drop, or handling of heavy slurry, fibrous media, thick sludge or large suspended solids. In those cases, the raised saddle must be reviewed as a possible retention or local wear point, not only as a sealing surface.
Product Page Handoff for Detailed Specifications
A comparison article can help select the body design, but it should not replace a product specification page. Exact size range, pressure rating, body material, lining material, diaphragm material, end connection and actuation method should be confirmed against the project datasheet and the relevant weir type diaphragm valve product information.
This comparison page only explains the selection impact of the weir body design. Final size range, pressure rating, body material, lining, diaphragm material, end connection and actuation options should be confirmed on the detailed weir type diaphragm valve product page or project datasheet.
For detailed construction, operation and specification review, the weir type diaphragm valve product page should be used as the product-level handoff after this comparison.
What Is a Straight-Through Diaphragm Valve?
A straight-through diaphragm valve uses a straight or more open flow passage without the raised weir used in a weir type design. It is also sometimes described as a straightway or full-bore style diaphragm valve, although exact terminology depends on the manufacturer.
The main purpose of this body design is to reduce internal obstruction and allow the medium to pass through the valve with less flow restriction.
Straight or Full-Bore Flow Passage
In a straight-through design, the open flow path is more direct. This can reduce pressure drop and support higher flow capacity compared with a raised-weir body. It can also make the design more suitable for media that may not pass smoothly over a raised saddle.
Typical examples include slurry, pulps, viscous liquid, wastewater sludge, suspensions, powders in process flow, or media with suspended solids. The exact suitability still depends on valve size, lining, diaphragm material, operating pressure, temperature, velocity and solids characteristics.
Main Strengths and Selection Limits
A straight-through diaphragm valve is commonly selected when the application requires:
- lower pressure drop;
- higher flow capacity;
- a less obstructed flow path;
- better passage for slurry or viscous media;
- reduced buildup risk compared with a raised weir;
- full-flow on-off isolation.
The same design may be less suitable when precise throttling is required, when a stiffer diaphragm material is preferred, or when diaphragm life is more sensitive to deeper diaphragm flexing. The open passage helps reduce obstruction, but it does not remove the need to verify diaphragm construction, lining, abrasion resistance, and operating cycle.
Product Page Handoff for Detailed Specifications
A straight-through design decision is only the first step. Detailed product selection still requires confirmation of body material, liner, diaphragm material, end connection, pressure / temperature rating, operation method and maintenance requirements. Those details should be checked in the straight-through diaphragm valve product page or project RFQ review, not assumed from the body design name alone.
This article uses the straight-through design only as one side of the comparison. Detailed straight-through diaphragm valve specifications, construction options, pressure / temperature limits and actuation choices should remain with the dedicated product or technical page.
For product-level construction details, operation notes and specification review, use the straight-through diaphragm valve product page instead of expanding this comparison article into a full product page.
Core Design Difference: Raised Weir vs Full-Bore Flow Path
The root difference between the two designs is body geometry. A weir type diaphragm valve creates a raised sealing area inside the flow path. A straight-through diaphragm valve removes that raised internal obstruction and gives the medium a more direct passage through the body.
This geometry affects nearly every downstream selection question: pressure drop, flow capacity, solids handling, drainability, diaphragm stroke, diaphragm stress, material compatibility and control behavior.
Body Geometry Comparison
A raised weir helps the diaphragm seal with shorter travel. This can be useful for control and diaphragm life. However, the raised structure also changes the open flow area and may create resistance or retention points.
A straight-through body has a more open passage. This improves flow capacity and can reduce the risk of solids catching on an internal saddle. However, the diaphragm may need more travel to close, which can increase flexing and place higher demand on diaphragm material.
Flow Path and Internal Obstruction
Internal obstruction is not just a drawing detail. It affects how the process medium moves through the valve.
For clean liquid or controlled chemical service, the raised weir may not be a major issue and can support good shutoff and control. For heavy slurry, fibrous media, low-velocity flow or viscous service, the same raised area may become a buildup point.
For processes with moderate solids, limited cleaning cycles or low flow velocity, this internal obstruction difference can shift the selection toward a straight-through design to reduce retention-related maintenance risk.
Comparison Matrix: Weir Type vs Straight-Through
| Comparison Item | Weir Type Diaphragm Valve | Straight-Through Diaphragm Valve | RFQ Note |
|---|---|---|---|
| Body geometry | Raised saddle / weir | Straight or more open passage | State or request confirmation of weir type vs straight-through body design |
| Flow path | Fluid passes over the weir | Fluid passes through a less obstructed bore | Match body geometry to actual media behavior |
| Pressure drop | Generally higher | Generally lower | If pump head margin is limited, request flow / pressure loss data |
| Flow capacity | More limited by raised geometry | Usually higher | Provide required flow rate, pipe size and allowable pressure drop |
| Drainability | May create retention areas | Usually better for open passage flow | Verify cleaning, flushing and drainage requirements |
| Solids handling | Limited for heavy solids | Often better for slurry or suspended solids | Provide solids percentage, particle size and abrasion tendency |
| Diaphragm stroke | Usually shorter | Usually longer or deeper | Confirm operating frequency and diaphragm movement limits |
| Diaphragm stress | Often lower | Often higher | Match diaphragm material to stroke and cycle duty |
| Material compatibility | Often better for stiffer diaphragm materials | Often needs more flexible diaphragm materials | Confirm diaphragm and lining combination, not diaphragm alone |
| Throttling | Usually better | Usually less precise | Confirm whether the valve is used for modulation or isolation |
| On-off service | Suitable | Strong fit for full-flow isolation | Confirm normal operating position and cycling frequency |
| Typical service fit | Clean, corrosive or controlled service | Slurry, viscous, solids-laden or low-drop service | Review actual process conditions before selecting body design |
If the reader needs to identify the sealing line, diaphragm movement path and body passage visually, the diaphragm valve diagram and parts guide provides the supporting structure reference without turning this page into a parts guide.
Pressure Drop, Flow Resistance and Flow Capacity
Pressure drop is one of the most important differences in the weir type vs straight through diaphragm valve decision. The weir type design places a raised structure in the flow path, while the straight-through design provides a more open passage.
The result depends on valve size, body design, opening position, flow rate, viscosity, solids behavior and the overall piping layout. As a design-level selection tendency, straight-through valves are stronger candidates when low flow resistance is a controlling requirement.
In high-flow systems, long piping runs or systems with limited pump head margin, the added resistance of a raised-weir body can affect capacity, pump selection or operating margin. This should be reviewed before RFQ finalization rather than after installation.
Why Weir Type Usually Has Higher Flow Resistance
In a weir type diaphragm valve, the medium must pass over the raised saddle. That changes the flow path and can increase resistance compared with a straight passage. In throttling service, this can be acceptable or even useful because the valve geometry supports controlled restriction.
The risk appears when the process needs high flow capacity or when the system has limited pressure available. If the valve is selected only by size and material, without checking body design, the installed valve may create more pressure loss than expected.
Why Straight-Through Usually Supports Higher Flow Capacity
A straight-through diaphragm valve provides a more direct flow path. With less internal obstruction, it is a stronger starting point for services where flow capacity and pressure drop matter more than fine throttling behavior.
This is why straight-through designs are often considered for slurry, viscous media, pulps, wastewater streams, and process fluids with suspended solids. The open path helps the medium pass through the valve with fewer internal restrictions, but final capacity still needs to be checked against flow rate, valve size and manufacturer data.
Why This Is Not a Cv Calculation Page
This article explains design-level differences. It does not calculate Cv, pressure loss or final valve sizing. For a real project, the required flow rate, allowable pressure drop, fluid density, viscosity, solids content, operating pressure and temperature should be checked against the manufacturer’s datasheet and project specification.
A good rule for RFQ preparation is simple: if pressure drop matters, do not specify only “diaphragm valve.” Confirm whether the body design must be weir type or straight-through, and request the flow data needed to verify the selection.
When the comparison moves from design tendency to sizing, use the diaphragm valve sizing guide to review Cv, ΔP and flow envelope instead of expanding this article into a calculation page.
For general background on how valve flow coefficient relates flow capacity to pressure drop, see this flow coefficient reference; the current article should still keep Cv calculation outside the main scope.
Drainability, Solids Handling and Cleaning Risk
Drainability and solids behavior are often more important than the general valve name. A raised weir may be acceptable for clean or controlled service, but it can become a retention point in slurry, viscous media, fibrous media or intermittent flow. A straight-through body is usually easier to justify when the process medium must pass through the valve with minimal internal obstruction.
Retention Pocket and Dead Zone Considerations
A retention pocket is an area where process fluid, solids or residue may collect. In a weir type body, the raised saddle can create a local area where heavier particles or sticky media may slow down or settle, depending on flow velocity and fluid properties.
The area around the raised weir can become a low-flow retention zone in intermittent, low-velocity or solids-laden service. In those conditions, sludge, fibers, crystallizing media or abrasive particles may accumulate around the saddle, increasing cleaning demand and possibly local wear.
This does not automatically disqualify a weir type valve. Many weir type diaphragm valves are used successfully in chemical and industrial services. The point is that retention risk must be reviewed when the service contains solids, fibers, sludge, crystallizing fluids or viscous material.
Slurry, Viscous Fluid and Suspended Solids
Straight-through diaphragm valves are stronger candidates for:
- slurry service;
- suspended solids;
- viscous liquid;
- pulp or fibrous media;
- sludge or wastewater media;
- powder-containing process flow;
- services where buildup on a raised saddle is a concern.
The selection still needs engineering review. Solids size, concentration, abrasiveness, velocity, lining material, diaphragm material and cleaning method all affect final suitability.
For abrasive or erosive solids, the body design should be reviewed together with liner wear resistance, flow velocity and diaphragm durability, because an open passage alone does not solve abrasion risk.
Cleaning and Self-Cleaning Claims: What to Verify
Some straight-through diaphragm valves are described as easier to clean or more self-cleaning because the flow path is less obstructed. This can be a useful advantage, but it should not be treated as a universal guarantee.
Before accepting a cleaning claim, verify:
- whether the valve is installed in the correct orientation;
- whether the medium can settle when flow stops;
- whether the body has low points or retention areas;
- whether the lining and diaphragm are compatible with cleaning fluid;
- whether the cleaning procedure matches the process requirement.
For dirty or solids-laden service, the body design should be reviewed together with piping layout, flushing practice and maintenance access.

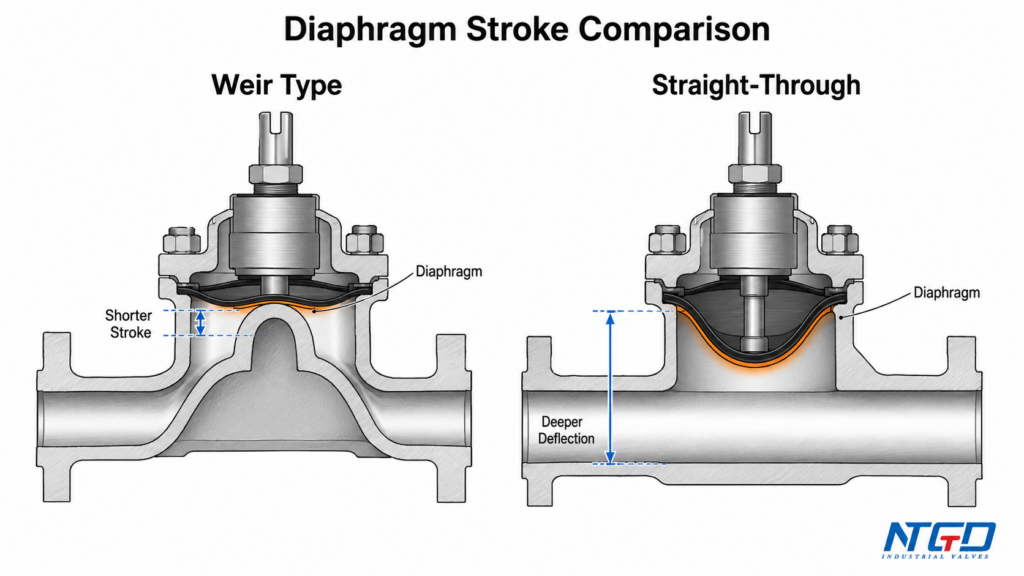

Diaphragm Stroke, Stress, Life and Material Compatibility
The body design also changes how far the diaphragm must move. This is one of the most important technical differences between weir type and straight-through diaphragm valves.
A weir type valve usually needs a shorter diaphragm stroke because the diaphragm closes against a raised weir. A straight-through valve often requires deeper diaphragm deflection because the diaphragm must close across a more open passage.
Shorter Stroke and Lower Diaphragm Stress in Weir Type
Shorter diaphragm movement can reduce repeated flexing. This is why weir type diaphragm valves are often associated with better diaphragm life in suitable services. The shorter stroke can also make the design more suitable for certain stiffer diaphragm materials.
This is especially relevant when the service requires PTFE, fluoropolymer or chemically resistant diaphragm materials. These materials may not flex in the same way as softer rubber compounds. The exact compatibility depends on the valve design and manufacturer’s diaphragm construction.
Deeper Deflection and Flexibility Requirement in Straight-Through
In a straight-through design, the diaphragm may need greater travel to close the flow passage. This can increase diaphragm flexing and may require a more flexible diaphragm material.
This is not a reason to reject straight-through designs. It is a reason to verify diaphragm material carefully. A straight-through body may be the correct choice for slurry or low pressure drop service, but the diaphragm material must match the stroke, chemical condition, temperature, pressure differential and operating frequency.
PTFE, Rubber and Fluoropolymer Diaphragm Boundary
| Diaphragm / Lining Topic | Weir Type Fit | Straight-Through Fit | What to Confirm | Main Risk if Misapplied |
|---|---|---|---|---|
| PTFE diaphragm | Often easier to apply because of shorter stroke | May be limited depending on design | Confirm diaphragm construction, rated flexing range, valve size, pressure / temperature boundary and operating frequency | Over-flexing, cracking or reduced cycle life |
| Rubber diaphragm | Common in many services | Often suitable where flexibility is required | Confirm chemical, temperature and abrasion resistance | Swelling, chemical attack or abrasion damage |
| Fluoropolymer diaphragm | Often used in corrosive chemical service | Must be checked carefully if deep flexing is required | Confirm flexing limit and service compatibility | Flex fatigue or chemical / temperature mismatch |
| Rubber lining | Can support corrosive or abrasive services | Can support slurry or dirty media depending on design | Confirm lining material against medium, velocity and solids | Local erosion, swelling or lining damage |
| PTFE / fluoropolymer lining | Useful for corrosive service | Useful but must be checked with body design | Confirm lining continuity, service temperature and cleaning method | Chemical attack at weak points or lining damage |
| Diaphragm life | Often supported by shorter travel | Depends strongly on flexing and service severity | Confirm maintenance expectation, operating frequency and cycle duty | Premature replacement under high-cycle or severe service |
For a deeper review of PTFE, EPDM, FKM and diaphragm service limits, use the diaphragm material selection guide together with the project medium, temperature, cycle duty and body design.
For general PTFE property context, this PTFE material property reference helps explain why chemical resistance, mechanical behavior and processing grade must be considered separately.
The safe specification approach is to review body design, diaphragm material and lining material together. Selecting one without the others can lead to premature diaphragm wear, chemical compatibility issues, reduced cycle life or poor service performance.
Throttling, On-Off Service and Control Behavior
The weir type and straight-through designs also differ in control behavior. A weir type body is usually stronger for throttling and flow regulation. A straight-through body is usually stronger for full-flow on-off service, especially when the process needs low resistance and open passage flow.
When Weir Type Is Usually Better for Throttling
A weir type diaphragm valve can provide more stable flow restriction because the diaphragm moves toward a raised saddle. This makes it a better candidate when the valve needs to modulate flow rather than only open or close.
Typical weir-type selection drivers include:
- controlled chemical dosing;
- services needing repeatable partial opening;
- clean or moderately clean process fluids;
- applications where diaphragm stroke and material compatibility are important;
- systems where pressure drop is acceptable.
A weir type valve should still be checked against the project’s control requirement. It is not a replacement for every control valve application, and exact behavior depends on valve design, actuator selection and the required control range.
When Straight-Through Is Usually Better for Full-Flow On-Off Service
A straight-through diaphragm valve is usually selected when the process needs open passage flow. It is often a better fit for on-off isolation where the valve is normally fully open or fully closed.
Typical straight-through selection drivers include:
- slurry or suspended solids;
- high-viscosity fluids;
- lower pressure drop requirement;
- higher flow capacity;
- media where a raised weir may create retention or buildup risk.
If the service requires frequent throttling or precise control, a straight-through valve should be reviewed carefully before selection. Straight-through geometry may not provide the same repeatable restriction in partial-open positions as a raised-weir design.
Service Selection Matrix for Weir Type vs Straight-Through Diaphragm Valves
A practical selection decision should begin with the service condition, not only the valve name. The matrix below converts common process conditions into a starting selection direction.
Selection by Media, Solids and Viscosity
| Service Condition | Weir Type Direction | Straight-Through Direction | RFQ Note |
|---|---|---|---|
| Clean corrosive liquid | Often suitable | Also possible if low pressure drop is needed | Confirm diaphragm and lining chemical compatibility |
| Slurry with suspended solids | Review carefully for buildup risk | Often stronger candidate | Provide solids %, particle size, abrasion tendency and liner requirement |
| Viscous fluid | May create flow resistance | Often stronger candidate | Provide viscosity, flow rate and cleaning requirement |
| Fibrous media or pulp | May retain fibers near the weir | Often stronger candidate | Confirm fiber length, flushing method and buildup risk |
| Crystallizing or scaling fluid | Retention areas must be reviewed | May reduce obstruction risk | Confirm flushing method, shutdown condition and maintenance plan |
| Abrasive media | Depends on lining and velocity | Often considered for open passage | Confirm liner wear resistance, velocity and solids severity |
| Low-solids chemical service | Often suitable | May be selected for flow capacity | Confirm pressure drop, diaphragm material and lining material |
| Dirty wastewater service | Check retention and cleaning risk | Often better fit | Confirm solids, sludge behavior and flushing practice |
Selection by Pressure Drop, Cleaning and Maintenance
| Requirement | Weir Type Direction | Straight-Through Direction | RFQ Note |
|---|---|---|---|
| Low pressure drop | May be less suitable | Usually stronger | Provide allowable pressure drop and required flow rate |
| Higher flow capacity | May be limited | Usually stronger | Provide flow rate, pipe size and system pressure margin |
| Easy passage of solids | Review carefully | Usually stronger | Provide solids content, particle size and abrasion tendency |
| Frequent throttling | Usually stronger | Review carefully | Confirm modulation duty, actuator requirement and control range |
| Lower diaphragm flexing | Usually stronger | Review diaphragm stress | Provide operating frequency and expected cycle duty |
| Cleaning / flushing | Review body retention points | Often easier to justify | Provide cleaning procedure, flushing fluid and shutdown condition |
| Maintenance interval priority | May support diaphragm life | Depends on service severity | Confirm diaphragm replacement expectation and access requirement |
Selection by Diaphragm and Lining Material
| Material / Construction Requirement | Weir Type Direction | Straight-Through Direction | RFQ Note |
|---|---|---|---|
| PTFE diaphragm | Often suitable with shorter stroke | Must be verified carefully | Confirm flexing range, diaphragm construction and cycle frequency |
| Rubber diaphragm | Common option | Often suitable where flexing is needed | Confirm chemical, temperature and abrasion fit |
| Fluoropolymer diaphragm | Often used in corrosive service | Depends on stroke and design | Confirm flexing range, chemical resistance and temperature boundary |
| Rubber lining | Common in corrosive / abrasive service | Common in dirty or slurry service | Confirm lining grade, velocity and solids severity |
| PTFE / fluoropolymer lining | Useful for chemical service | Useful but design must be reviewed | Confirm temperature, media and cleaning fluid |
| Abrasion-resistant lining | May be required | May be required | Confirm solids behavior, velocity and wear expectation |
Selection Red Flags: When Not to Choose Each Design
| Service Condition | Avoid Weir Type When… | Avoid Straight-Through When… | Reason |
|---|---|---|---|
| Heavy slurry | The raised weir may collect solids | Not usually the first concern | The raised saddle can become a retention point, leading to buildup, blockage tendency or local wear |
| Strict low pressure drop | Flow resistance over the weir is unacceptable | The design still must be sized correctly | Body geometry affects pressure loss and may influence pump head margin |
| Precise throttling | Weir type may still be suitable | Straight-through may not give stable control | Straight-through geometry can be less repeatable in partial-open positions |
| PTFE diaphragm priority | Weir type may be preferred | Deep deflection may limit use | Stiffer diaphragms must be checked against stroke and flexing limits |
| Maximum diaphragm life priority | Weir type may reduce flexing | Straight-through may increase diaphragm movement | Greater stroke can increase cyclic stress and replacement risk |
| Dirty but chemically aggressive fluid | Check lining and retention risk together | Check lining and diaphragm flexibility together | Both body design and wetted material selection control service life |
RFQ and Specification Checklist Before Choosing the Body Design
Before selecting between a weir type and a straight-through diaphragm valve, the RFQ should collect enough process information to avoid choosing by valve name alone.
Process and Media Data to Confirm
| RFQ Data | Why It Matters |
|---|---|
| Medium name | Determines chemical compatibility |
| Solids content | Affects retention, clogging and abrasion risk |
| Solids size | Helps judge whether a raised weir may create buildup |
| Viscosity | Affects flow resistance and cleaning |
| Flow rate | Required for sizing and pressure drop review |
| Pressure drop tolerance | Helps choose between weir and straight-through |
| Temperature | Affects diaphragm and lining material |
| Operating pressure | Affects body, diaphragm and end connection selection |
| Cleaning / flushing method | Affects drainability and retention risk |
Valve Construction Data to Confirm
| RFQ Data | Why It Matters |
|---|---|
| Body design | Confirms weir type or straight-through |
| Valve size | Must match pipe and flow requirement |
| Body material | Must match process and external environment |
| Lining material | Protects the wetted body from corrosion or abrasion |
| Diaphragm material | Controls sealing, flexibility and chemical compatibility |
| End connection | Must match piping specification |
| Pressure / temperature rating | Must meet project conditions |
| Face-to-face / installation constraint | Helps avoid site fit problems |
Operation, Maintenance and Documentation Data to Confirm
| RFQ Data | Why It Matters |
|---|---|
| Manual or actuated operation | Affects control and automation |
| On-off or throttling duty | Directly affects body design choice |
| Operating frequency | Affects diaphragm fatigue |
| Maintenance access | Affects diaphragm replacement planning |
| Required inspection records | Supports project documentation |
| Applicable project specification | Prevents mismatch with piping class |
| Preferred spare diaphragm material | Supports lifecycle planning |
| Service priority | Clarifies whether flow, control, drainability or material life is most important |
A complete RFQ should not simply ask for “diaphragm valve.” It should define the body design requirement or provide enough service data for the supplier to recommend the correct design.
FAQ
What is the main difference between a weir type and a straight-through diaphragm valve?
The main difference is the valve body flow path. A weir type diaphragm valve has a raised saddle inside the body, and the diaphragm seals against that raised area. A straight-through diaphragm valve has a more open, straighter flow passage without the raised weir. This changes pressure drop, flow capacity, solids handling, diaphragm stroke and material selection.
What is a weir type diaphragm valve?
A weir type diaphragm valve is a diaphragm valve with a raised weir or saddle in the body. The diaphragm closes against this raised sealing surface. It is often selected for controlled flow, throttling, chemical service and applications where shorter diaphragm travel is useful.
What is a straight-through diaphragm valve?
A straight-through diaphragm valve is a diaphragm valve with a straight or more open flow path. It does not use the raised weir found in weir type designs. It is often selected for lower pressure drop, higher flow capacity, slurry, viscous fluids and suspended solids.
Which design is better for slurry or solids?
A straight-through diaphragm valve is generally the stronger starting point for slurry, viscous media and suspended solids because the flow path is less obstructed. However, it is not automatically suitable for every dirty service. Solids size, concentration, abrasiveness, lining material, diaphragm material, velocity and cleaning practice must still be reviewed.
Which design has lower pressure drop?
A straight-through diaphragm valve generally has lower pressure drop because it uses a more open flow passage. A weir type diaphragm valve normally creates more flow resistance because the fluid passes over a raised saddle. The actual pressure loss for a project still needs to be checked against valve size, flow rate, opening position, fluid properties and manufacturer flow data.
Which design is better for throttling?
A weir type diaphragm valve generally offers better throttling behavior because the diaphragm moves toward a raised weir, creating a more controlled restriction. This makes it a stronger starting point for modulation or controlled flow. The final choice should still be checked against the required control range, actuator arrangement, pressure drop tolerance and service condition.
Can a straight-through diaphragm valve use a PTFE diaphragm?
It depends on the manufacturer’s design and diaphragm construction. Straight-through designs often require deeper diaphragm movement, while PTFE and some fluoropolymer diaphragms are stiffer than many rubber materials. Larger sizes, higher pressure differential, deeper stroke or high-cycle operation can make the application more restrictive. Confirm the diaphragm construction, rated flexing range and project conditions before specification.
Is a straight-through diaphragm valve the same as a full-bore diaphragm valve?
The terms are closely related in many product descriptions because both refer to a more open flow passage compared with a raised-weir body. However, terminology can vary by manufacturer. For specification, confirm the actual body design, flow path and diaphragm construction rather than relying only on the name.
Final Fit Check for Weir Type vs Straight-Through Selection
Use the Body Design as a Service Decision
The best way to compare weir type vs straight-through diaphragm valves is to treat the body design as a service decision. The weir type design is usually stronger when sealing, throttling, shorter diaphragm stroke and certain diaphragm materials are important. The straight-through design is usually stronger when low pressure drop, high flow capacity, slurry, viscous media or solids passage is important.
The final decision should not be made from the valve name alone. It should be made from the service condition.
A wrong body design can create higher pressure loss, solids buildup, unstable throttling or shorter diaphragm service life, even when the valve size and material appear correct.
Send RFQ Conditions for Engineering Review
For an accurate diaphragm valve selection review, prepare the medium, solids content, viscosity, flow rate, pressure drop tolerance, drainability requirement, body material, lining material, diaphragm material, temperature, pressure, end connection, operation method, valve size and maintenance expectation.
With those details, NTGD Diaphragm Valve can review whether the application is better suited to a weir type diaphragm valve, a straight-through diaphragm valve, or a different diaphragm valve configuration.
Conclusion
A weir type diaphragm valve and a straight-through diaphragm valve may look similar from the outside, but their body geometry creates different engineering results. The weir type design uses a raised saddle, which supports compact sealing, shorter diaphragm movement and better throttling behavior. The straight-through design uses a more open passage, which usually supports lower pressure drop, higher flow capacity and better handling of slurry, viscous or solids-laden media.
For RFQ and project selection, the safest approach is to compare the actual service conditions against the body design, diaphragm stroke, diaphragm material, lining, pressure drop requirement and cleaning expectation. The right valve is not simply the one with the familiar name; it is the one whose body design matches the process.
Application / Specification Support
If you are not sure whether pressure drop margin, solids behavior or diaphragm material limits point toward a weir type or straight-through design, submit the service details for technical review before finalizing the RFQ.
If your project is comparing a weir type vs straight-through diaphragm valve, send the process medium, solids content, viscosity, required flow rate, pressure / temperature condition, cleaning requirement, diaphragm material preference, lining material, end connection and operation method. NTGD Diaphragm Valve can help review the body design that best balances pressure drop, diaphragm life, solids handling and maintenance requirements for your exact service conditions.
